Pre-DPI Filters

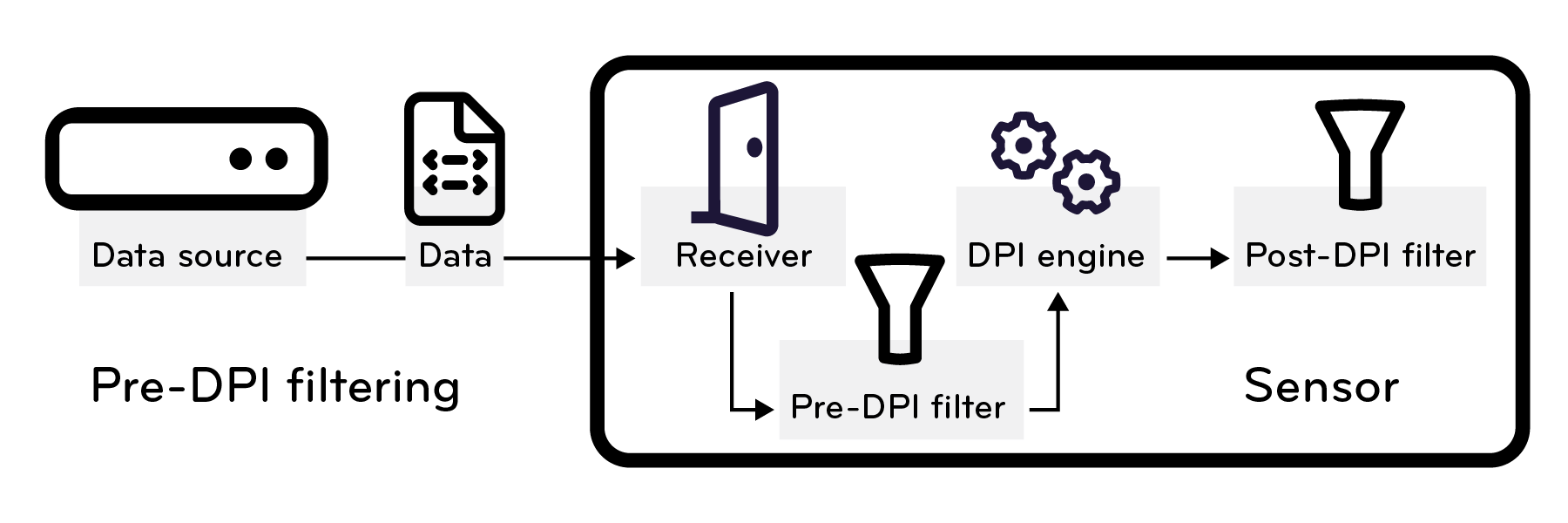

You can optimize sensor performance by filtering unnecessary traffic before doing Deep Packet Inspection (DPI). To configure this, you create a filter to accept or drop traffic based on the IP addresses, protocols, ports, and other packet attributes that are present in traffic. Unlike Traffic Filters, which apply rules after the DPI engine inspects all packets, pre-DPI filters streamline processing by discarding unnecessary data earlier. This reduces overhead and increases throughput.

The pre-DPI filter rules that Stellar Cyber uses are based on expressions that packet capture tools like tcpdump and Wireshark employ to define which network traffic to capture or exclude. Stellar Cyber follows the same syntax to determine which traffic to include or exclude before performing DPI, thereby conserving processing resources. For more information about filtering expressions and their syntax, see TCPDUMP & LIBPCAP.

Term	Definition	Usage in Stellar Cyber	Example
Expression	A statement in valid tcpdump syntax that defines one or more conditions for filtering traffic.	Multiple conditions in an expression are combined by using the operators and, or, and not.	src host 10.0.0.1 and src port 443 (one expression) dst host 192.168.1.1 (another expression)
Rule	A set of one or more expressions with a directive to Accept or Drop traffic.	Multiple rules in a filter are joined by using the operator or.*	(src host 10.0.0.1 and src port 443) or (dst host 192.168.1.1)

* In Stellar Cyber, you can create a filter by entering one or more rules, each on its own line, and letting Stellar Cyber implicitly add or between them, or you can define a rule by placing it inside parentheses and explicitly entering or between each parenthetically enclosed rule in a single line.

To access the Pre-DPI Filter option, select System | Sensor Profiles | Create | Add Modular Sensor Profile or Add Standard Sensor Profile and then enable Network Traffic and Traffic Filtering. You can also access it by editing a previously created sensor profile.

Common Pre-DPI Filter Rules

Depending on the action you choose—Accept or Drop—the following rules define traffic attributes that must be present for a Stellar Cyber sensor to either accept or drop traffic before performing Deep Packet Inspection (DPI).

Filter by IP Address

This rule matches traffic originating from 10.36.22.54:

src host 10.36.22.54

This rule matches traffic destined for 192.168.1.1:

dst host 192.168.1.1

This rule matches traffic from or to 192.168.1.112:

host 192.168.1.112

The behavior of a rule in a pre-DPI filter is different if you specify the source or destination for host, ip, or port or if you don’t specify it. The different behaviors depend on whether the traffic is sensor-initiated or pass-through:

• Sensor-initiated traffic: src { host | ip | port } and dst { host | ip | port } do not take effect. Use host, ip, or port, which applies regardless of direction.

• Pass-through traffic: src { host | ip | port } and dst { host | ip | port } work correctly, filtering based on traffic source or destination. host, ip, and port also work and are applied whether they are the source or destination.

Filter by Network Range (CIDR)

This rule matches traffic for the entire 192.168.1.0/24 subnet:

net 192.168.1.0/24

Filter by Protocol

This rule matches only TCP packets:

tcp

This rule matches only UDP packets:

udp

Filter by Port

This rule matches traffic on port 443 (HTTPS):

port 443

This rule matches traffic sent to port 22 (SSH):

dst port 22

Combine Conditions and Rules with Logical Operators

When using the Pre-DPI filter in Stellar Cyber, you can enter one or more filtering rules in a single line and in multiple lines:

• Single line, where you enter a valid expression to express one or more rules and explicitly join them by entering the logical operator or between parenthetically enclosed rules.

• Multiple lines, where each new line represents one or more rules and each line is implicitly joined by or within the filter.

Understanding how these operators work is essential for creating effective filters:

• When you combine conditions using and, all specified conditions must be met for the rule to apply.

• When you combine conditions using or, the rule applies if any of the conditions are met.

• When you combine conditions using not, the rule excludes traffic that matches the specified condition.

  Use not at the beginning of a rule to negate the entire condition. Use and not within an expression to match the first condition but exclude the second.

When entering one or more rules in a single line, you can combine multiple conditions with and, or, or not in a parenthetically enclosed rule and then combine these rules with or.

When entering rules on separate lines, you can combine multiple conditions with and, or, or not on each line. The filter then automatically joins all rules with or.

With either approach—rules enclosed in parentheses and explicitly joined by or or rules entered individually on their own lines and implicitly joined by or--traffic matches the filter if it meets the conditions defined in any of its rules.

Filters do not work if the operators are uppercase AND, OR, NOT. They must be lowercase and, or, not to take effect.

Example: Create a Filter with Two Rules

In this example, you want to drop HTTP and HTTPS traffic (ports 80 and 443) from 10.0.0.1 and all traffic from 10.0.0.2. After setting the action as Drop, create a filter consisting of either two rules in the same line or two individual rules on separate lines.

Option 1: Use a single line

If you prefer entering both rules on a single line, put each rule in parentheses and explicitly set or as the logical operator between them:

(src host 10.0.0.1 and (src port 80 or src port 443)) or (src host 10.0.0.2)

These rules state that traffic from 10.0.0.1 is only dropped if it is on port 80 or 443 while all traffic from 10.0.0.2 is dropped regardless of port.

Option 2: Use multiple lines

Instead of entering multiple rules on a single line, you can enter each rule on its own line:

src host 10.0.0.1 and (src port 80 or src port 443)

src host 10.0.0.2

The rules in the second option achieve the same result as those in the first option, while making the filter a little easier to read.

Example: Create a Filter with Three Rules

In this example, you want to accept TCP traffic from the 192.168.1.0/24 network, all traffic except SSH (port 22) from 10.0.0.5, and all traffic destined for 172.16.0.1 regardless of source or protocol. After setting the action as Accept, create a filter consisting of either three rules on a single line or three individual rules on separate lines.

Option 1: Use a single line

If you prefer entering all three rules on the same line, put each rule in parentheses and explicitly set or as the logical operator between them:

(net 192.168.1.0/24 and tcp) or (src host 10.0.0.5 and not port 22) or (dst host 172.16.0.1)

By enclosing each rule in parentheses and joining the rules with or, the filter ensures that traffic is accepted if it matches any of the rules.

Option 2: Use multiple lines

Instead of entering all three rules on a single line, you can enter each rule on its own line:

net 192.168.1.0/24 and tcp

src host 10.0.0.5 and not port 22

dst host 172.16.0.1

The rules in the second option achieve the same result as those in the first, while making the individual rules that constitute the filter a little clearer to read.
