ATH Example: Half-Opened Sessions
Create an Automated Threat Hunting (ATH) playbook to detect devices that formed unusually high numbers of half-opened sessions in a short period of time. A surge in half-opened sessions over a limited timeframe might indicate unstable communication behavior, misconfigured services, or the early stages of malicious activity. This example shows how to query traffic records for these patterns and configure the playbook to trigger when thresholds are exceeded.

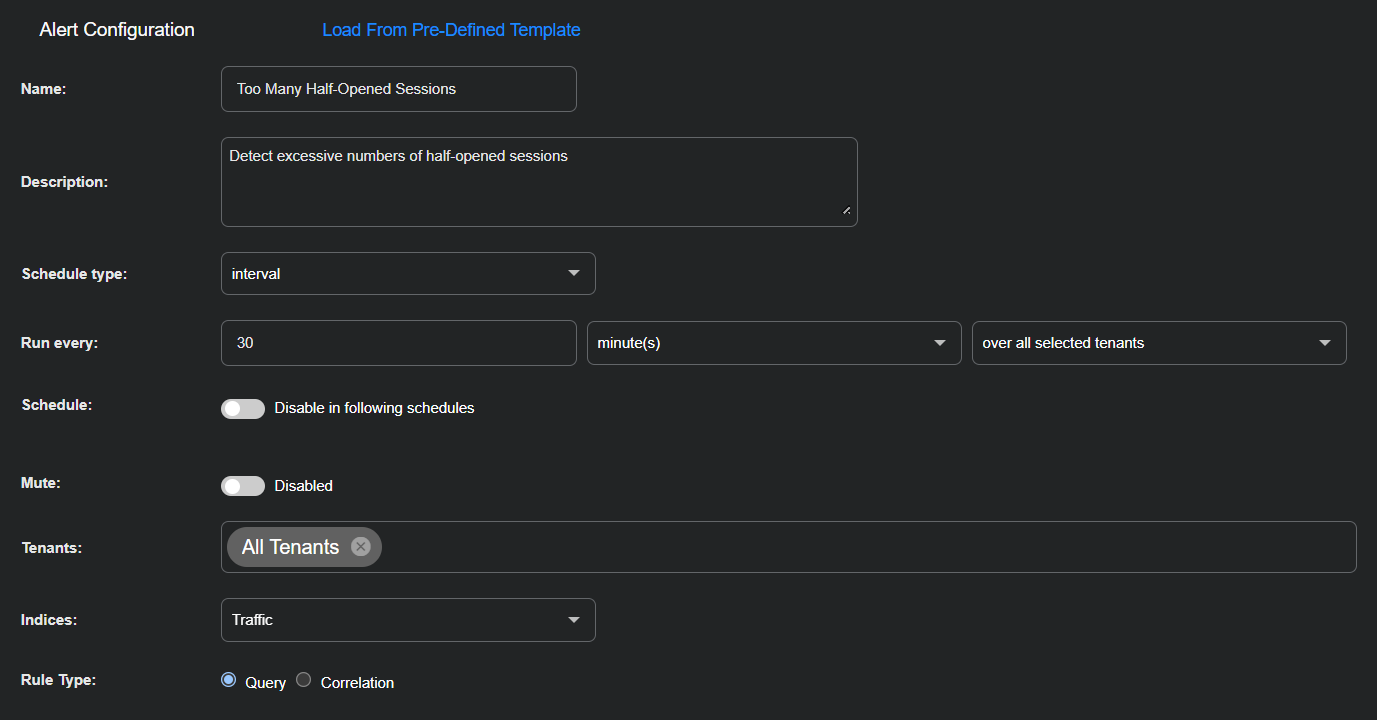

Configure the Alert
Set up the alert to run at regular intervals so that the playbook can consistently identify devices exhibiting suspicious connection behavior. By querying for half-opened sessions every 30 minutes, you ensure timely detection of anomalies as they emerge in the network traffic.
To configure the alert:
-
Navigate to Automation | Automation and select the Create button to add a playbook.
-
Enter the following in the Alert Configuration section:
Name: Too Many Half-Opened Sessions
Description: Detect excessive numbers of half-opened sessions
Schedule type: interval
Run every: 30 minute(s) over all selected tenants
Schedule: Toggle off (default setting)
Mute: Toggle off (default setting)
Tenants: All Tenants
Indices: Traffic
Rule Type: Query

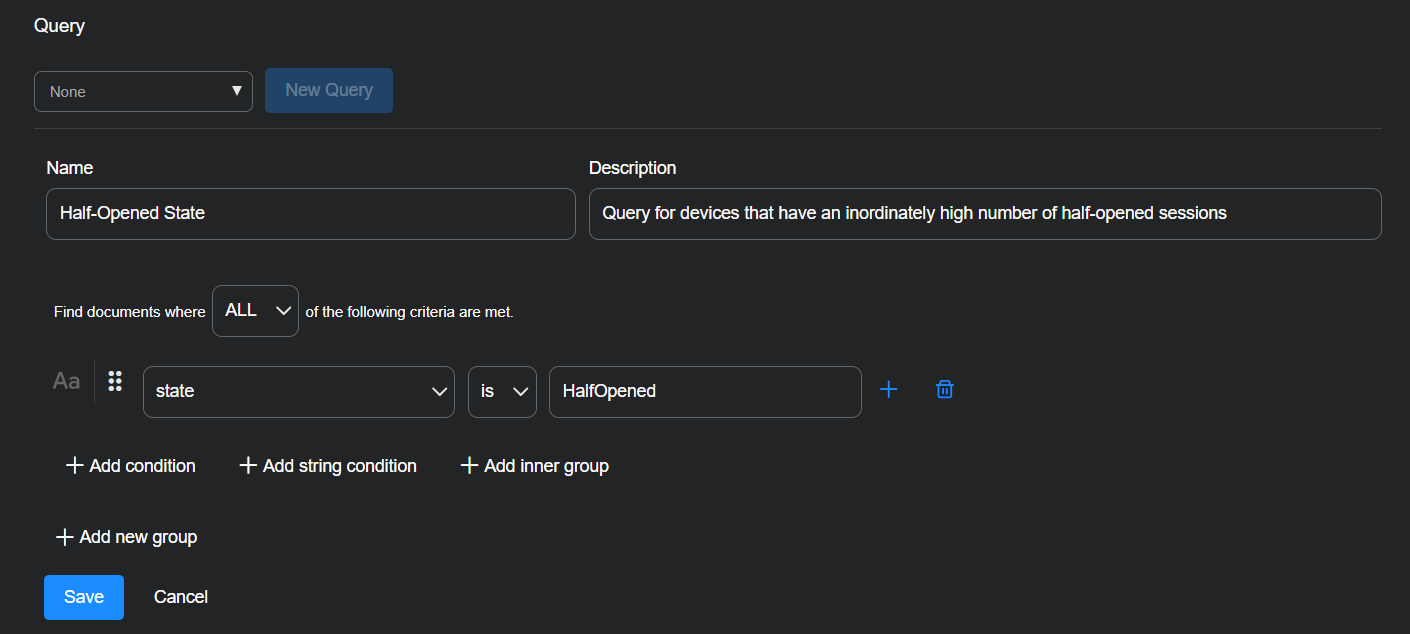

Build a Query
Construct a query that identifies traffic in the half-opened state. This state occurs when a connection attempt is initiated but not completed—behavior that might suggest misconfigurations, network instability, or evasion tactics. To keep the query results manageable and actionable, limit the number of source IP addresses returned to the top 1,000 by frequency.
-
Select New Query.
-
Enter the following and then select Save:
Query Name: Half-Opened State
Description: Query for devices that have an inordinately high number of half-opened sessions
Find documents where ALL of the following criteria are met.
Select + Add condition and enter state, is, HalfOpened.
-
Toggle Calculations on.
-
Select to add a calculation.
-
Enter the following:
Name: Top List
Calculation type: Top
Field to calculate on: srcip
Calculation By: count
Size: 1000

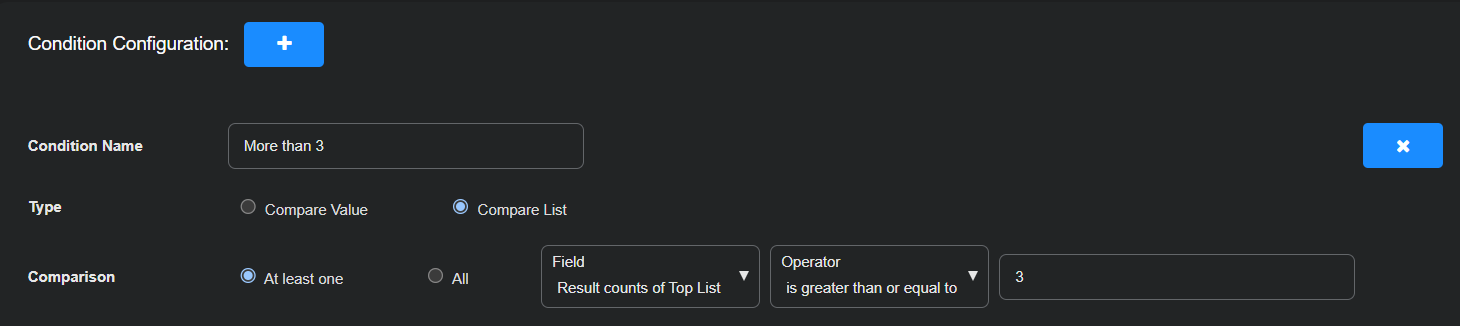

Configure a Condition
Define a threshold that indicates when the observed behavior merits attention. In this example, if the number of unique source IP addresses generating half-opened sessions exceeds three, the condition triggers. This allows actions to be taken only when the behavior appears persistent or widespread enough to justify investigation.
Condition Name: More than 3
Type: Compare List
Comparison: At least one, Result counts of Top List, is greater than or equal to, 3
Configure Actions
You can configure any number of actions to take place if your playbook gets the specified number of hits. Remember to set the Trigger on condition to the condition you created (which is automatically selected). In this example, it's More than 3.
See Configure Actions for details on configuring each type of action.
Save & Run the Playbook
Select Submit to save and immediately run the playbook.
The new playbook appears in the Automated Threat Hunting Playbooks list.
