Configuring FortiManager Connectors

You can connect Stellar Cyber to firewalls so that you can quickly and easily implement firewall rules on those firewalls from within Stellar Cyber, while you are threat hunting. You can configure firewall actions or manually trigger a firewall action from the event display. For either action you must already have your firewall connected.

Use FortiManager to manage multiple FortiGate firewalls.

Connector Overview: FortiManager

Adding a FortiManager Connector

To add a FortiManager connector:

1. Obtain credentials
2. Add the connector in Stellar Cyber
3. Test the connector

Obtaining FortiManager Credentials

Before you configure the connector in Stellar Cyber, you must obtain the following FortiManager credentials.

• Host Name—The IP address, FQDN, or subnet, for example, 10.1.1.5 or mysite.com.

• User Name and Password—The authentication credentials.

• Administrative Domain (ADOM)—The logical partition in FortiManager. By default, the ADOM is root.

• Source IP Group Name—The collection of source IP address objects.

• Destination IP Group Name—The collection of destination IP address objects

• Policy Package Name—The set of firewall rules (policies), address objects, groups, and settings. The policies can be installed on target devices or device groups.

Ensure the following:

• The source/destination IP groups exist and are associated with some blocking policy in FortiManager. Stellar Cyber checks if the address group or policy exists, but will not create one if the group is not found. The Policy Package must include policies that use Source IP Group as src address and Destination IP Group as dst address.

• The policy package exists. Also, ensure there is a policy inside the policy package that references the source/destination IP group.

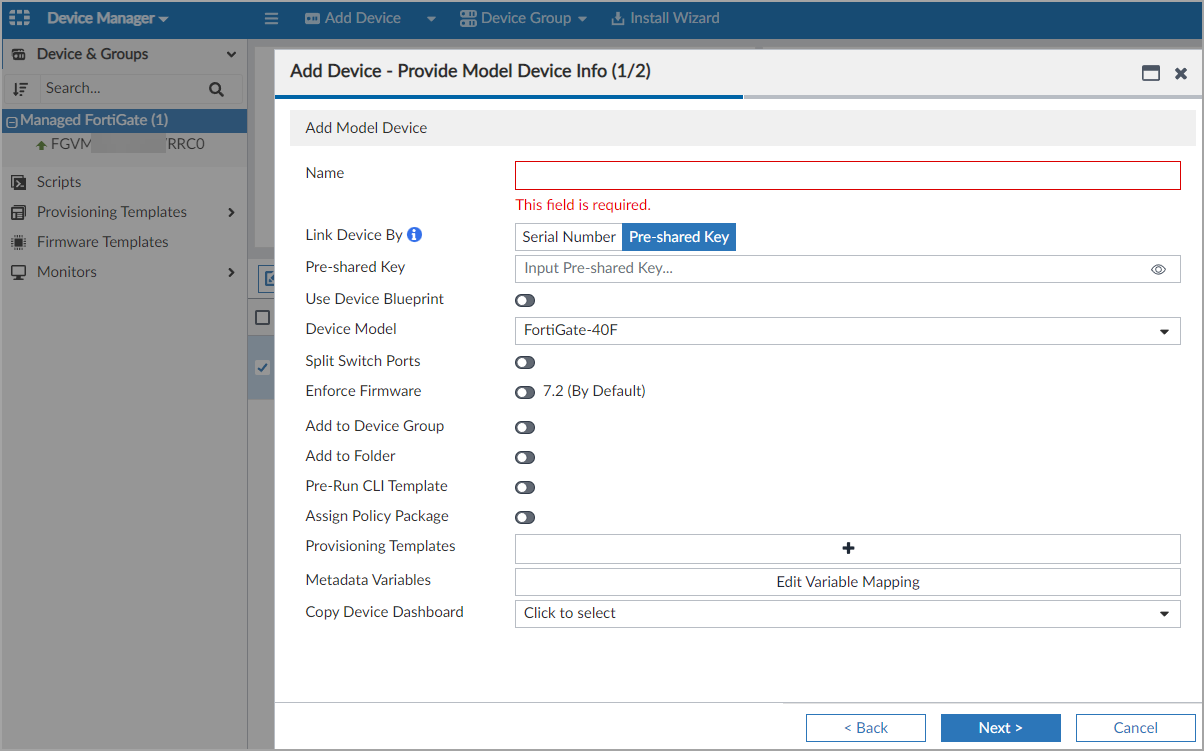

Adding a FortiGate to FortiManager

To add a FortiGate to the FortiManager, follow the guidance in the Fortinet documentation for Adding a model device.

1. In FortiManager, navigate to Device Manager > Device & Groups.

2. Click Add Device. The wizard opens.

3. To add a model device, enter a Name and provide the model device info.



4. Click Next in the wizard to continue adding the device.

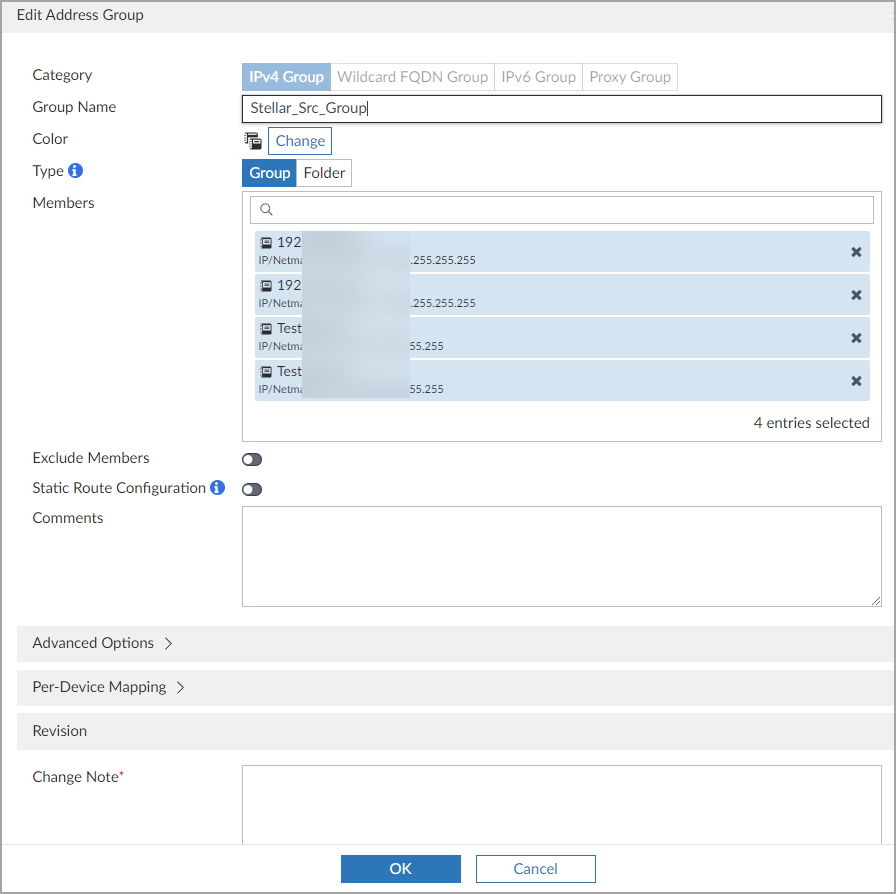

Creating a Source Address Group

To add a source address group, follow the guidance in the Fortinet documentation to Create or edit an address group.

1. Navigate to Create New > Address Group.

2. In the New Address Group window, enter a group name. In this example, it is Stellar_Src_Group.



3. For Members, select the addresses to add to the source address group.

4. Click OK.

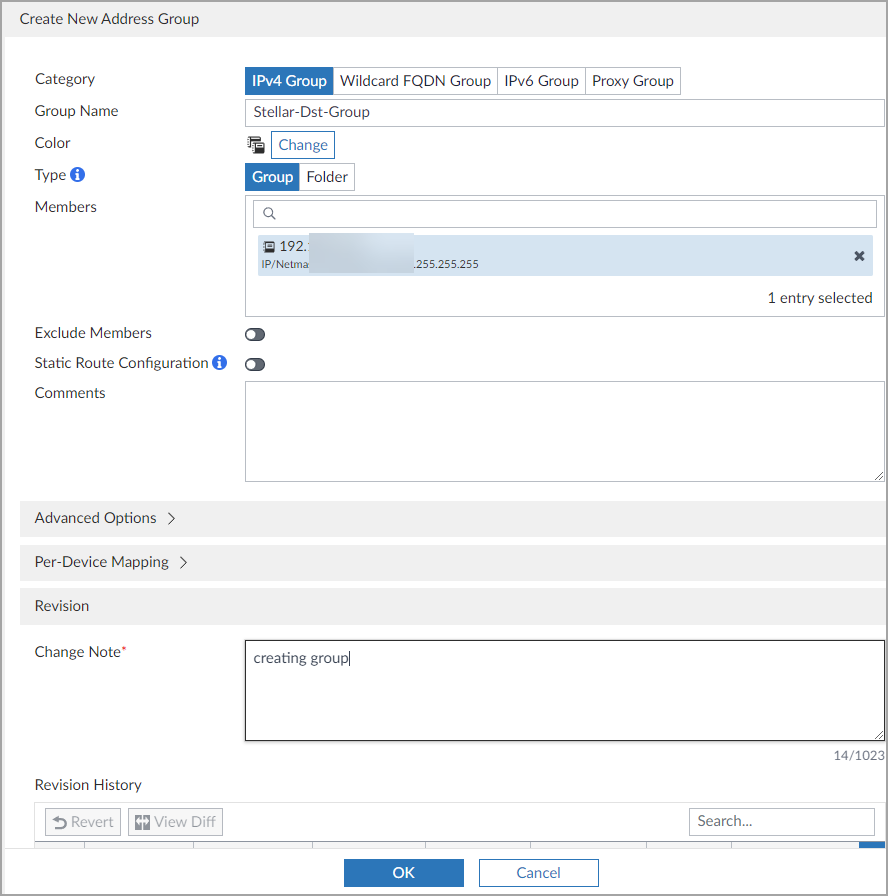

Creating a Destination Address Group

To add a destination address group, follow the guidance in the Fortinet documentation to Create or edit an address group.

1. Navigate to Create New > Address Group.

2. In the New Address Group window, enter a group name. In this example, it is Stellar_Dst_Group.



3. For Members, select the addresses to add to the destination address group.

4. Click OK.

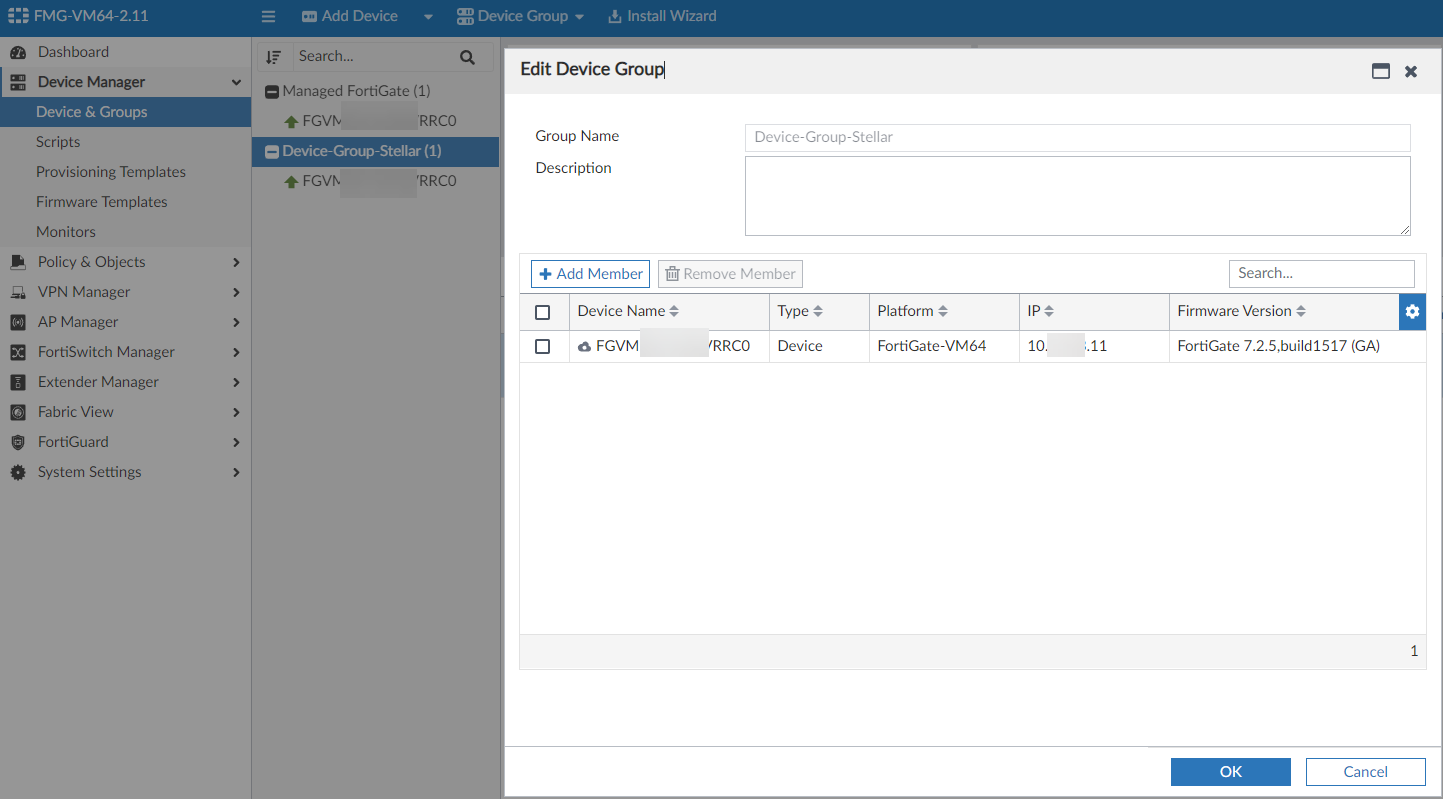

Creating a Device Group

To create a device group and add the FortiGate firewalls to it, follow the guidance in the Fortinet documentation to Add device groups.

1. Navigate to Device Manager > Device & Groups > Device Group > Create New.



2. Enter a Group Name. In this example, it is Device-Group-Stellar.

3. Click OK.

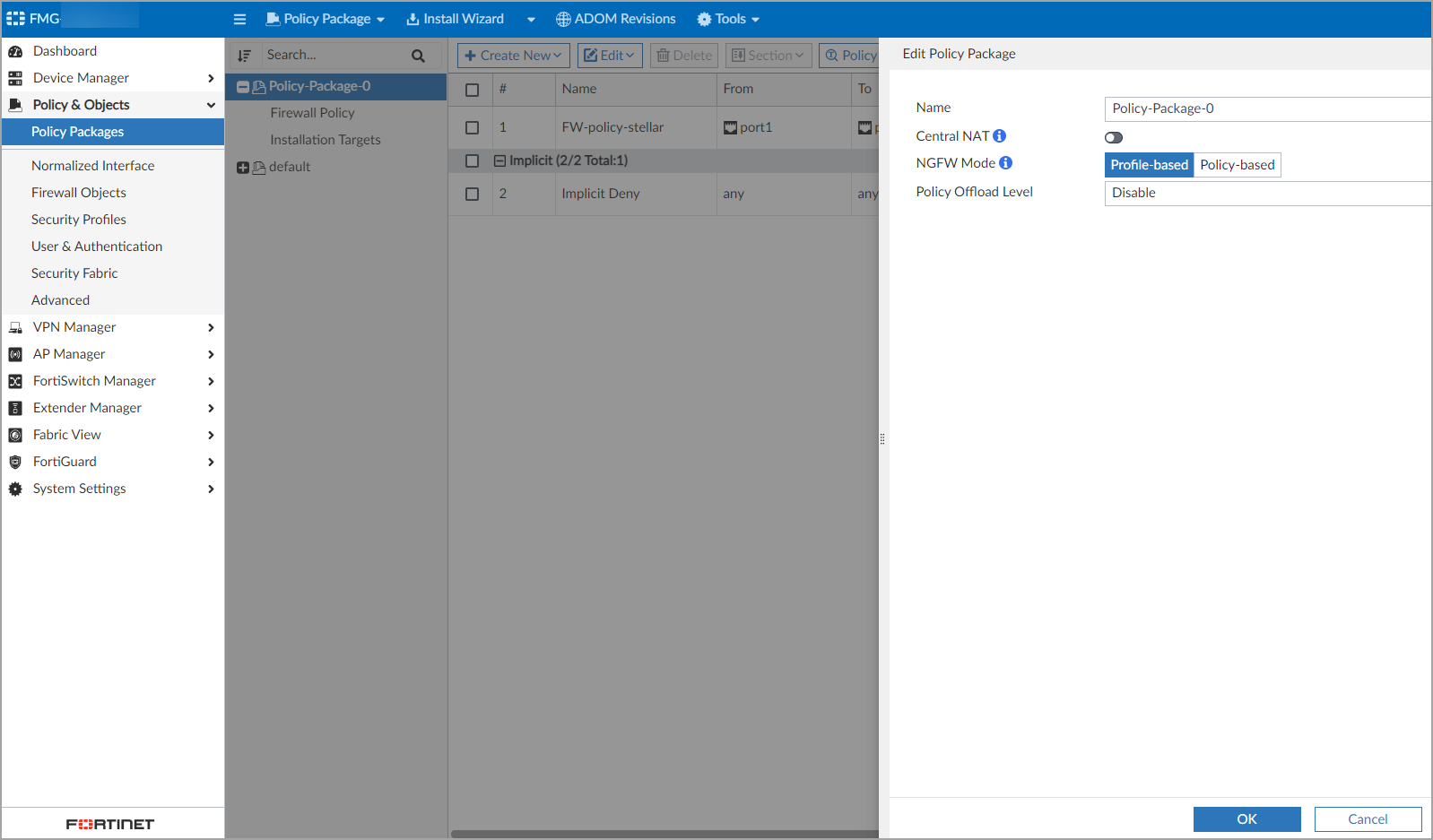

Creating a Policy Package

To create a policy package, follow the guidance in the Fortinet documentation to Create new policy packages.

1. Navigate to Policy & Objects > Policy Packages > Policy Package > New Package.



2. Enter a policy package Name. In this example, it is Policy-Package-0.

3. Click OK.

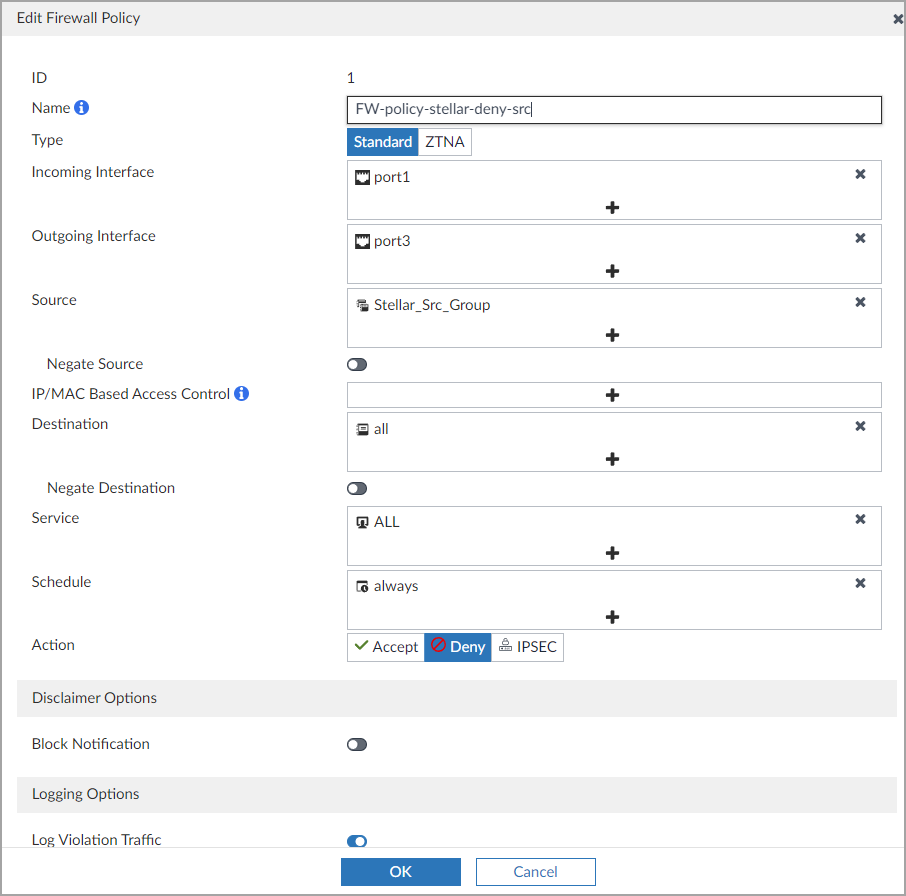

Creating a Firewall Policy for Source

To create a deny firewall policy for source, follow the guidance in the Fortinet documentation to Create New Firewall Policy.

1. Navigate to Policy & Objects > Policy Packages and select Firewall Policy.



2. Enter a firewall policy Name. In this example, it is FW-policy-stellar-deny-src.

3. Specify the Source. In this example, it is Stellar_Src_Group.

4. Specify the Action. In this example, it is Deny.

5. Provide the remaining required information.

6. Click OK.

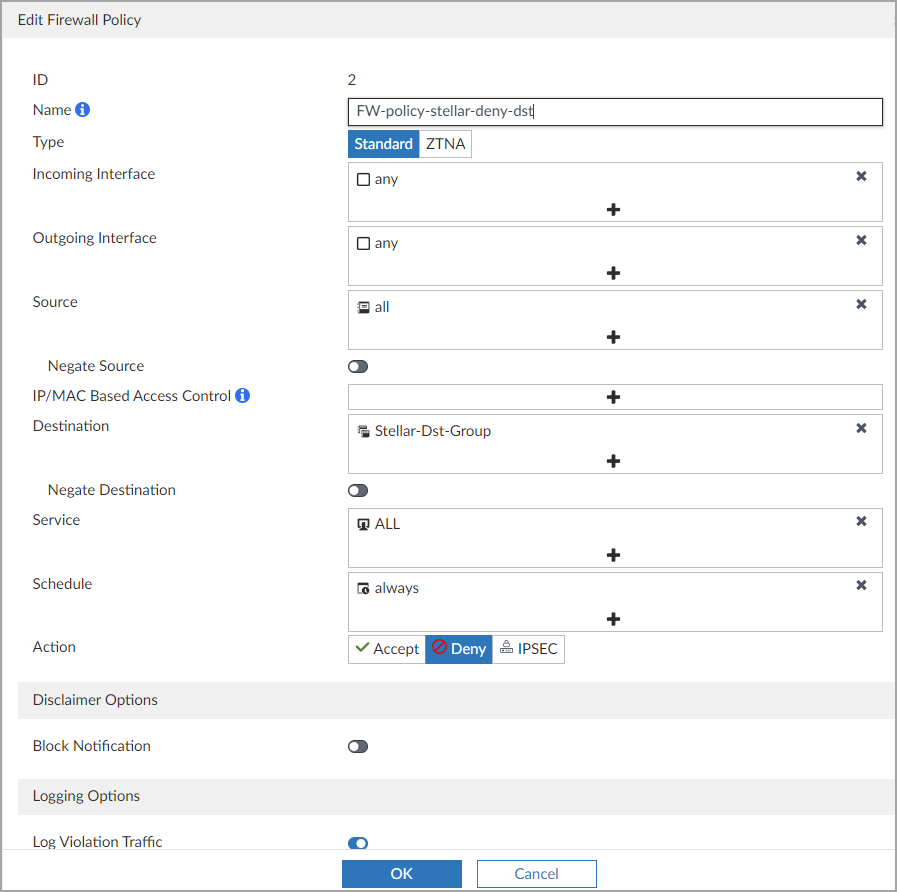

Creating a Firewall Policy for Destination

To create a deny firewall policy for destination, follow the guidance in the Fortinet documentation to Create New Firewall Policy.

1. Navigate to Policy & Objects > Policy Packages and select Firewall Policy.



2. Enter a firewall policy Name. In this example, it is FW-policy-stellar-deny-dst.

3. Specify the Source. In this example, it is Stellar_Dst_Group.

4. Specify the Action. In this example, it is Deny.

5. Provide the remaining required information.

6. Click OK.

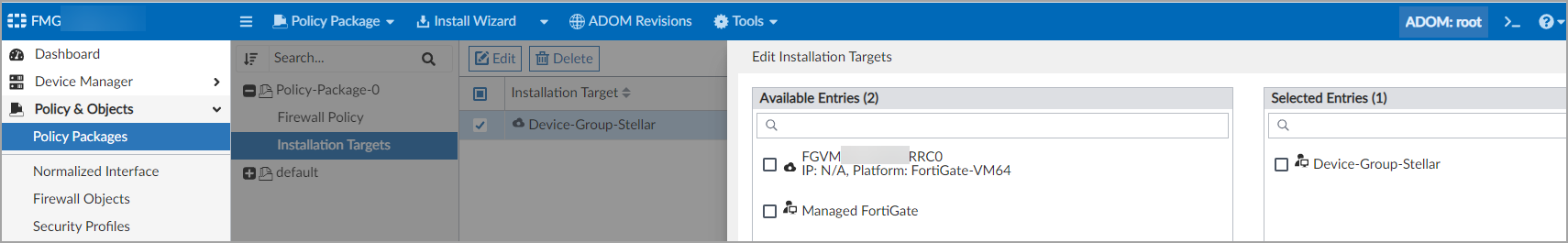

Creating an Installation Target

To create an installation target, follow the guidance in the Fortinet documentation for Policy package installation targets.

1. Navigate to Policy & Objects > Policy Packages and select Installation Targets.



2. Select the device group created previously. In this example, it is Device-Group-Stellar.

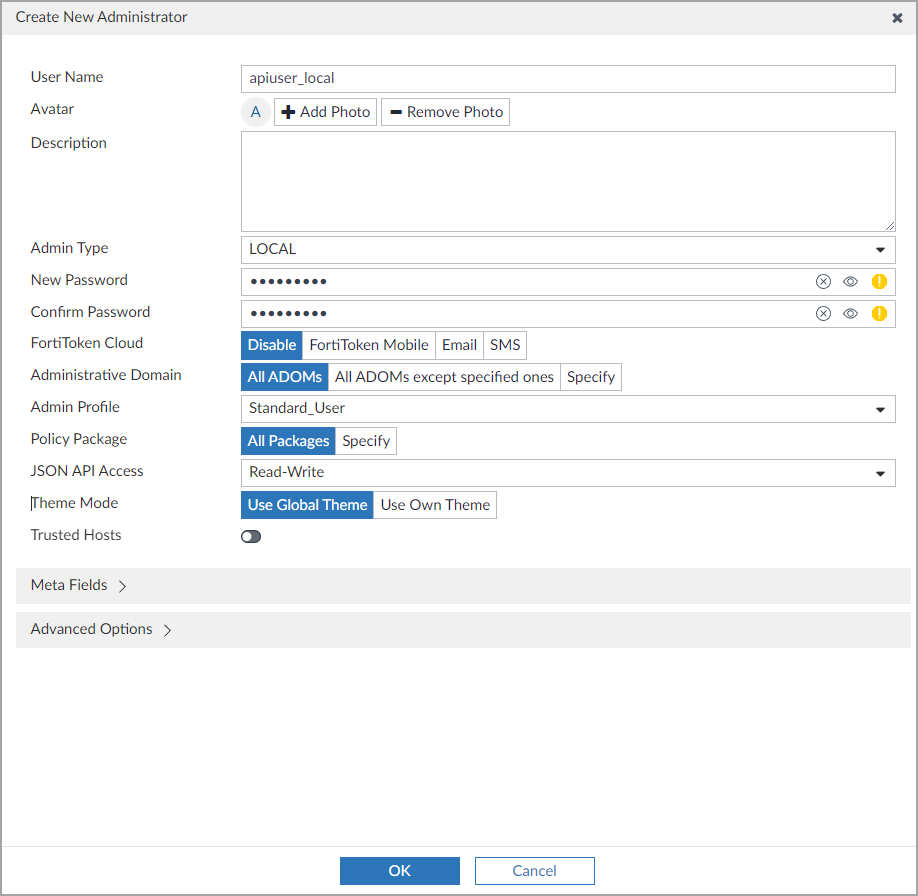

Creating a Local API User

To create a local API user, follow the guidance in the Fortinet documentation for Creating administrators.

1. Navigate to System Settings > Admin > Administrators and click Create New.



2. Enter a User Name, select an Admin Type, for example, LOCAL, enter and confirm a Password.

3. Provide the remaining required information.

4. Click OK.

Adding the Connector in Stellar Cyber

To add a new FortiManager connector in Stellar Cyber:

1. Log in to Stellar Cyber.

2. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.



3. Click Create and select Connector.

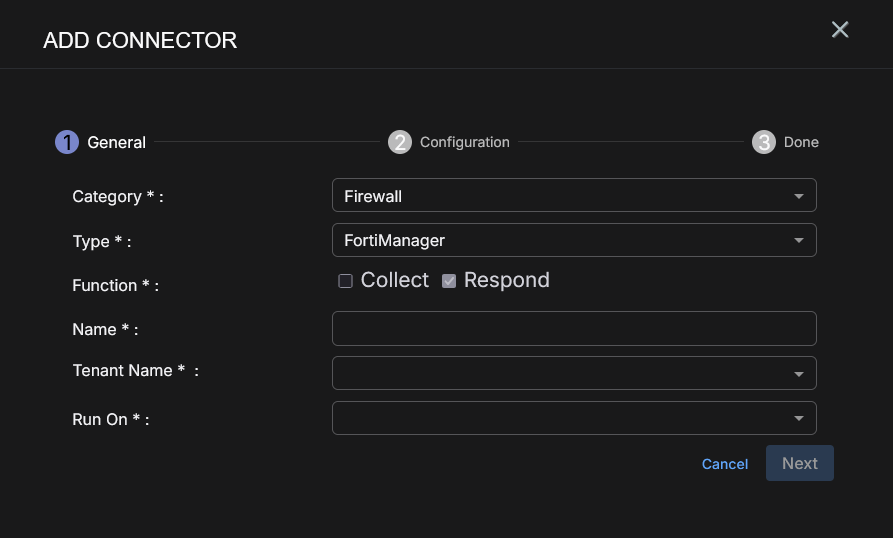

   The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

4. Choose Firewall from the Category dropdown.

5. Choose FortiManager from the Type dropdown.



   The asterisk (*) indicates a required field.

6. For this connector, the supported Function is Respond, which is enabled already.

7. Enter a Name.

   Notes:

   • This field does not accept multibyte characters.
   • It is recommended that you follow a naming convention such as tenantname-connectortype.

8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

9. Choose the device on which to run the connector.

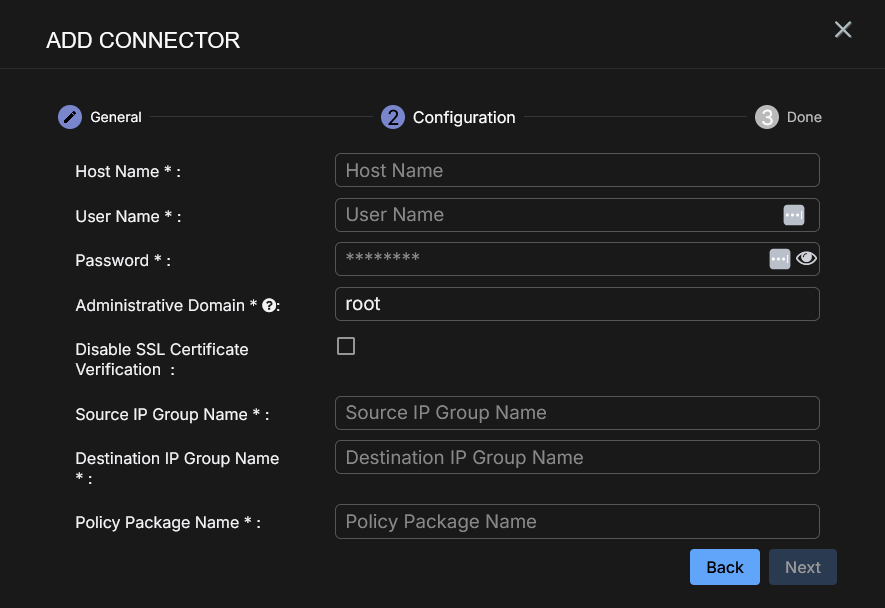

10. Click Next. The Configuration tab appears.



    The asterisk (*) indicates a required field.

11. Enter the Host Name you noted above in Obtaining FortiManager Credentials.

12. Enter the User Name you noted above.

13. Enter the Password you noted above.

14. Enter the Administrative Domain you noted above.

    Administrative Domain (ADOM) is a logical partition in FortiManager. By default, the ADOM is root.

15. (Optional) Click Disable SSL Certificate Verification if you want to disable SSL certificate verification. Only disable SSL certificates if you have a reason to, otherwise, it is not a good security practice.

16. Enter the Source IP Group Name you noted above.

17. Enter the Destination IP Group Name you noted above.

18. Enter the Policy Package Name you noted above.

19. Click Next. The final confirmation tab appears.



20. Click Submit.

The new firewall connector is immediately active.

Testing the Connector

In addition to testing for connectivity, the Test button for the FortiManager connector tests that the ADOM exists, the Source and Destination IP groups exist, the Policy Package exists, and the Policy Package includes policies that use Source IP Group as src address and Destination IP Group as dst address.

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates authentication and connectivity).

For connectors running on a sensor, Stellar Cyber recommends that you allow 30-60 seconds for new or modified configuration details to be propagated to the sensor before performing a test.

1. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.



2. Locate the connector by name that you added, or modified, or that you want to test.

3. Click Test at the right side of that row. The test runs immediately.

   Note that you may run only one test at a time.
