Configuring iManage Threat Manager Connectors

This connector allows Stellar Cyber to ingest logs from iManage Threat Manager and add the records to the data lake. It integrates with the iManage Threat Manager API to collect alerts from Behavioral Analytics and Detect and Protect, retrieving alerts from legal document management systems.

Stellar Cyber connectors with the Collect function (collectors) may skip collecting some data when the ingestion volume is large, which potentially can lead to data loss. This can happen when the processing capacity of the collector is exceeded.

Connector Overview: iManage Threat Manager

Adding an iManage Threat Manager Connector

To add an iManage Threat Manager connector:

1. Obtain credentials
2. Add the connector in Stellar Cyber
3. Test the connector
4. Verify ingestion

Obtaining iManage Threat Manager Credentials

Before you configure the connector in Stellar Cyber, you must obtain the following iManage Threat Manager credentials:

• Base URL—The base URL for API access. The default is https://example.tm-cloudimanage.com/example-api-path

• API Token Auth Method—The API Token authentication method:

  • API Token

  • API Secret

• User Sign-In Auth Method—The User Sign-In authentication method:

  • Username

  • Password

Follow the guidance in the documents: Integrating iManage Threat Manager alerts into your SIEM application using the iManage Threat Manager API or iManage Threat Manager Administration Guide.

API Token Auth Method

You can generate an application token, consisting of a token and a secret pair, within the iManage Threat Manager admin console.

You need to be in the Integrations Manager role to create an application token.

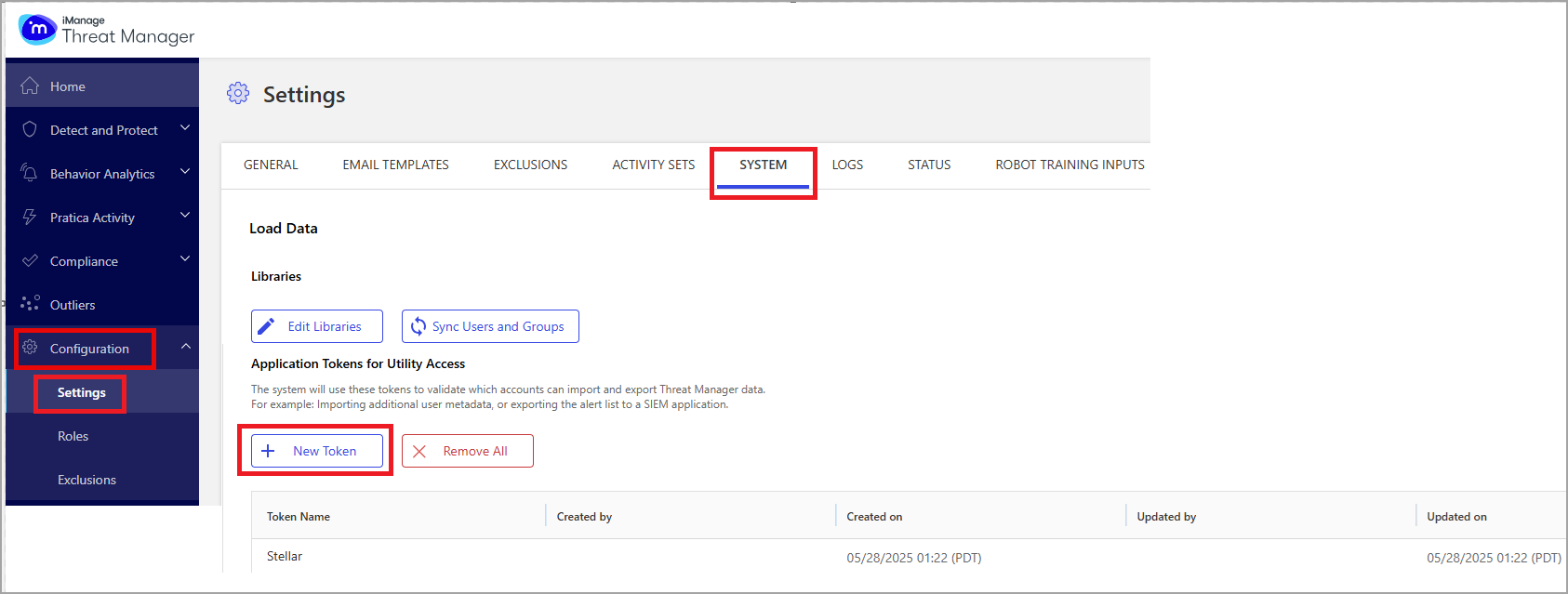

1. Navigate to Configuration > Settings > System > New Token.



User Sign-In Auth Method

You can also use the iManage Threat Manager API with an access token obtained from explicit user credentials. This provides a similar level of access to what you have in the admin console.

Adding the Connector in Stellar Cyber

To add an iManage Threat Manager connector in Stellar Cyber:

1. Log in to Stellar Cyber.

2. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.



3. Click Create and select Connector.

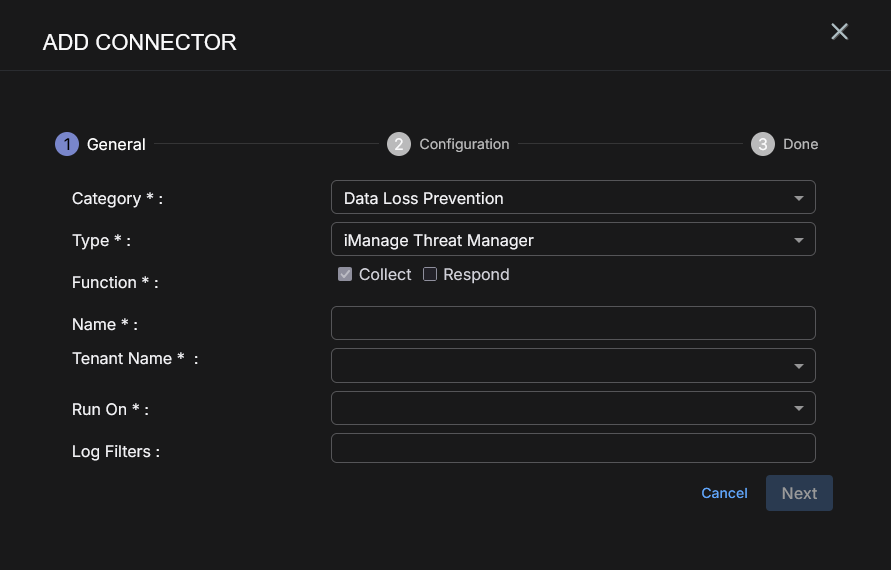

   The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

4. Choose Data Loss Prevention from the Category dropdown.

5. Choose iManage Threat Manager from the Type dropdown



   The asterisk (*) indicates a required field.

6. For this connector, the supported Function is Collect, which is enabled already.

7. Enter a Name.

   Notes:

   • This field does not accept multibyte characters.
   • It is recommended that you follow a naming convention such as tenantname-connectortype.

8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

9. Choose the device on which to run the connector.

10. (Optional) When the Function is Collect, you can apply Log Filters. For information, see Managing Log Filters.

11. Click Next. The Configuration tab appears.



    The asterisk (*) indicates a required field.

12. Enter the Base URL you noted above in Obtaining iManage Threat Manager Credentials.

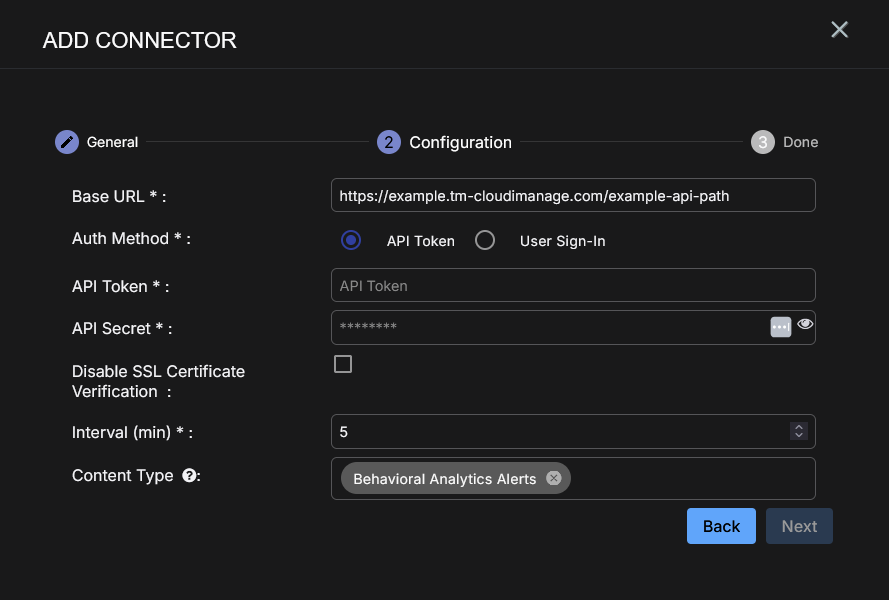

13. For Auth Method API Token:

    1. Enter the API Token you noted above.

    2. Enter the API Secret you noted above.

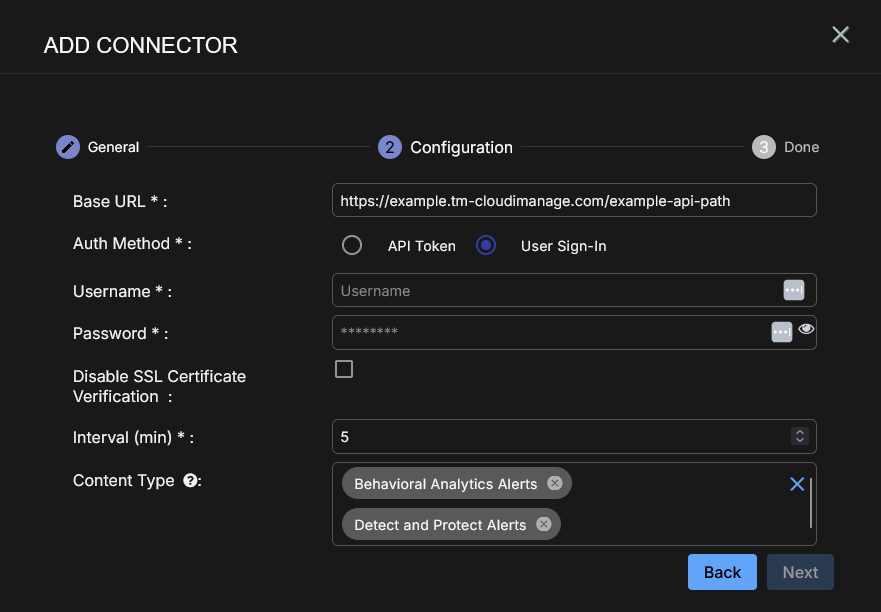

14. For Auth Method User Sign-In:

    1. Enter the Username you noted above.

    2. Enter the Password you noted above.



15. (Optional) Click Disable SSL Certificate Verification if you want to disable SSL certificate verification. Only disable SSL certificates if you have a reason to, otherwise, it is not a good security practice.

16. Choose the Interval (min). This is how often the logs are collected.

17. Choose the Content Type you would like to collect. The logs for Behavioral Analytics Alerts and Detect and Protect Alerts are supported. See Query for Behavioral Analytics Alerts for information on Behavioral Analytics Alerts.

    Use the User Sign-In Auth Method to pull the Detect and Protect Alerts.

18. Click Next. The final confirmation tab appears.



19. Click Submit.

The new connector is immediately active.

Query for Behavioral Analytics Alerts

For the Behavioral Analytics Alerts, the two different authentication methods use different API endpoints:

• API Token uses /getAlertList. This alert can only be queried using the access token from the API Token Auth Method.

• User Sign-In uses /getAddressableAlerts. This alert can only be queried using the access token from the User Sign-In Auth Method.

Detect and Protect Alerts can only be obtained with an access token from the User Sign-In Auth Method.

Testing the Connector

In addition to testing for connectivity, the Test button for the iManage Threat Manager connector tests that the Base URL and authentication are correct and data requests for the requested content types return successful responses.

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates authentication and connectivity).

For connectors running on a sensor, Stellar Cyber recommends that you allow 30-60 seconds for new or modified configuration details to be propagated to the sensor before performing a test.

1. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.



2. Locate the connector by name that you added, or modified, or that you want to test.

3. Click Test at the right side of that row. The test runs immediately.

   Note that you may run only one test at a time.

Verifying Ingestion

To verify ingestion:

1. Select Threat Hunting.

   The Interflow Search tab appears.

2. Change the Indices to Syslog.

   The table immediately updates to show ingested Interflow records.
