Stellar Cyber API Architecture Overview

The Stellar Cyber Platform delivers unified threat detection, investigation, and response capabilities across both SaaS and on-premises deployments. This topic describes the platform's API architecture, the layers that protect customer data, and the operational controls that keep the service reliable.

The platform exposes two APIs: an internal API used by the management web UI, and a public REST API for programmatic integration. Both APIs share the same authentication, authorization, and access scope model.

Key Principles

Principle

Description

Secure by Design

Security controls are integrated throughout the platform architecture and development lifecycle.

Defense in Depth

Independent controls at the network, application, and data layers reduce the impact of any single failure.

Tenant Isolation

Each customer's data and configuration is logically isolated and never shared across tenants.

Continuous Observability

Security-relevant requests and operational events are logged, monitored, and auditable.

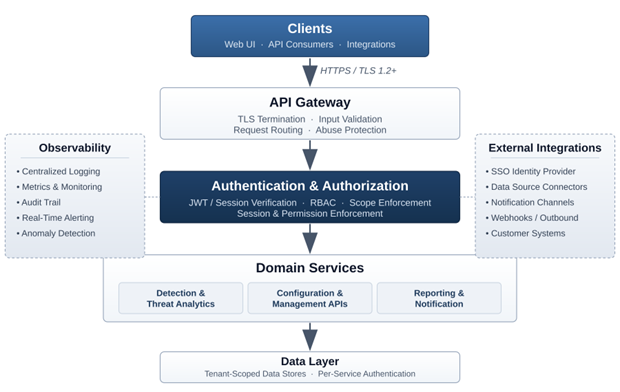

High-Level Architecture

The Stellar Cyber Platform is organized as a set of independent domain services behind a centralized API gateway. All client traffic routes through the gateway, which enforces transport security, validates requests, and directs traffic to the appropriate downstream service. A dedicated authentication and authorization service ensures security policies are applied consistently across the platform.

Public REST API endpoints are available at versioned paths in the following format:

https://<platform-host>/connect/api/v1/<endpoint>

API definitions are documented using an OpenAPI specification available both within the platform (under ? > API Docs) and here in the Knowledge Base.

Architectural Layers

Layer

Description

API Gateway

The centralized, hardened entry point for all API traffic. Terminates TLS, validates requests, and routes traffic to the appropriate domain service.

Authentication & Authorization

Verifies credentials (JWT or session cookie), resolves identity and effective access scope, and enforces RBAC policies.

Domain Services

Independent services for detection and analytics, configuration and management, and reporting and notification. Each service enforces its own domain-level authorization within the caller's authenticated tenant and user context.

Data Layer

Tenant-scoped data stores and search infrastructure. Each domain service authenticates to its data layer using service-specific credentials.

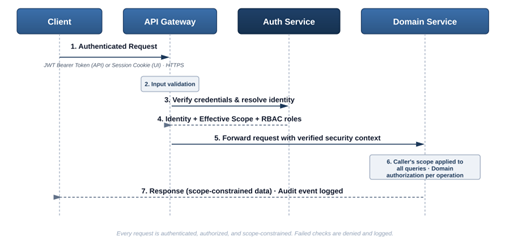

Authentication, Authorization & Access Scope

Identity and access control are the foundation of the platform's security model. All customer-facing API requests pass through a centralized authentication and authorization pipeline before reaching domain services or customer data.

Authentication

Authorization

  • Role-based access control (RBAC) provides fine-grained permissions per operation.
  • Permission checks are enforced at the domain service layer to reduce the risk of privilege escalation.
  • Access privileges can be configured at the feature group, feature, and individual function level, supporting least-privilege configurations including view-only and no-access profiles.

Access Scope & Tenant Isolation

The platform implements a three-tier access scope model:

Scope

Description

Tenant

Access to a single tenant's data and configuration.

Partner

Administrative access across a defined group of customer tenants.

Root

Full administrative access, reserved for platform administrators.

Every authenticated request resolves to the caller's effective scope, and data access is automatically constrained to that scope. Tenants are logically isolated at the data layer, and cross-scope access is restricted by enforced authorization controls.

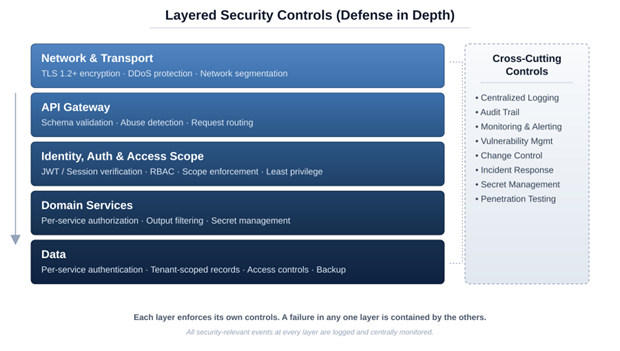

Security Controls

API Security

  • Transport Security — All API traffic uses HTTPS with TLS 1.2 or higher. Weak ciphers and legacy protocols are disabled.
  • OWASP-Aligned Testing — API security testing is designed with consideration for the OWASP API Security Top 10, with particular focus on authentication, authorization, input validation, and tenant isolation.
  • Input Validation — API requests are validated at the gateway and re-validated at service boundaries.
  • Abuse Protection — Abnormal request patterns and authentication failures are detected and surfaced through monitoring.

Operational Controls

  • Logging & Audit — Application, security, and access events are collected centrally and retained per policy. Security-relevant events form a retained, centralized audit trail.
  • Monitoring & Alerting — Real-time metrics drive automated alerting, and on-call engineers respond to critical issues.
  • Vulnerability Management — Dependencies and base images are continuously scanned, and remediation is prioritized by severity.
  • Change Management — Code review, automated testing, and progressive rollout govern every change to the platform.

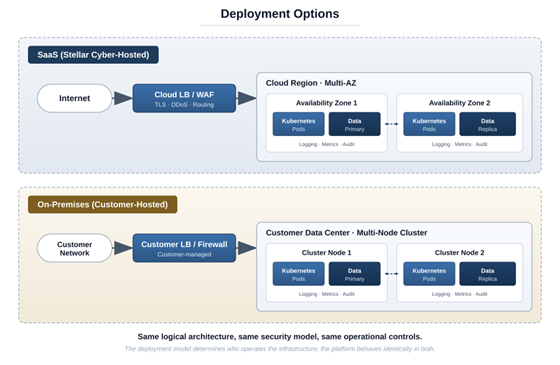

Deployment Models

The Stellar Cyber Platform supports two deployment models. Both share the same logical API architecture, security model, and operational controls. They differ in where the platform runs and who manages the underlying infrastructure.

Model

Description

SaaS

The platform is hosted in a major public cloud and fully operated by Stellar Cyber.

On-Premises

The platform is installed in the customer's own environment and operated by the customer. The customer governs access to their own infrastructure and data.

Data Protection

  • All customer data is encrypted in transit using HTTPS / TLS. Domain services authenticate to their data stores using service-specific credentials.
  • Backups are taken on a regular schedule and verified for integrity.
  • Access to production data is restricted to authorized personnel under documented controls. In on-premises deployments, the customer governs access to their own environment.
