Parser Studio

Parser Studio is a management workspace for creating and managing log parsers for data ingestion. Parsers convert raw log messages that devices send to Modular Sensors into normalized fields in Interflow records. Stellar Cyber then analyzes the normalized, searchable data stored in these records for detections, correlations, and investigations. You can use Parser Studio to do the following:

Root-level users, partners, and tenant users

• View built-in parsers provided by Stellar Cyber and custom parsers that you or others on your team create

Root-level users

• Create custom parsers by cloning an existing parser

• Upload parser definitions

• Configure log parsing rules

• Test parser behavior before deployment

• Enable or disable parsers for each tenant, including built-in parsers, to control which logs a tenant ingests and to manage sensor memory consumption

To access Parser Studio:

1. Log in as a root-level user, partner, or tenant user and navigate to System | DATA SOURCE MANAGEMENT | Parser Studio | Parsers.

   Parser Studio opens to a landing page with a table of built-in and previously created parsers.



   The Type and Mode of a parser can be in one of these four combinations:

   • Built-in parsers in legacy mode can be enabled or disabled per tenant, but only after you first select a specific tenant. They cannot be enabled or disabled when you view parsers in All Tenants mode, and they cannot be cloned, edited, or deleted.

   • Built-in parsers in modular mode can be activated/deactivated and cloned, but only after you first select a specific tenant. They cannot be acted upon when viewing parsers in All Tenants mode, and they cannot be edited or deleted even after you select a specific tenant.

     There are five built-in modular parsers with the following port numbers:

     • From 6.5.0: Fortinet Fortigate (8517) and NetScout Omnis (9063)

     • From 6.6.0:  SonicWall Firewall (8512), Sophos Firewall (8520), and WatchGuard Firewall (8557)

   • Custom parsers in legacy mode can be edited and deleted, but only after you first select a specific tenant. They cannot be cloned, enabled, or disabled. A custom legacy parser uses the same port as the corresponding built-in legacy parser and is available only to the customer who requested it. These are custom parsers that Stellar Cyber Customer Success provides in response to customer requests and that are uploaded to the Stellar Cyber Platform.

   • Custom parsers in modular mode can be activated/deactivated, cloned, edited, and deleted after you first select a specific tenant.

2. If you are a root-level user or partner, use the tenant selector at the top of the page to choose an individual tenant whose parsers you want to manage.

   You cannot create, clone, edit, or delete a parser when the tenant selector is All Tenants. You must first select an individual tenant.

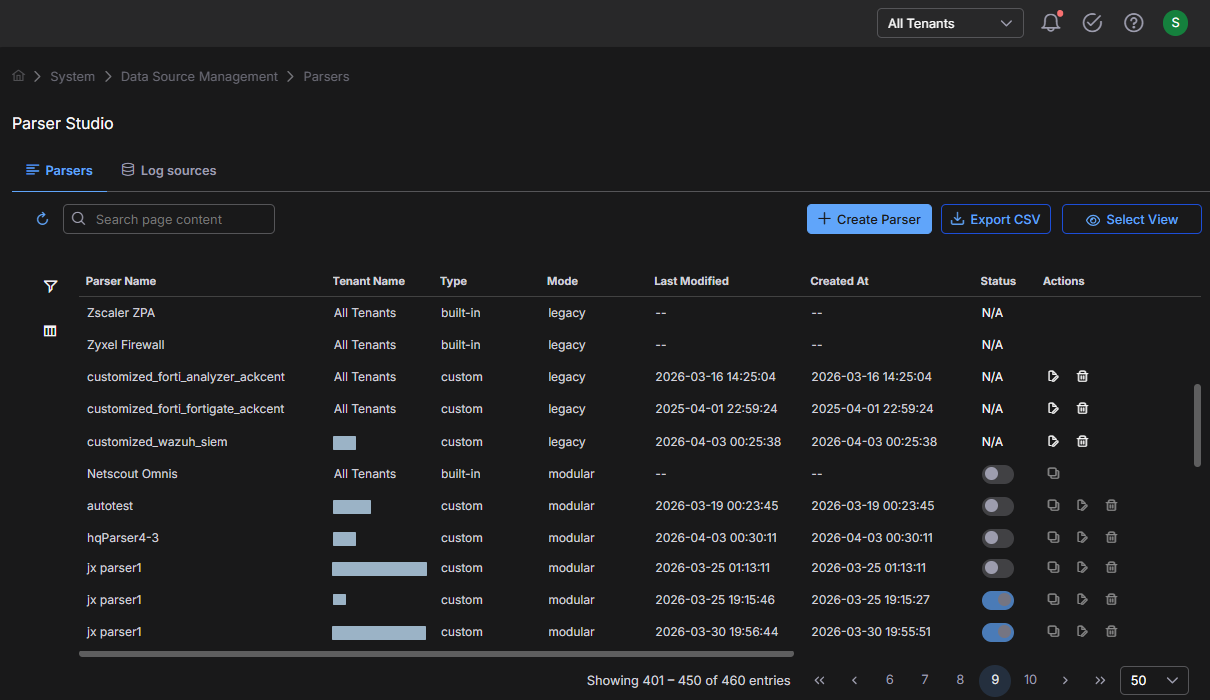

   Parser Studio displays a table of built-in and previously created parsers for your selection.

   The table is intended to support day-to-day management—quick visibility into configuration, and actions to maintain parsers over time. It contains the following column headings:

   Column	Description
   Parser Name	Name of the parser
   Tenant Name (visible to root-level users and partners)	Tenant with which a parser is associated
   Type	Whether the parser was created by Stellar Cyber (built-in) or by a user (custom)
   Mode	legacy or modular (Legacy parsers use the original parser architecture and cannot be edited in Parser Studio. Modular parsers use a newer architecture and can be. All custom parsers are modular; built-in parsers can be either mode.)
   Last Modified	(Custom parsers) Timestamp of the last modification
   Created At	(Custom parsers) Timestamp when a parser was created
   Status	A toggle that enables or disables the parser for the selected tenant. An enabled parser runs and binds to its configured port. A disabled parser does not run and does not consume sensor resources on that port. The toggle is available only for the parser types that support enabling and disabling, and only after you select an individual tenant. Disabling the parsers that a tenant does not need is the recommended way to manage sensor memory consumption.

   For each custom parser in the table, there is a set of common actions that you can perform:

   • Clone a custom parser (useful to copy a working configuration)

   • Edit a custom parser

   • Delete a custom parser

     Treat deletion carefully. Removing a parser stops parsing for the data streams that depend on it.

Enable or Disable a Parser

You can enable or disable parsers per tenant from the Parser Studio table to control which logs a tenant ingests. Enabling a parser starts ingestion on its port, and disabling a parser stops ingestion and frees the sensor resources that the parser used. Because every running parser consumes sensor memory, disabling the parsers that a tenant does not need is the recommended way to manage sensor memory consumption.

Enabling and disabling parsers requires Modular Sensors running 6.6.0 or later.

You cannot disable a custom legacy parser. A custom legacy parser uses the same port as the corresponding built-in legacy parser and is provided for the specific customer who requested it, so it is expected to remain in use. For the actions that each parser type supports, see the Type and Mode combinations described earlier in this topic.

To enable or disable a parser:

1. Select the tenant whose parsers you want to manage.

   You cannot enable or disable a parser when the tenant selector is All Tenants. You must first select an individual tenant.

2. In the Parser Studio table, locate the parser, and then use the Status toggle to enable or disable it.

   The change applies only to the selected tenant. The same parser can be enabled for one tenant and disabled for another.

Built-in legacy parsers introduced in 6.5.0 or later are disabled by default. Enable a parser for a tenant when you want that tenant to ingest the corresponding logs.

When you upgrade the Stellar Cyber Platform, your existing parser settings are preserved. Parsers that were enabled before the upgrade remain enabled, and parsers that were disabled remain disabled.

Create a Custom Parser

Root-level users

Custom parsers let Stellar Cyber ingest logs from data sources that do not already have built-in parser support. Parser Studio provides two methods for creating a custom parser:

• Clone a Parser – Start from an existing modular parser and modify it through a guided four-step configuration workflow.

• Upload Custom Parser – Upload a parser configuration file that Stellar Cyber Customer Success has provided in response to a custom parser request. For information, see Upload a Custom Parser Provided by Customer Success.

The following sections walk through each method. The four-step configuration walkthrough that accompanies the cloning method—including examples, troubleshooting techniques, and tips—uses the cloning workflow, but the concepts and practices it illustrates apply equally when you are preparing or troubleshooting an uploaded parser configuration.

Requirements

• Root-level user access with read-write privileges

  A sample raw log entry that is representative of the logs you want to parse

• Knowledge of the protocol that your devices use to transmit logs to an external system

• Knowledge of the log format that your devices use (Stellar Cyber supports custom parsers in Syslog, CEF, and LEEF formats.)

• (Upload method only) A parser configuration file in JSON format provided by Stellar Cyber Customer Success. The file defines all five pipeline steps: routing, parsing, normalization, enrichment, and output. For instructions on uploading the file, see Requesting and Uploading Custom Parsers.

  The cust_id value in the routing step of the configuration file must match the Stellar Cyber tenant ID for the tenant to which you are uploading the parser. You can find a tenant ID on the Tenants page (System | ORGANIZATION MANAGEMENT | Tenants).

• (Optional, if using Tenant Mapping) A tenant map configured for the target tenant. The tenant map must exist in Tenant Mapping (System | ORGANIZATION MANAGEMENT | Tenant Mapping) before you configure the parser. See Tenant Mapping.

• (Optional, if using Tenant Mapping with a Stellar Cyber ID field) The Stellar Cyber tenant ID value that the sending system embeds in its log messages.

Clone a Parser

You can clone another custom parser or one of the following built-in modular parsers, which Stellar Cyber currently lets you clone to get started: Fortinet Fortigate (port 8517), NetScout Omnis (9063), SonicWall FIrewall (8512), Sophos Firewall (8520), or WatchGuard Firewall (8557).

1. When logged in as a root-level user, select or confirm the tenant for which you want to create a parser, and then select + Create Parser.

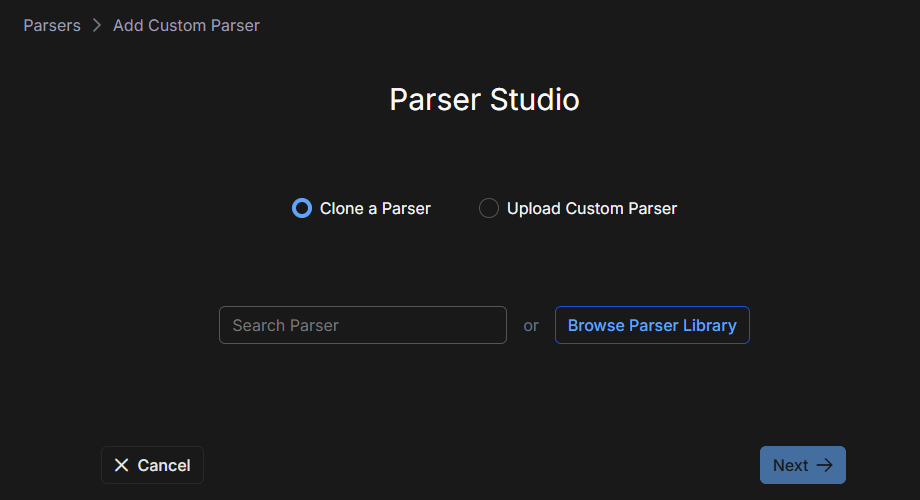

2. Select Clone a Parser and then do either of the following:

   Search for a parser to clone, choose it from the search results, and then select Next.

   or

   Select Browse Parser Library, choose one from the list, select Clone Selected Parser, and then select Next.



   Parser Studio creates a copy of the selected parser and opens the parser configuration workflow, which consists of four steps:

   Step 1: Raw Log

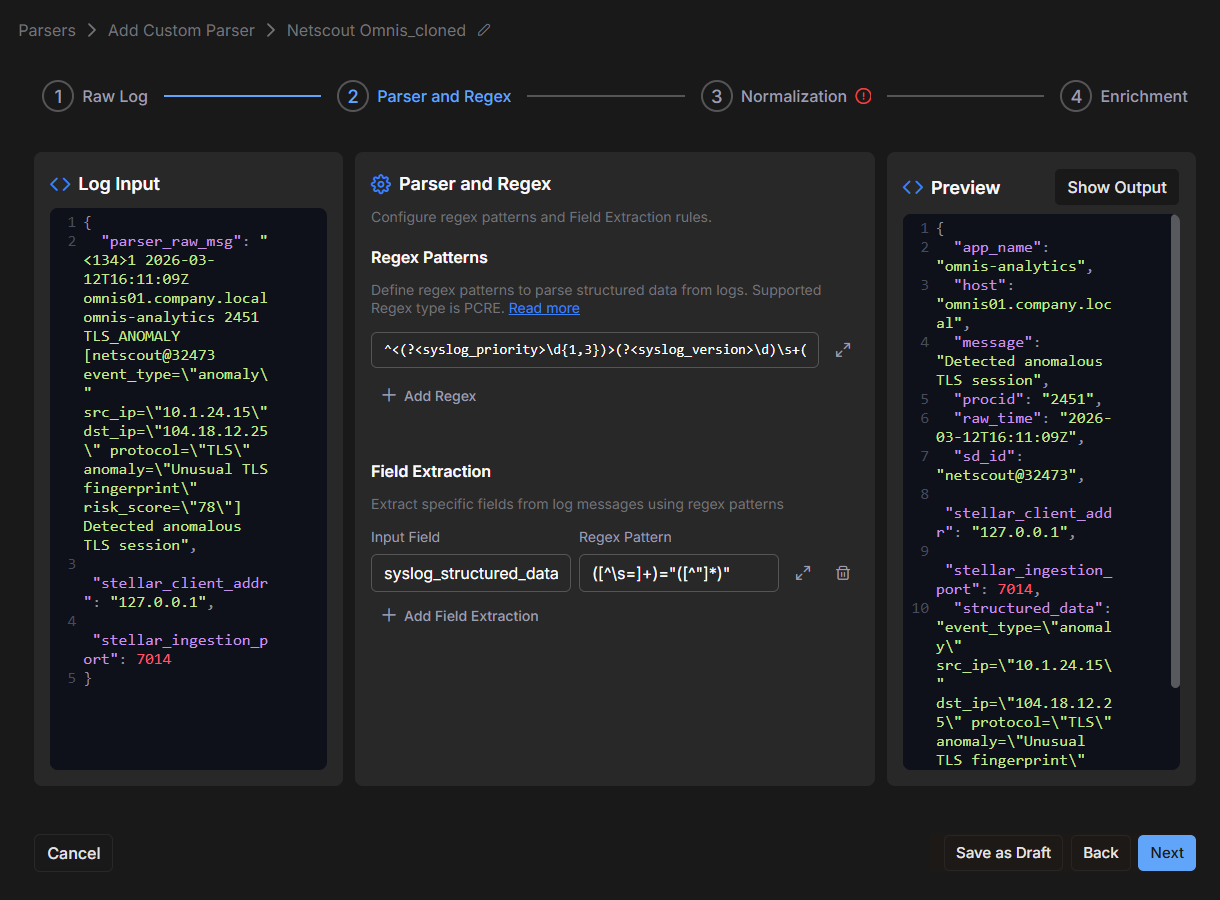

   Step 2: Parser and Regex

   Step 3: Normalization

   Step 4: Enrichment

   Stellar Cyber guides you through each step of the workflow.

   In this example, the cloned parser is modified to parse a different log format (Syslog instead of CEF) to demonstrate Parser Studio capabilities. In typical use, you would clone a built-in or custom parser for a similar product and modify it to support logs from a device that does not yet have a dedicated parser in the Stellar Cyber Platform.

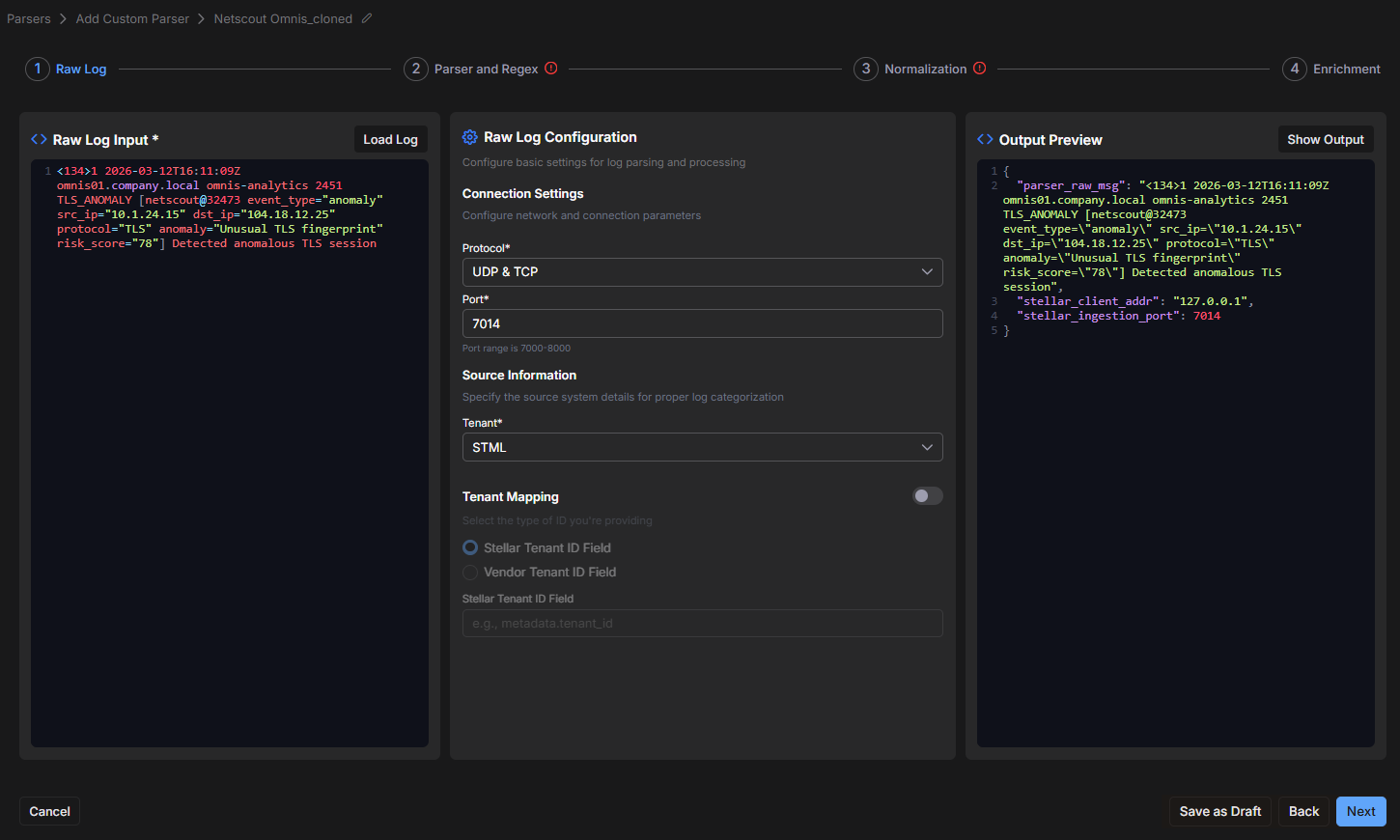

Step 1: Raw Log

1. Upload or paste a raw log sample in the Raw Log Input panel.

   Either copy and paste a single log entry that represents the logs that require parsing into the Raw Log Input field, or select Load Log, navigate to the file with a single log entry and select it.

   Example log entry:

   <134>1 2026-03-12T16:11:09Z omnis01.company.local omnis-analytics 2451 TLS_ANOMALY [netscout@32473 event_type="anomaly" src_ip="10.1.24.15" dst_ip="104.18.12.25" protocol="TLS" anomaly="Unusual TLS fingerprint" risk_score="78"] Detected anomalous TLS session

2. Enter the connection setting and source configuration.

   Protocol: Choose either UDP & TCP or HTTP.

   Port: Enter a port number between 7000 and 8000. This range is reserved for custom parsers. Be sure to use a unique number. If you accidentally enter one that’s already in use by another custom parser, Stellar Cyber notifies you and prompts you to enter a different number.

   Tenant (root-level users and partners): Choose the tenant for which you’re creating this custom parser.

   Tenant Mapping (optional): Enable this toggle if the logs that this parser will process include a tenant ID field, and you want the parser to assign each log to the correct Stellar Cyber tenant based on that field. This is useful in multi-tenant environments where a single log stream contains logs belonging to different tenants.

   When you enable Tenant Mapping, select one of the following options:

   • Stellar Tenant ID Field – Select this option if the sending system embeds a Stellar Cyber tenant ID directly in each log. In the Stellar Tenant ID Field, enter the JSON path to the field that contains the Stellar Cyber tenant ID (for example, metadata.tenant_id or customer_id). The parser extracts the value at that path from each incoming log and uses it directly to assign the log to the matching Stellar Cyber tenant. No tenant map is required.

   • Vendor Tenant ID Field – Select this option if the sending system embeds its own tenant ID in each log rather than a Stellar Cyber tenant ID. In the Vendor Tenant ID Field, enter the JSON path to the field that contains the vendor tenant ID (for example, metadata.tenant_id, vendor_id, or org_id). The parser extracts the value at that path from each incoming log and looks it up in the selected tenant map to find the corresponding Stellar Cyber tenant ID. If the lookup finds a match, the log is assigned to the mapped Stellar Cyber tenant. If no match is found, the log is assigned to the same tenant as the sensor that received it.

   To select a tenant map, click or tap Select Tenant Mapping. The Select Tenant Mapping Table dialog box opens and lists the available tenant maps for the selected tenant, along with the number of entries each tenant map contains. Select a tenant map to preview its Vendor Tenant ID-to-Stellar Cyber Tenant ID mappings, and then click or tap Select. The selected tenant map name appears in the Raw Log Configuration panel. To change the tenant map, select Change Tenant Mapping.

   The tenant map must already exist before you configure the parser. To create or manage tenant maps, navigate to System | ORGANIZATION MANAGEMENT | Tenant Mapping. For information, see Tenant Mapping.

3. Preview the output of the parsed log by selecting Show Output.



4. To continue to the second step, select Next.

   If you want to save the custom parser configuration done so far and resume later, select Save as Draft and then select Cancel. Stellar Cyber saves it to the Parser Studio table as a custom parser with “Draft” appended to its name in the Parser name column. To resume, select Edit for the custom parser configuration.

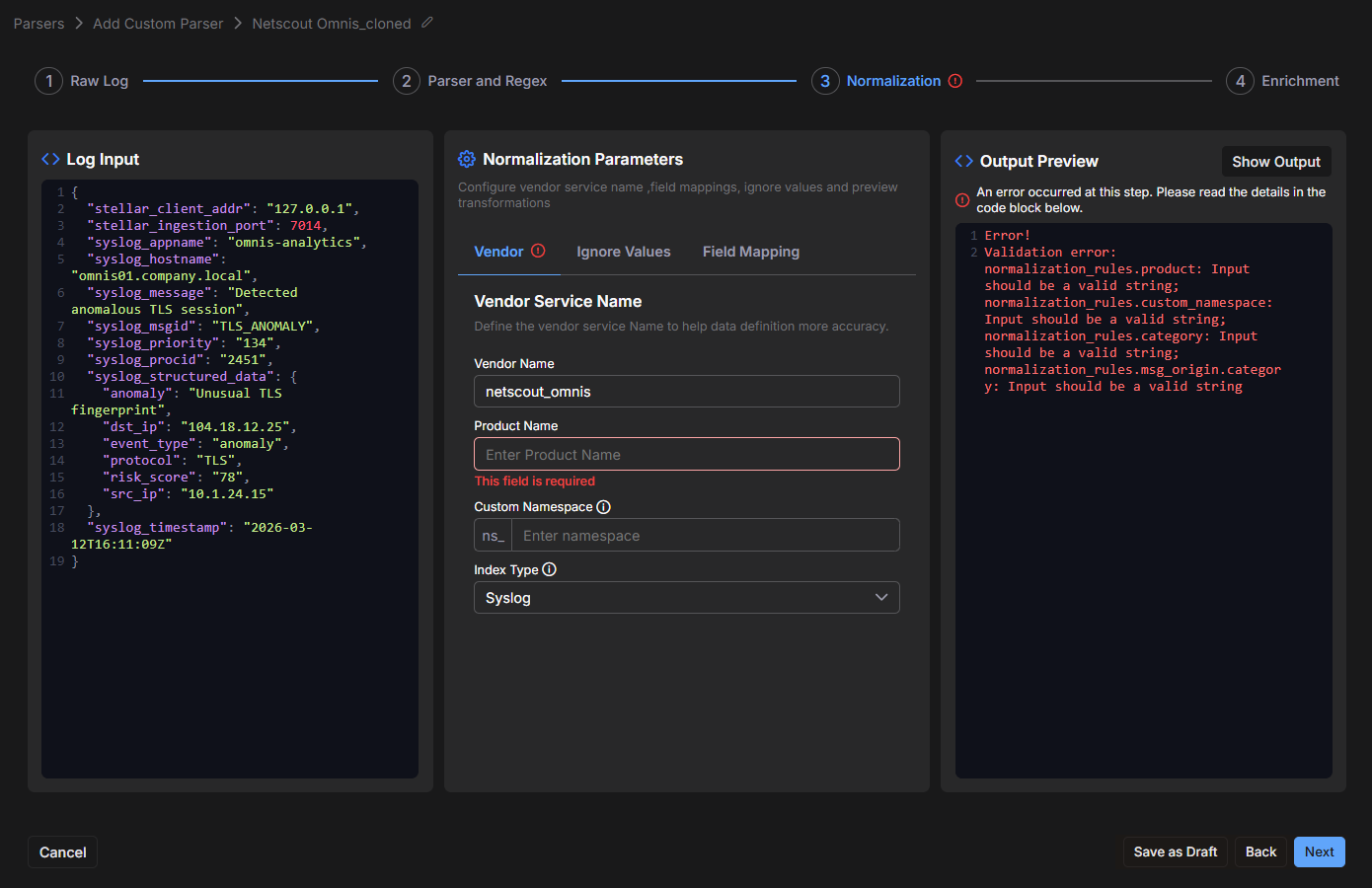

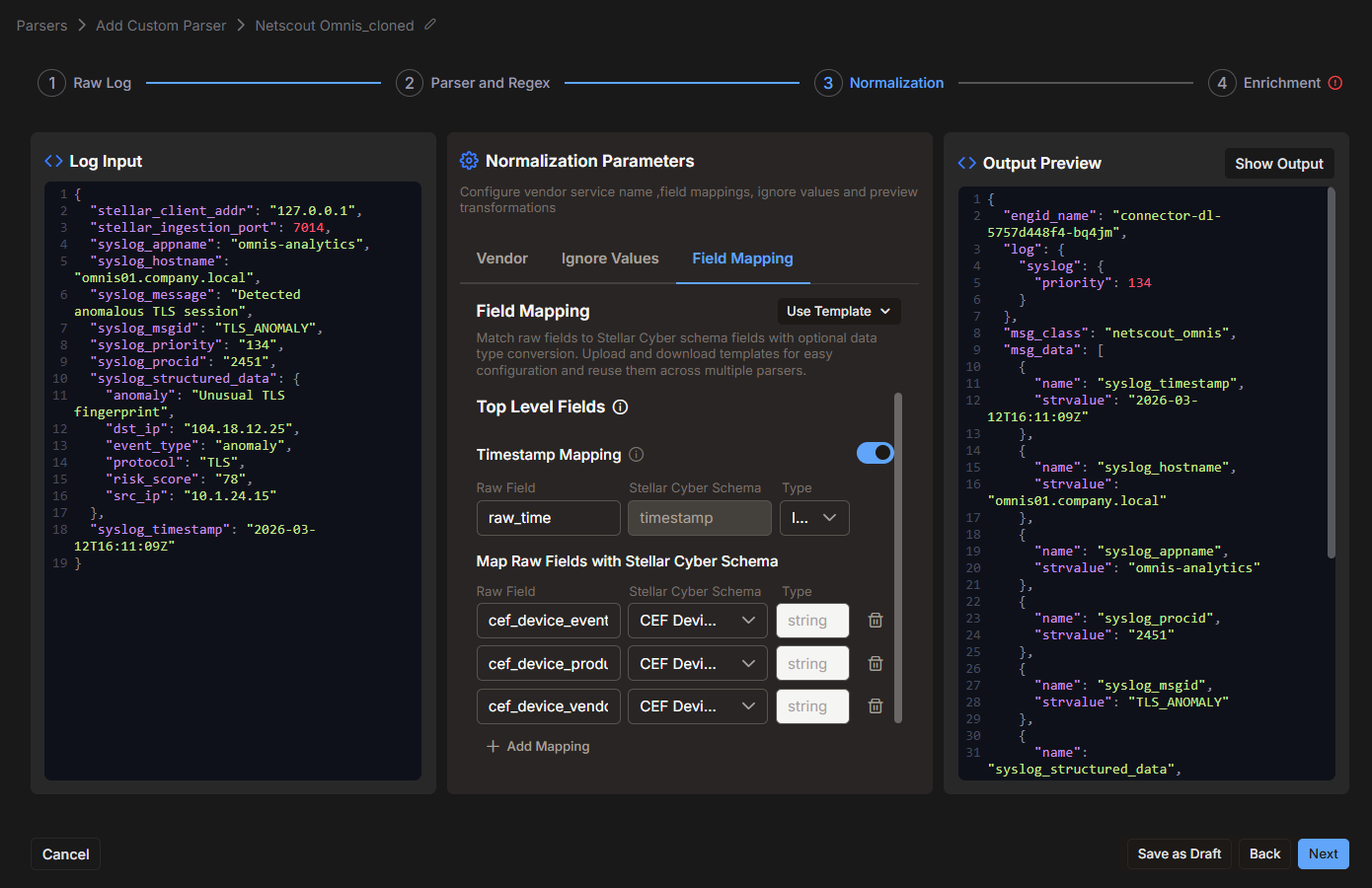

Step 3: Normalization

Step 4: Enrichment

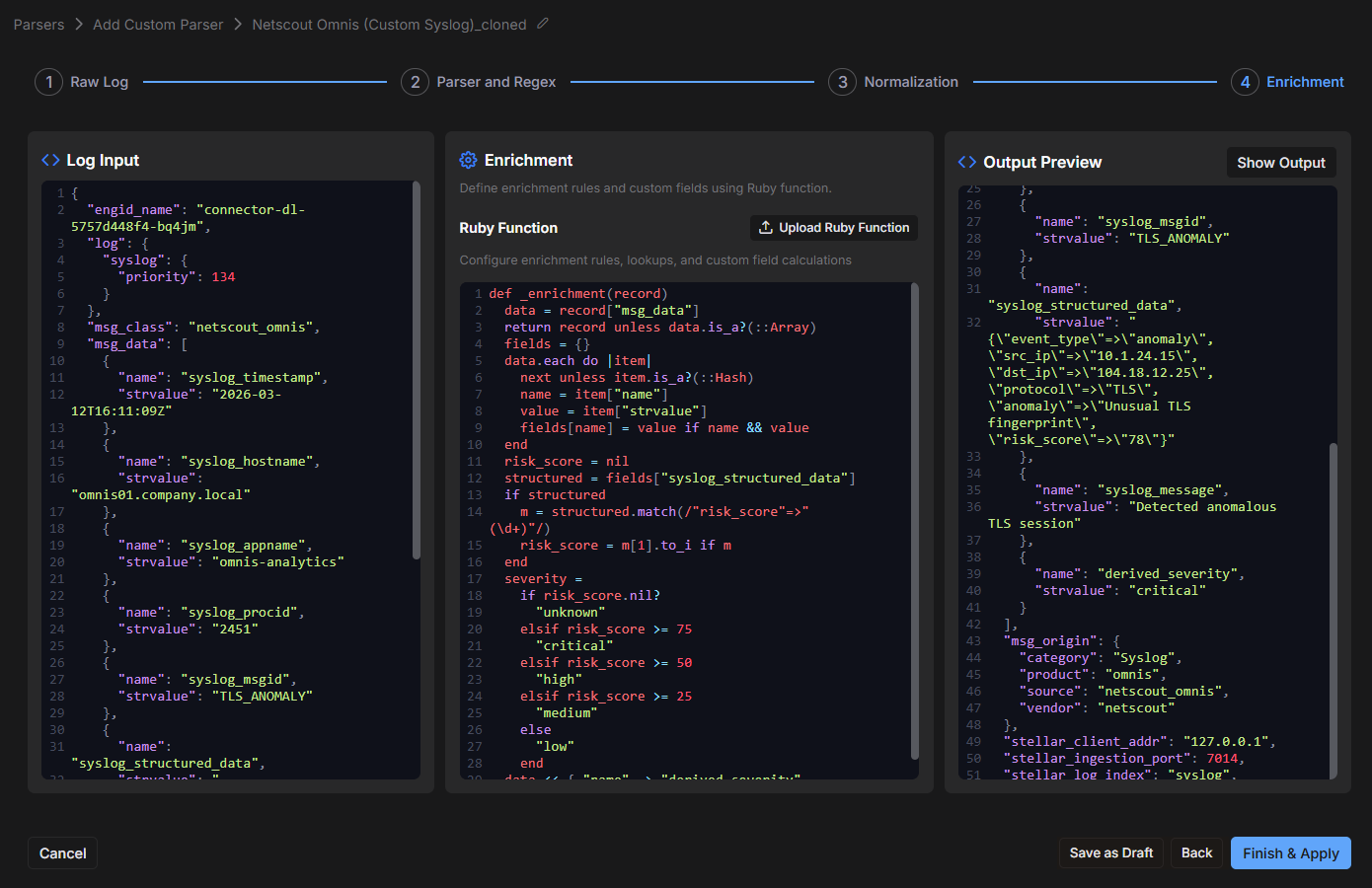

Optional: Add a Derived Field Using Enrichment

The Enrichment step adds value after parsing and normalization by calculating derived fields that do not exist in the original message.

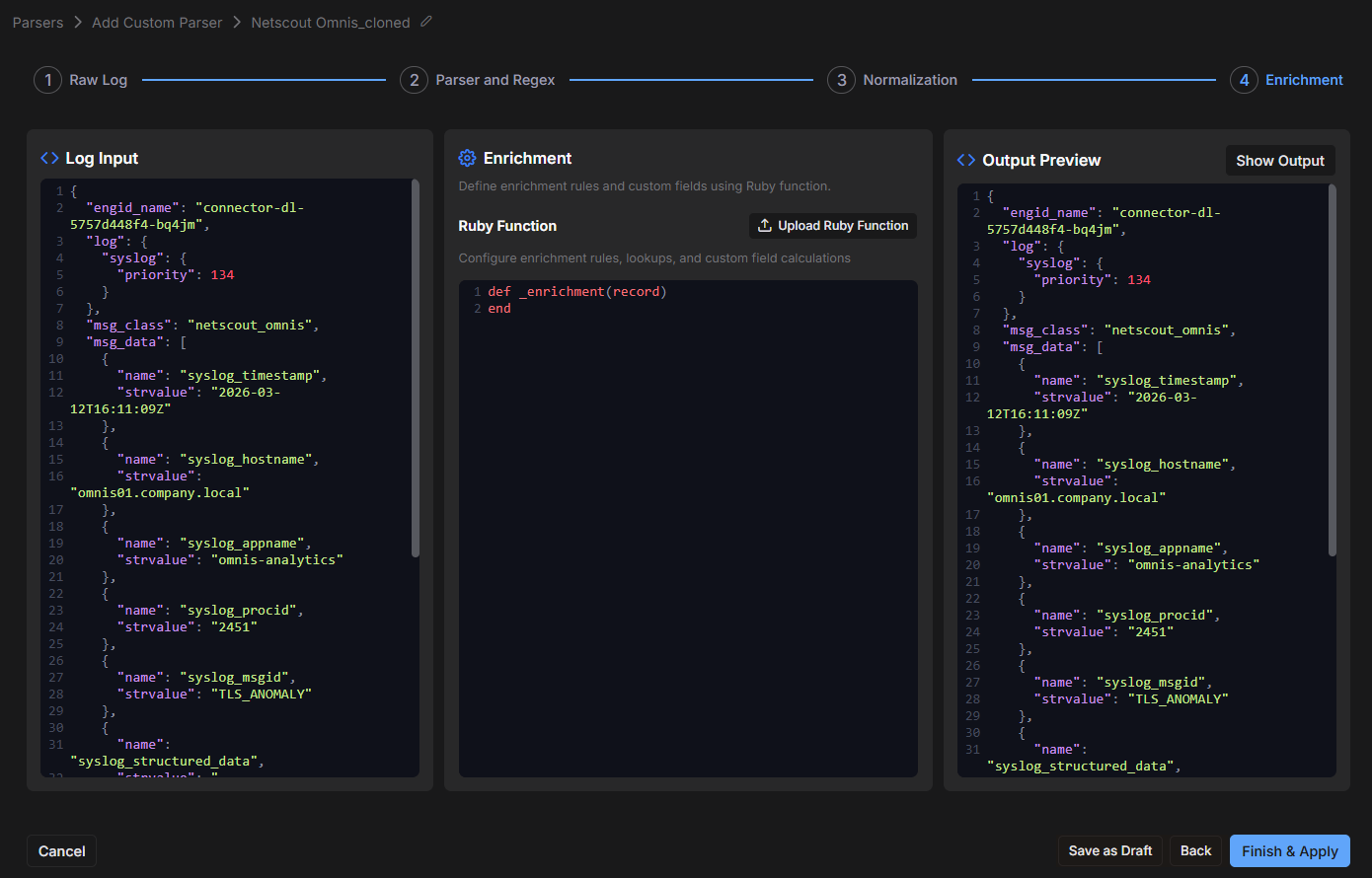

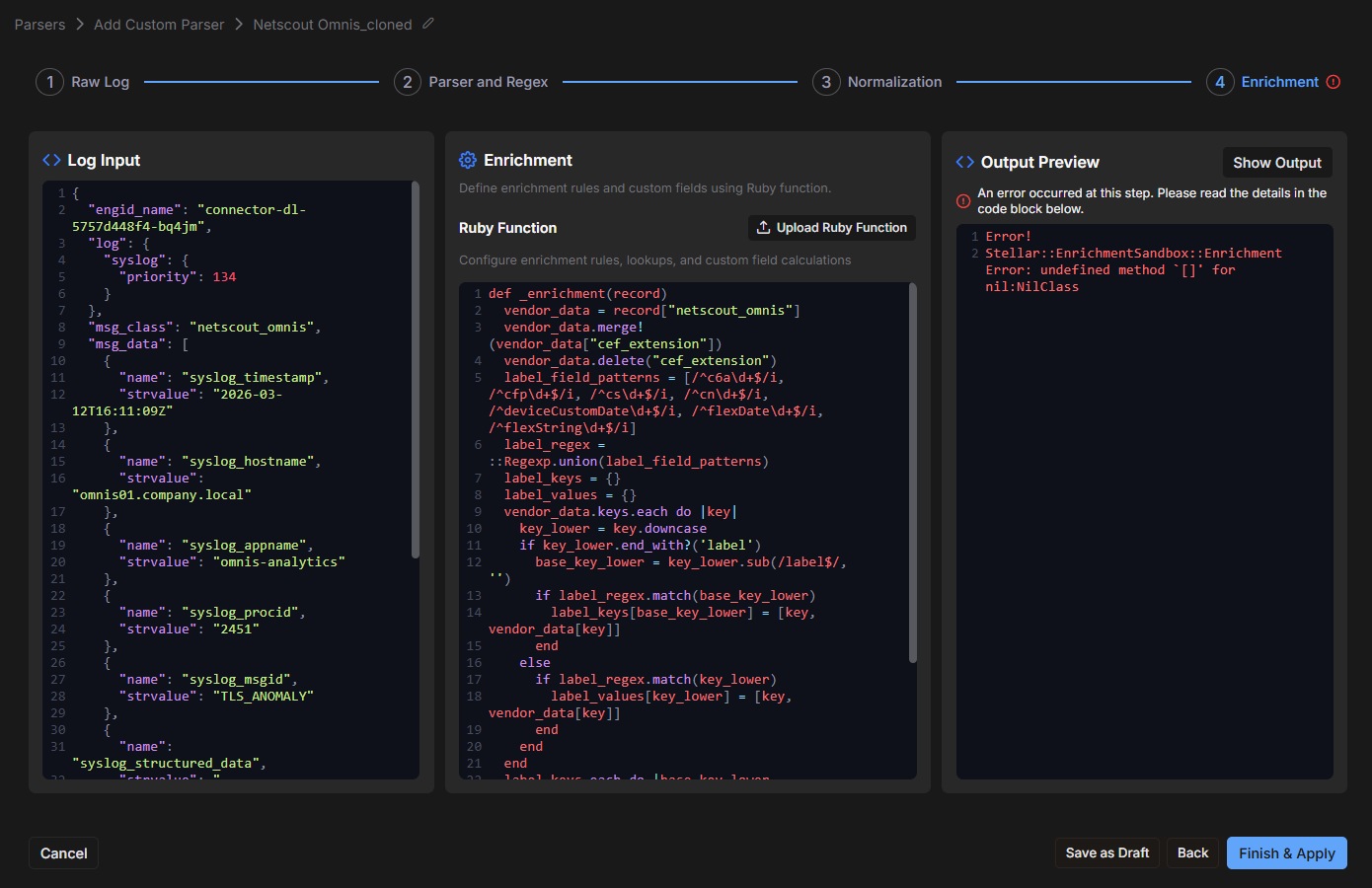

After confirming that the pass-through function works in the previous example, you can add enrichment logic. For example, you can derive a severity value from the parsed risk_score.

1. Replace the pass-through Ruby function with the following example:

   Copy

   def _enrichment(record)
     data = record["msg_data"]
     return record unless data.is_a?(::Array)
     fields = {}
     data.each do |item|
       next unless item.is_a?(::Hash)
       name = item["name"]
       value = item["strvalue"]
       fields[name] = value if name && value
     end
     risk_score = nil
     structured = fields["syslog_structured_data"]
     if structured
       m = structured.match(/"risk_score"=>"(\d+)"/)
       risk_score = m[1].to_i if m
     end
     severity =
       if risk_score.nil?
         "unknown"
       elsif risk_score >= 75
         "critical"
       elsif risk_score >= 50
         "high"
       elsif risk_score >= 25
         "medium"
       else
         "low"
       end
     data << { "name" => "derived_severity", "strvalue" => severity }
     record
   end

   This function reads the normalized msg_data array, extracts the risk_score value from syslog_structured_data, evaluates the score, and appends a new field named derived_severity.

2. Select Show Output again.

   The Output Preview now includes the derived_severity field. For this sample, the risk_score value is 78, which maps to the Critical severity level:

   { "name": "derived_severity", "strvalue": "critical" }



3. To complete the parser setup, select Finish & Apply.

   Stellar Cyber saves the parser and returns you to the Parser Studio table. The parser appears as a custom parser for the selected tenant.

4. After saving, review the parser in the table and confirm the following:

   • The parser name clearly identifies its purpose.

   • The assigned port does not conflict with another custom parser.

   • The parser is configured for the correct tenant.

   • The parser status is appropriate for testing or production use.

5. If you are ready to use the parser in production, enable it in the Parser Studio table.

Upload a Custom Parser

Use Upload Custom Parser only when Stellar Cyber Customer Success has already provided you with files for a custom parser. This option is intended for existing Customer Success-delivered parser files. For most custom parser needs, use Parser Studio to create and manage parsers directly.

Unlike cloning, the upload method does not open the four-step configuration workflow. After the upload succeeds, the parser appears directly in the Parser Studio table for the selected tenant.

For prerequisites and upload instructions, including how to configure Tenant Mapping if needed, see Upload a Custom Parser Provided by Customer Success.

Troubleshooting

If a custom parser does not behave as expected, use the following checks to isolate the issue. Because a Parser Studio configuration is performed in stages (Raw Log, Parser and Regex, Normalization, and Enrichment), problems often originate in an earlier step and propagate forward. When troubleshooting, validate each stage in order.

The following strategy can help you troubleshoot issues efficiently before reviewing specific symptoms.

Troubleshooting Strategy

Work incrementally and validate each stage before moving to the next:

• Use a realistic sample log that represents actual incoming data.

• Validate parsing before adjusting normalization settings.

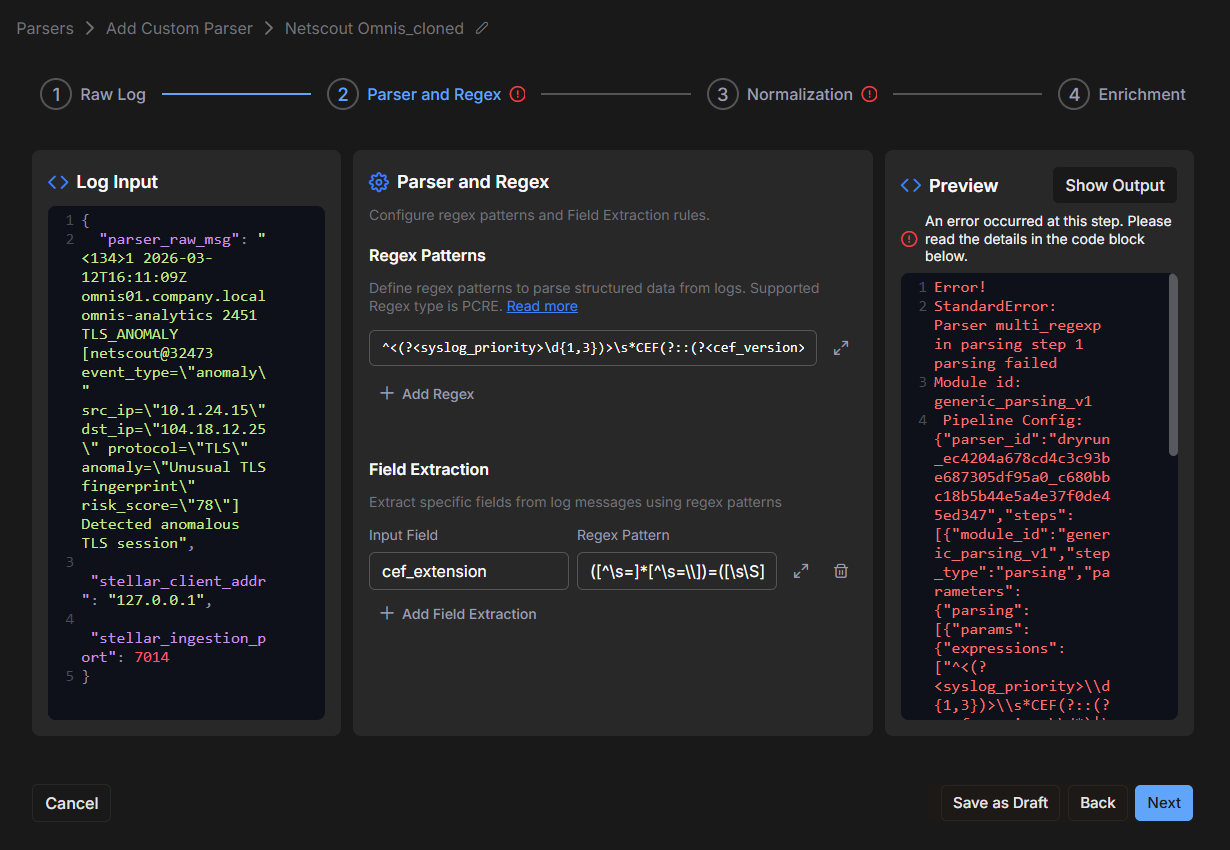

• Use regex debugging tools or an AI assistant when extraction rules do not match expectations.

• Clear enrichment errors with the simplest possible pass-through function first.

• Add derived enrichment logic only after parsing and normalization are stable.

This staged approach prevents changes in later steps from masking issues that originate earlier in the workflow.

Parser Studio is not visible in the UI

If you do not see Parser Studio in the navigation or cannot access the feature:

• Confirm that you are logged in with a role that has permission to create custom parsers. Some roles do not expose Parser Studio.

• Verify that you are working in the correct tenant. Parser Studio availability might be tenant-specific.

• If the feature is still not visible, contact your administrator or Stellar Cyber support to confirm that Parser Studio is enabled for your environment.

A parser is enabled but data is not arriving

If a parser is configured and enabled but no events appear:

• Verify that the log sender is using the correct protocol (UDP or TCP) and the port configured for the parser.

• Confirm that network and firewall rules allow traffic from the log source to a Modular Sensor on the configured port.

• Ensure that the parser is enabled for the correct tenant and that the incoming data is being sent to that tenant.

• Use a packet capture or simple connectivity test (for example, netcat or telnet) to confirm that traffic is reaching the ingestion port.

• Review system logs on the Modular Sensor for ingestion errors or listener binding failures.

Test results do not match expectations

If parsing succeeds but fields are missing, incorrect, or incomplete:

• Re-check the sample log. Small format differences (extra spaces, different delimiters, optional fields) are common and can cause regex mismatches.

• Validate timestamp extraction first. Timestamp parsing failures often prevent correct event processing and can affect downstream normalization.

• Confirm that your regex captures only the intended fields and does not over-match. Test with multiple sample logs if possible.

• Start with a minimal set of fields. After parsing works reliably, gradually add additional fields.

• Check normalization mappings to ensure that captured fields are mapped to the correct destination fields.

• If enrichment logic is used, temporarily replace it with a pass-through function to confirm that the issue originates earlier in the pipeline.

Enrichment produces unexpected results

If derived fields are missing or incorrect:

• Confirm that enrichment logic matches the actual format of the normalized data.

• Verify that field names referenced in the Ruby function exist in msg_data.

• Temporarily simplify the enrichment function to isolate the issue, then reintroduce logic incrementally.

An uploaded parser configuration is rejected

If the upload fails with an error:

• Check that the cust_id value in the routing step of your JSON file exactly matches the Stellar Cyber tenant ID for the target tenant. Tenant IDs are case-sensitive. You can verify the tenant ID on the Tenants page (System | ORGANIZATION MANAGEMENT | Tenants).

• Confirm that the port number in the routing step is between 7000 and 8000 and is not already assigned to another custom parser.

• Confirm that all five pipeline steps are present in the file: routing, parsing, normalization, enrichment, and output.

• Validate the JSON syntax of the file before uploading. A missing brace, bracket, or comma can cause the upload to fail even when the parser logic is correct.
