Installing Proxmox VE and Configuring Storage
This is part of Installing a Data Processor in Proxmox VE (Cluster).
Install Proxmox VE
Refer to the Proxmox VE Installation documentation for detailed instructions. The following configuration was used for this deployment:
- Proxmox VE installed on two 480 GB SSDs in a ZFS RAID1 mirror (rpool) — boot and OS only, no VM storage.
- Management interface on the first 1 GbE NIC, configured with a static IP.
Confirm the installation before proceeding:
pveversion zpool status rpool ip -br a

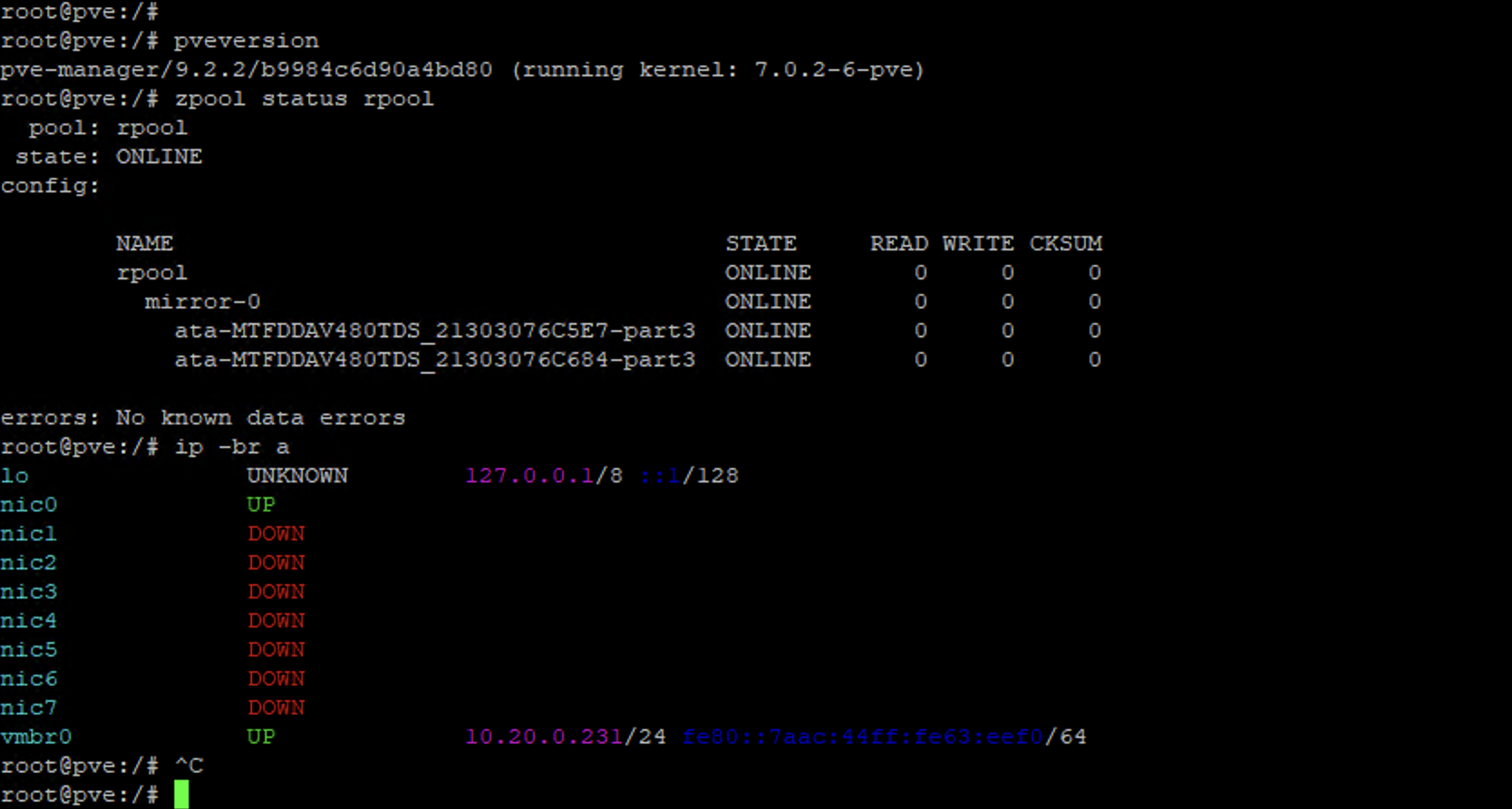

Example output:
root@pve:/# pveversion
pve-manager/9.2.2/b9984c6d90a4bd80 (running kernel: 7.0.2-6-pve)
root@pve:/# zpool status rpool
pool: rpool
state: ONLINE
config:
NAME STATE READ WRITE CKSUM
rpool ONLINE 0 0 0
mirror-0 ONLINE 0 0 0
ata-MTFDDAV480TDS_21303076C5E7-part3 ONLINE 0 0 0
ata-MTFDDAV480TDS_21303076C684-part3 ONLINE 0 0 0
errors: No known data errors
root@pve:/# ip -br a
lo UNKNOWN 127.0.0.1/8 ::1/128
vmbr0 UP 10.20.0.231/24 fe80::7aac:44ff:fe63:eef0/64
root@pve:/#
Configure Storage
Stellar Cyber recommends one storage target with sufficient capacity for the VM system disks and a second, dedicated storage target for the Data Lake's Elasticsearch data. Separating the two ensures that Elasticsearch data growth can never consume the space needed by the VM system disks, and confines a data-disk failure to the data pool — the DL and DA virtual machines remain bootable and recoverable.
This deployment uses three ZFS pools:
|
Pool |
Devices |
Layout |
Purpose |
|---|---|---|---|
|
rpool |
2 × 480 GB SSD |
RAID1 mirror |
Proxmox VE OS (created by installer) |
|
vmstore |
1 × 1.92 TB SSD |
Single disk |
DL and DA VM system disks |
|
datalake |
7 × 1.92 TB SSD |
Stripe |
Data Lake Elasticsearch data |
A striped pool provides maximum capacity and throughput with no redundancy, matching Stellar Cyber's standard capacity-first Data Lake storage model. A failure of any disk in this pool destroys the Elasticsearch data but does not affect the VM system disks on vmstore — the DL and DA virtual machines remain bootable, and recovery consists of rebuilding the pool and re-adding the data disk.
Identify the Disks
Always reference disks by their /dev/disk/by-id/ path rather than /dev/sdX. Kernel device letters are assigned in discovery order and can change between reboots; the by-id path is tied to the disk's model and serial number and is stable.
ls -l /dev/disk/by-id/ | grep -v part
Record the eight data disk IDs. Exclude the two disks used by rpool.

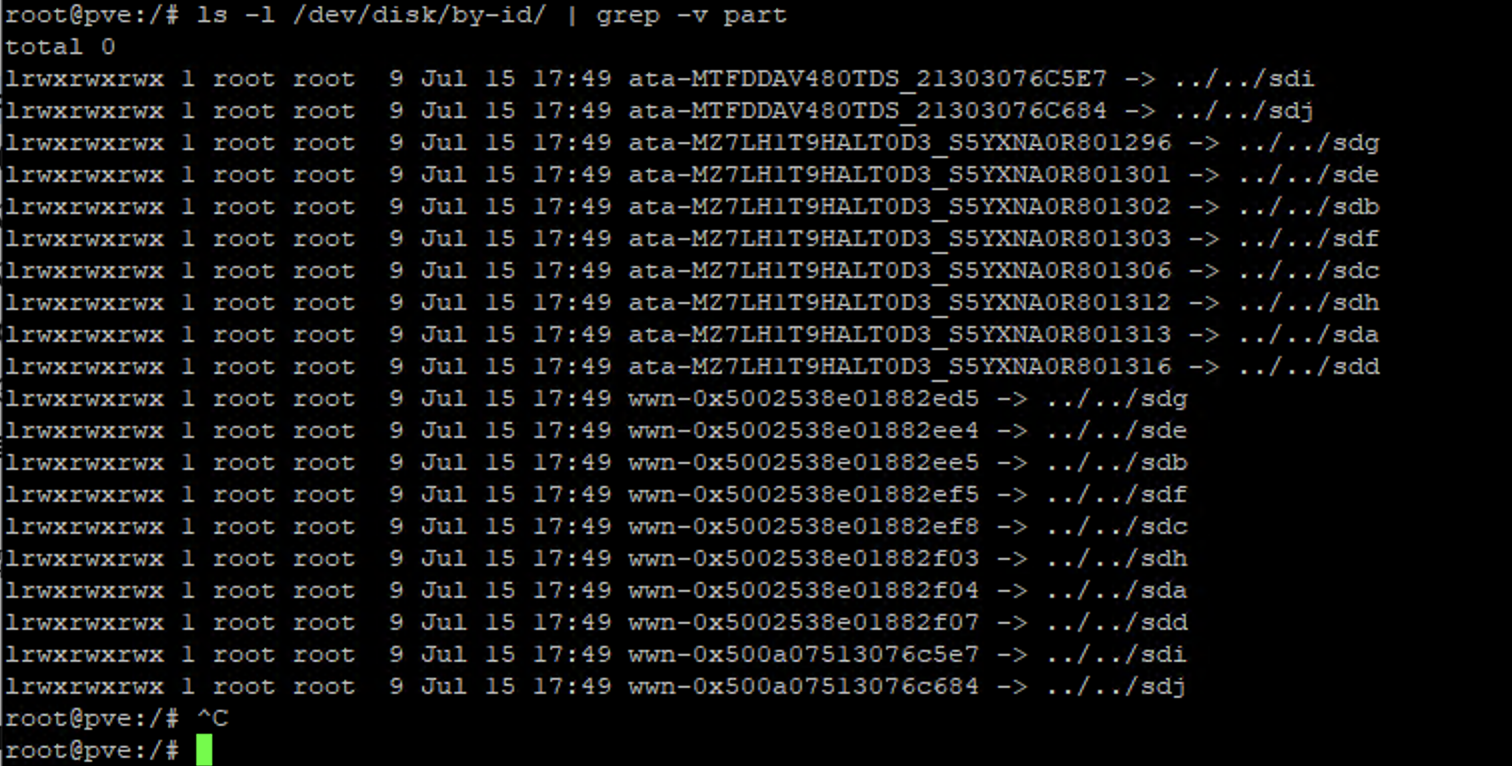

root@pve:/# ls -l /dev/disk/by-id/ | grep -v part total 0 lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MTFDDAV480TDS_21303076C5E7 -> ../../sdi lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MTFDDAV480TDS_21303076C684 -> ../../sdj lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 -> ../../sdg lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 -> ../../sde lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 -> ../../sdb lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 -> ../../sdf lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 -> ../../sdc lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 -> ../../sdh lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 -> ../../sda lrwxrwxrwx 1 root root 9 Jul 15 17:49 ata-MZ7LH1T9HALT0D3_S5YXNA0R801316 -> ../../sdd root@pve:/#
Prepare the Disks
Disks that previously belonged to another system carry partition tables or filesystem signatures that prevent pool creation. Clear each of the eight data disks.
This is irreversible and there is no undo. Before running these commands, confirm each by-id name is one of your eight data disks and is not one of the two rpool disks identified above. In this example, rpool uses the two MTFDDAV480TDS disks; the eight MZ7LH1T9HALT0D3 disks are the data disks.
Run the following three commands against each data disk. Substitute your own by-id names:
wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801316 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801316 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801316
|
Command |
Purpose |
|---|---|
|
|
Removes filesystem and partition-table signatures. This is what allows |
|
|
Destroys both the primary GPT and the backup GPT at the end of the disk. |
|
|
Issues a full TRIM, returning the SSD to a clean state. Recommended on repurposed hardware, but not required for pool creation. |
wipefs may report nothing on a disk that is already clean; sgdisk will still report that GPT data structures were destroyed. Both outcomes are normal.

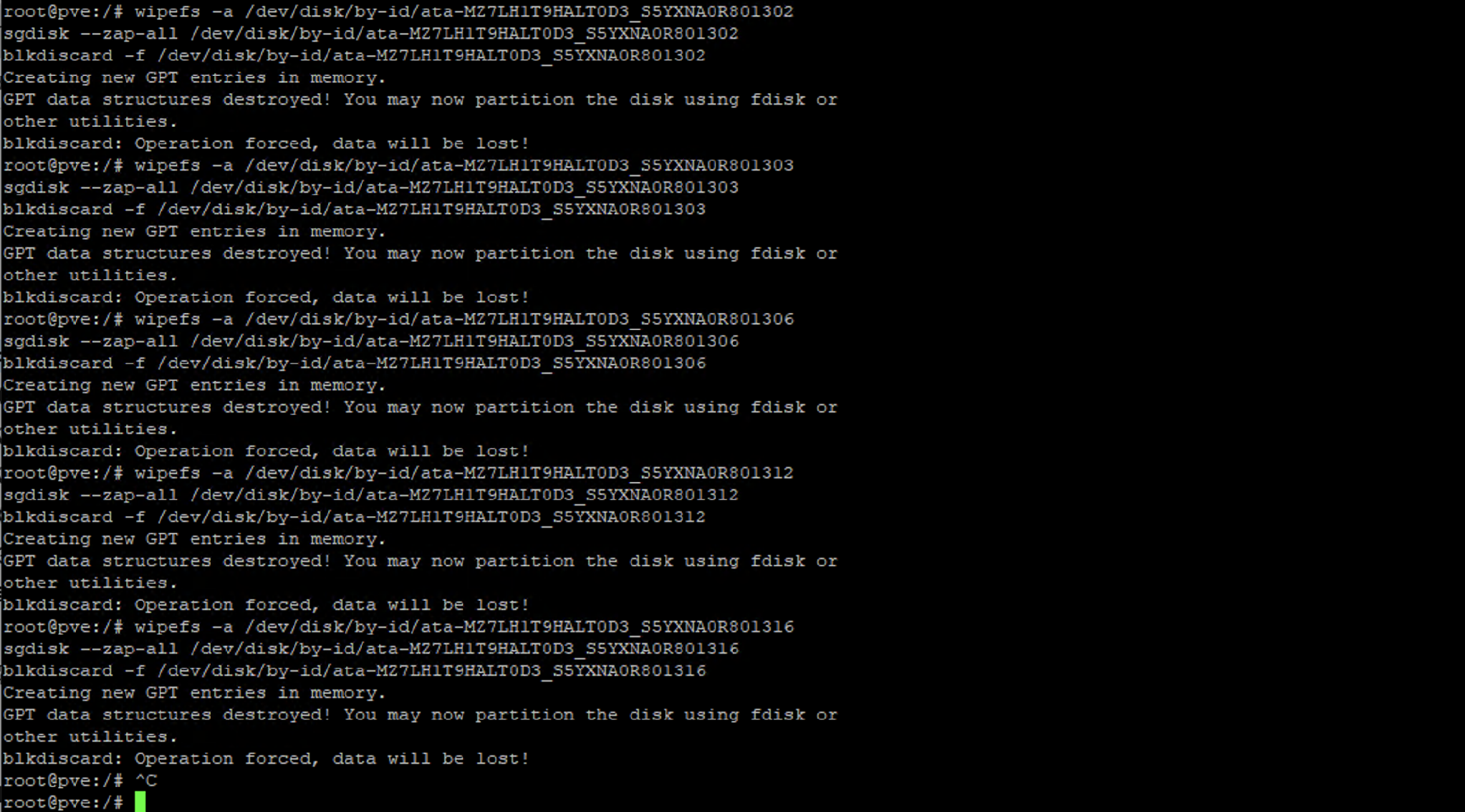

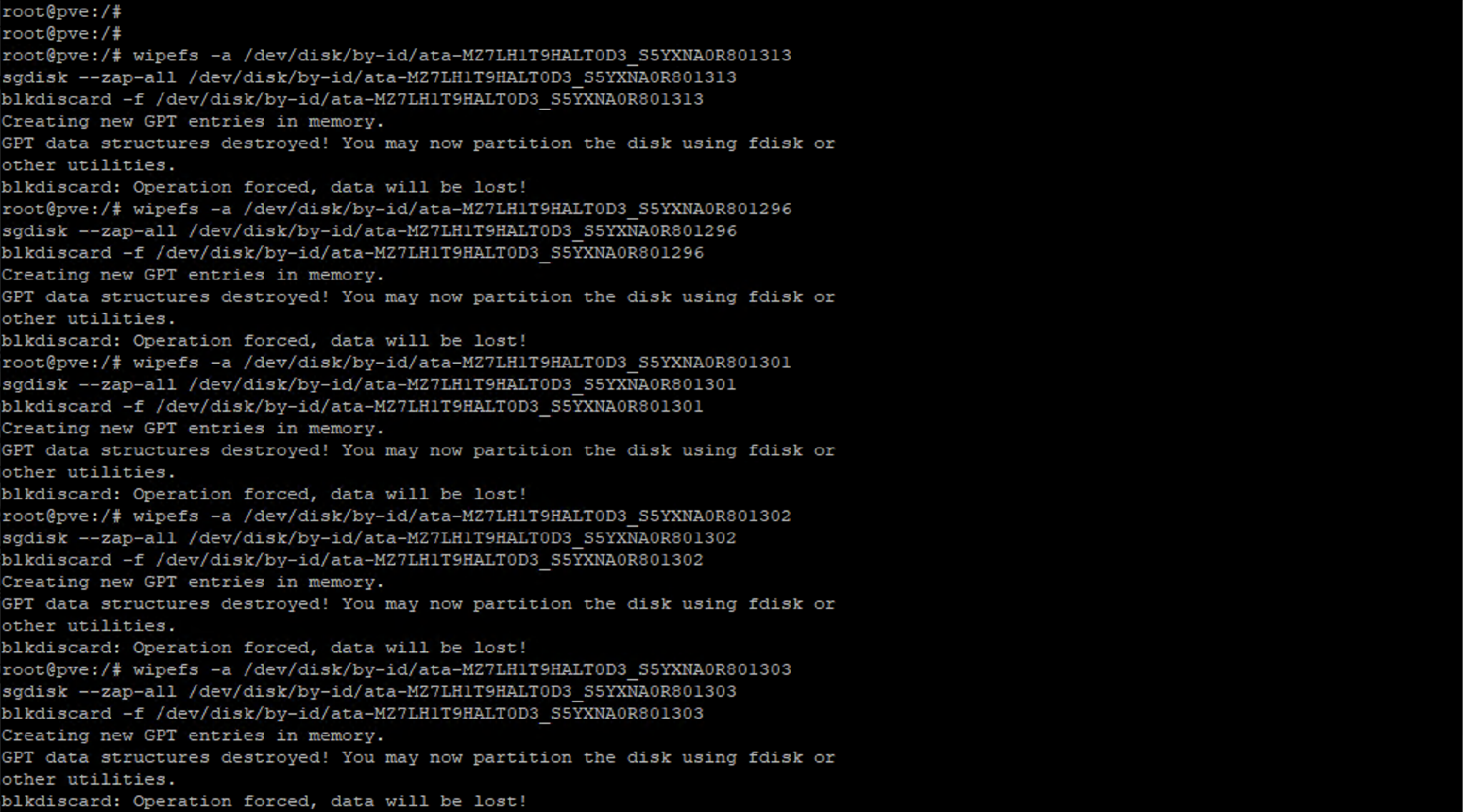

Example output for one disk:
root@pve:/# wipefs -a /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 sgdisk --zap-all /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 blkdiscard -f /dev/disk/by-id/ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 Creating new GPT entries in memory. GPT data structures destroyed! You may now partition the disk using fdisk or other utilities. blkdiscard: Operation forced, data will be lost! root@pve:/#
Create the Storage Pools
# VM system disk pool -- one disk zpool create -o ashift=12 -o autotrim=on -O compression=lz4 -O atime=off vmstore ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 # Data Lake data pool -- striped across the remaining seven disks zpool create -o ashift=12 -o autotrim=on -O compression=lz4 -O atime=off datalake \ ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 \ ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 \ ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 \ ata-MZ7LH1T9HALT0D3_S5YXNA0R801316
Listing devices with no mirror or raidz keyword creates a stripe — each disk becomes its own vdev and ZFS stripes data across all of them.
Settings and rationale:
|
Setting |
Value |
Why |
|---|---|---|
|
ashift |
12 |
4K sector alignment, correct for all modern SSDs. |
|
autotrim |
on |
Returns freed blocks to the SSD automatically. |
|
compression |
lz4 |
Early-abort algorithm — negligible CPU cost, never slower on incompressible data. Elasticsearch compresses its own data, so expect a modest ratio (~1.1–1.2×) rather than the higher figures quoted for OS disks. |
|
atime |
off |
Removes a metadata write on every read. |
Pool creation must be performed from the command line. The Proxmox VE web interface does not provide a striped option — its RAID Level dropdown offers only Single Disk, Mirror, RAID10, RAIDZ, RAIDZ2, RAIDZ3, and dRAID variants, and Single Disk accepts exactly one device (selecting more returns please give only one disk for single disk mode).
Register the Pools with Proxmox
pvesm add zfspool vmstore --pool vmstore --content images,rootdir pvesm add zfspool datalake --pool datalake --content images,rootdir
Omitting --sparse satisfies Stellar Cyber's thick provisioning requirement: zvols created on these storages carry a full reservation and cannot oversubscribe the pool.
Verify

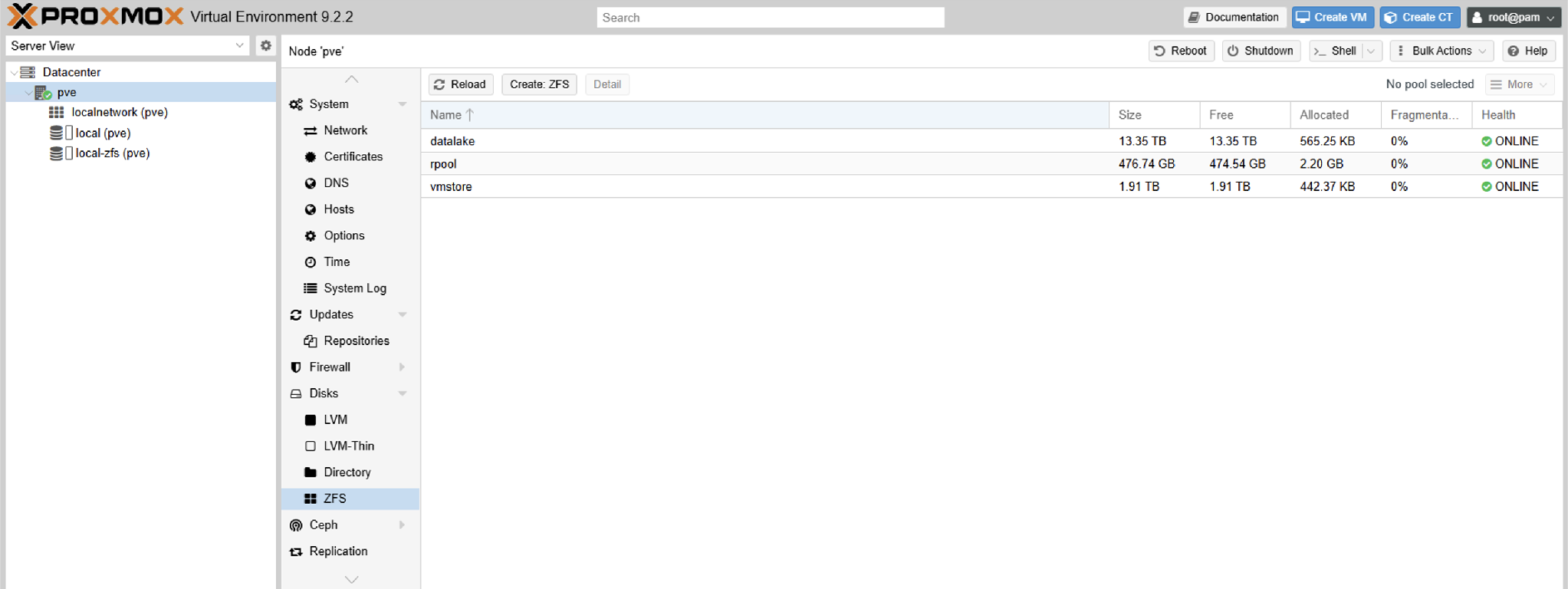

zpool status vmstore datalake zpool list pvesm status
zpool status should list vmstore with one device, and datalake with all seven disks as individual vdevs — each ONLINE, with no mirror-N or raidz-N groupings.

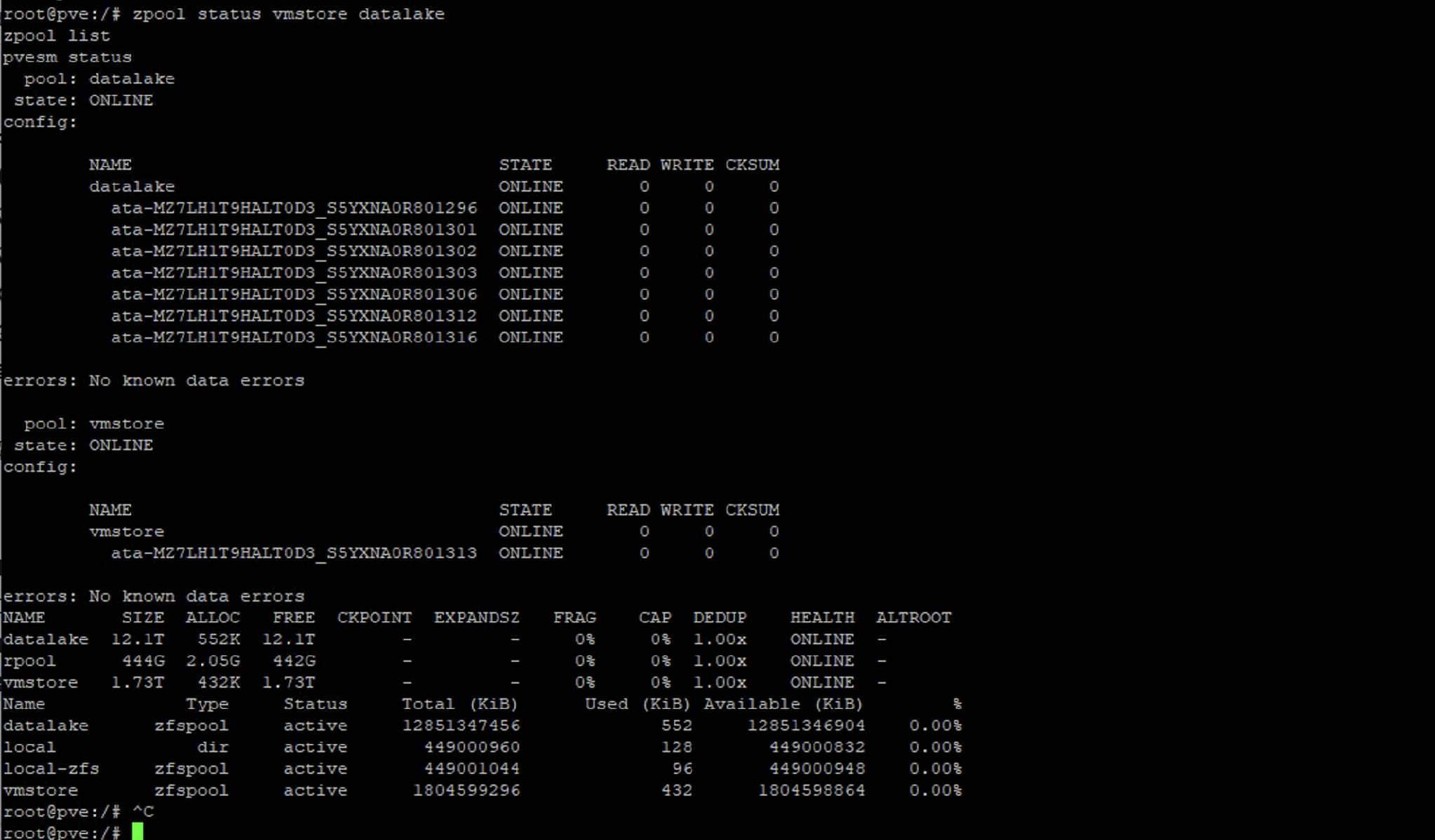

root@pve:/# zpool status vmstore datalake
pool: datalake
state: ONLINE
config:
NAME STATE READ WRITE CKSUM
datalake ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801296 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801301 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801302 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801303 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801306 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801312 ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801316 ONLINE 0 0 0
errors: No known data errors
pool: vmstore
state: ONLINE
config:
NAME STATE READ WRITE CKSUM
vmstore ONLINE 0 0 0
ata-MZ7LH1T9HALT0D3_S5YXNA0R801313 ONLINE 0 0 0
errors: No known data errors
NAME SIZE ALLOC FREE CKPOINT EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
datalake 12.1T 552K 12.1T - - 0% 0% 1.00x ONLINE -
rpool 444G 2.05G 442G - - 0% 0% 1.00x ONLINE -
vmstore 1.73T 432K 1.73T - - 0% 0% 1.00x ONLINE -
Name Type Status Total (KiB) Used (KiB) Available (KiB) %
datalake zfspool active 12851347456 552 12851346904 0.00%
local dir active 449000960 128 449000832 0.00%
local-zfs zfspool active 449001044 96 449000948 0.00%
vmstore zfspool active 1804599296 432 1804598864 0.00%
root@pve:/#
