Configuring Mimecast Connectors

This connector allows Stellar Cyber to ingest Mimecast logs and add the records to the data lake.

Mimecast integration with Stellar Cyber provides advanced threat detection and response capabilities, combining Mimecast's email security solutions with real-time threat intelligence and automated response workflows to improve incident response and threat mitigation.

There can be any number of Mimecast connectors active.

This connector uses Mimecast API 1.0.

Stellar Cyber connectors with the Collect function (collectors) may skip collecting some data when the ingestion volume is large, which potentially can lead to data loss. This can happen when the processing capacity of the collector is exceeded.

Connector Overview: Mimecast

Capabilities

  • Collect: Yes

  • Respond: No

  • Native Alerts Mapped: Yes

  • Runs on: DP

  • Interval: 5 minutes

Collected Data

Content Type

Index

Locating Records

MTA Log

Syslog



msg_class:

mimecast_email

mimecast_email_attachment_protect_log

mimecast_email_av_log

mimecast_email_impersonation_protect_log

mimecast_email_internal_email_protect_log

mimecast_email_url_protect_log

msg_origin.source:

mimecast_email

msg_origin.vendor

mimecast

msg_origin.category:

email

Domain

https://api.mimecast.com

Response Actions

N/A

Third Party Native Alert Integration Details

This connector ingests logs from Mimecast to get the raw alerts that are stored in the Syslog index.

Stellar Cyber maps Mimecast alerts. The alerts are read from the Syslog index, enriched with Stellar Cyber fields, and mapped (with de-duplication) to the Alerts index.

For details, see Integration of Third Party Native Alerts.

Required Credentials

  • App ID, App Key, Access Key, Secret Key

Locating Records

To search the alerts in the Alerts index, use the query msg_class: mimecast_*

To search the Original Records in the Syslog index, use the msg_class and alert key fields (refer to Key Fields for Third Party Native Alert Types):

  • for Attachment Protect logs: msg_class: mimecast_email_attachment_protect_log

  • for AV logs: msg_class: mimecast_email_av_log

  • for Impersonation Protect logs: msg_class: mimecast_impersonation_protect_log

  • for Internal Email Protect logs: msg_class: mimecast_email_internal_email_protect_log

  • for Receipt logs: msg_class: mimecast_email

  • for URL Protect logs: msg_class: mimecast_email_url_protect_log

               Let us know if you find the above overview useful.

Adding a Mimecast Connector

To add a Mimecast connector:

  1. Configure Mimecast logs
  2. Add the connector in Stellar Cyber
  3. Test the connector
  4. Verify ingestion

Configuring Mimecast Logs

You must configure Mimecast logs before you add the connector in Stellar Cyber.

To configure Mimecast logs:

  1. Log in to Mimecast.
  2. Follow Mimecast online instructions to download the SIEM logs .
  3. Refer to the following site (https://community.mimecast.com/s/article/Managing-API-Applications-505230018) for guidance preparing for use of the Mimecast API and gathering the info below:
    • App ID
    • App Key
    • Access Key
    • Secret Key

Refer to the following recommendations:

  • Generate the Access Key and Secret Key before adding the user to any Basic Administrator role.

  • If the Access Key and Secret Key need to be generated, first remove the user from any Basic Administrator role and add the user back after obtaining the new keys.

Adding the Connector in Stellar Cyber

To add a Mimecast connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | Integration | Connectors. The Connector Overview appears.

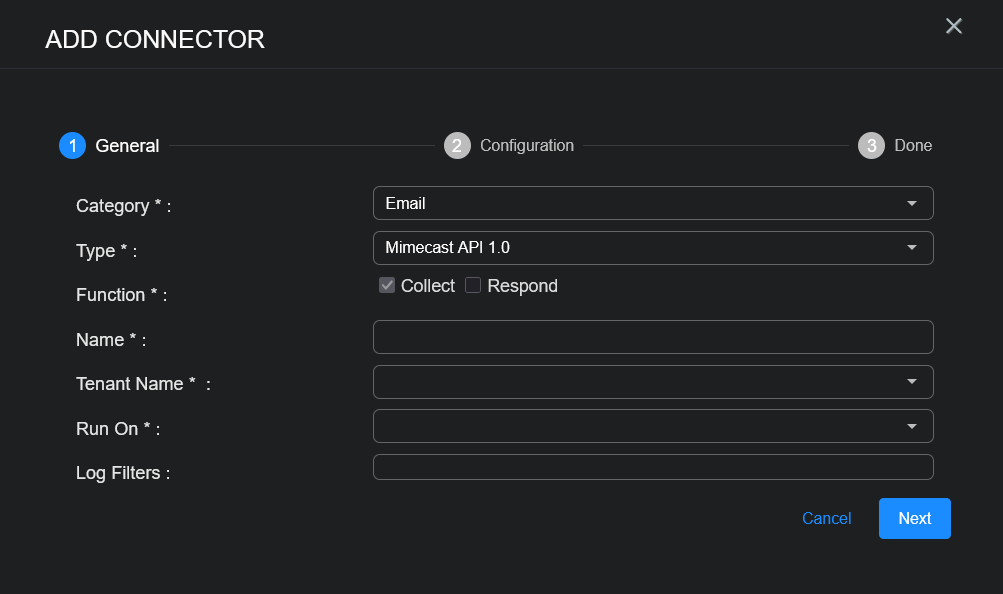

  3. Click Create. The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

    The asterisk (*) indicates a required field.

  4. Choose Email from the Category drop-down.

  5. Choose Mimecast from the Type drop-down.

  6. For this connector, the supported Function is Collect, which is enabled already.

  7. Enter a Name.

    This field does not accept multibyte characters.

  8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

  9. Choose the device on which to run the connector.

  10. (Optional) When the Function is Collect, you can create Log Filters. For information, see Managing Log Filters.

  11. Click Next. The Configuration tab appears.

    The asterisk (*) indicates a required field.

  12. Enter the App ID you copied earlier.

  13. Enter the App Key you copied earlier.

  14. Enter the Access Key you copied earlier.

  15. Enter the Secret Key you copied earlier.

  16. Enter the Administrator Email.

  17. Choose the Content Type you would like to collect. The logs for MTA Log are supported.

  18. Click Next. The final confirmation tab appears.

  19. Click Submit.

    To pull data, a connector must be added to a Data Analyzer profile if it is running on the Data Processor.

The new connector is immediately active.

A new Mimecast connector automatically collects logs for the last 7 days. It can take a few days for the logs to be current.

Testing the Connector

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates only the authentication / connectivity; it does not validate data flow).

For connectors running on a sensor, Stellar Cyber recommends that you allow 30-60 seconds for new or modified configuration details to be propagated to the sensor before performing a test.

  1. Click System | Integrations | Connectors. The Connector Overview appears.

  2. Locate the connector that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:



Verifying Ingestion

To verify ingestion:

  1. Click Investigate | Threat Hunting. The Interflow Search tab appears.
  2. Change the Indices to Syslog. The table immediately updates to show ingested Interflow records.
