Working with Cases (Including Case Queues)

The Cases view lets you manage cases generated by Stellar Cyber. A case is a set of multiple correlated alerts and entities constituting a potential unified security attack, ranked by a dynamically updated score indicating the severity of the attack. Stellar Cyber uses its machine-learning capabilities to generate cases automatically, grouping related alerts into a unified case for improved attack resolution. In addition, you can also create your own cases from any table that includes alerts (for example, Threat Hunting or Dashboards | PREDEFINED | Analyst View).

Case Queues is an Early Access Program (EAP) feature. If you do not see Case Queues on the Cases page in your UI, the feature is not enabled in your environment. For information about the standard Cases page without Case Queues, see Working with Cases.

Cases offer the following benefits:

• Streamlined workflows matching standard security analyst procedures.

• Enact case-specific responses recommended by Stellar Cyber (for example, blocking an IP address) directly within the Case interface.

• Use Case Queues to focus the case displays on just those cases matching a specific workflow or role.

• Evidence Locker lets you store emails, PDFs, CSV files, and links to bolster your case.

• Full export capabilities let you share cases with executive staff.

• Case Activity log tracks all events related to a case, providing a detailed audit trail.

• Optional integration with ServiceNow lets you use Stellar Cyber cases and alerts together with your existing help desk and ticket management solution.

Cases evolve in real time as new alerts are discovered and associated with an attack, either automatically by machine learning or manually by a user. You can use cases as part of your standard SOC workflows to direct a proactive response to ongoing security issues, ensuring they are assessed, assigned, tracked, and resolved.

This article covers the following subjects related to cases in Stellar Cyber:

• Introducing the Cases Display

• Using Case Queues

  • Configuring Case Queues

  • Working with Case Queues

• Using the Cases Table

  • Searching the Cases Table

  • Filtering the Cases Table

  • Using the Cases Table

  • Performing Bulk Actions in the Cases Table

  • Standard Functionality in the Cases Table

• Configuring Case Settings

  • Setting Case Properties

  • Setting Correlation Options

  • Configuring Case Filters

  • Working with Case Queues

• Drilling to the Case Detail Page

• Displaying Cases from Event Details

• About Case Retention

Refer to Understanding Cases for a detailed discussion of how cases are created and correlated.

Introducing the Cases Display

The Cases display consists of the following main components:

• Case Queues – The Case Queues panel is at the left of the Cases display and lists the configured case queues. A case queue is a display filter that focuses the case displays on just those cases that match specified criteria (tenancy, status, severity, tags, and so on), ensuring that teams see the cases that matter to them without being overwhelmed by those that do not.

• Cases Table – The Cases table is your starting point for working with cases. It provides a table of all cases in the selected Case Queue and time range with sortable and customizable columns. You can select any case to drill to its detail page. You can also use the filters at the left of the page to focus your work on cases that meet specified criteria.

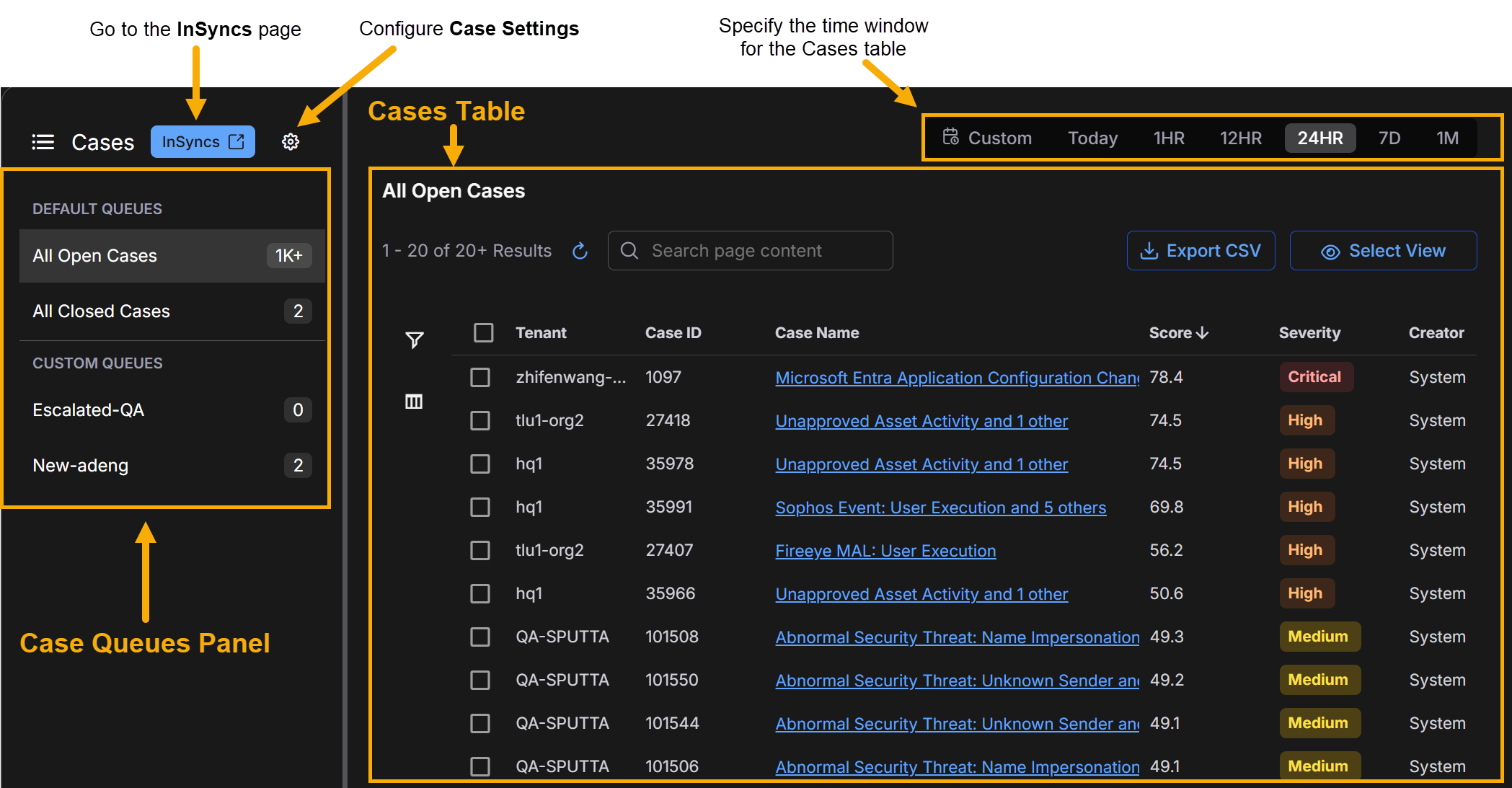

The figure below illustrates the organization of the Cases display:

Using Case Queues

Case management queues let you organize cases into logical groups based on configurable rules or manual assignment. Each queue can represent a grouping by tenant, region, severity, SOC team, shift, subject matter expertise, and similar criteria. Analysts are assigned to specific queues and see only the cases within those queues, which reduces noise and helps them focus. A case can appear in multiple queues if it matches the conditions defined for each queue.

Configuring Case Queues

The following procedure describes how to create, define, and manage case queues. These steps are typically performed by administrators who need to segment case visibility and assign cases to analysts or teams based on specific operational requirements.

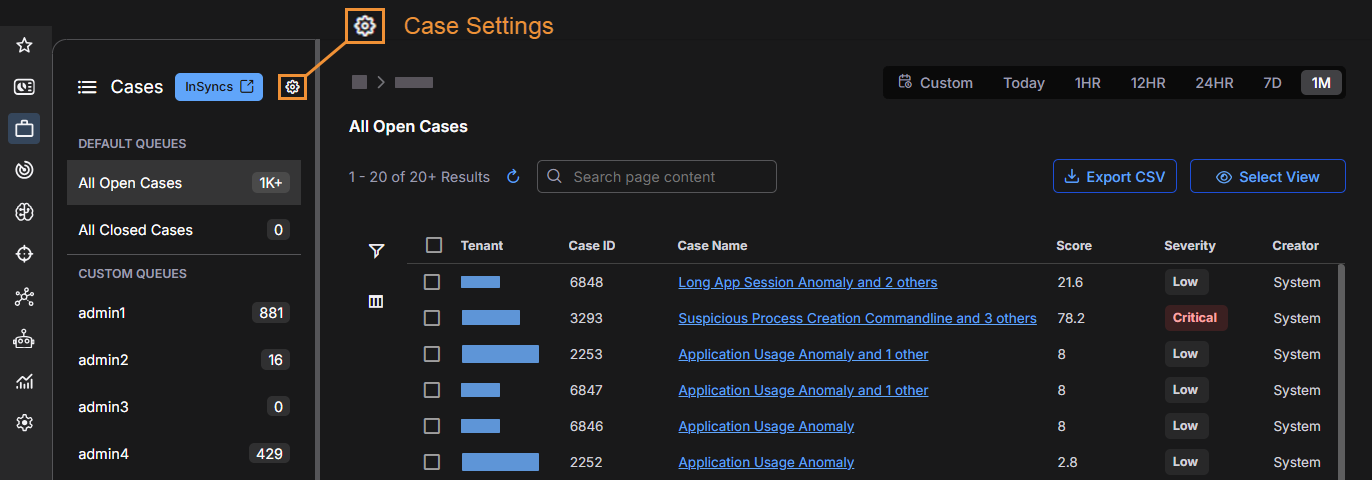

1. Go to Cases and open the Case Settings panel by selecting the gear icon located near the top of the narrow left panel on the Cases page.

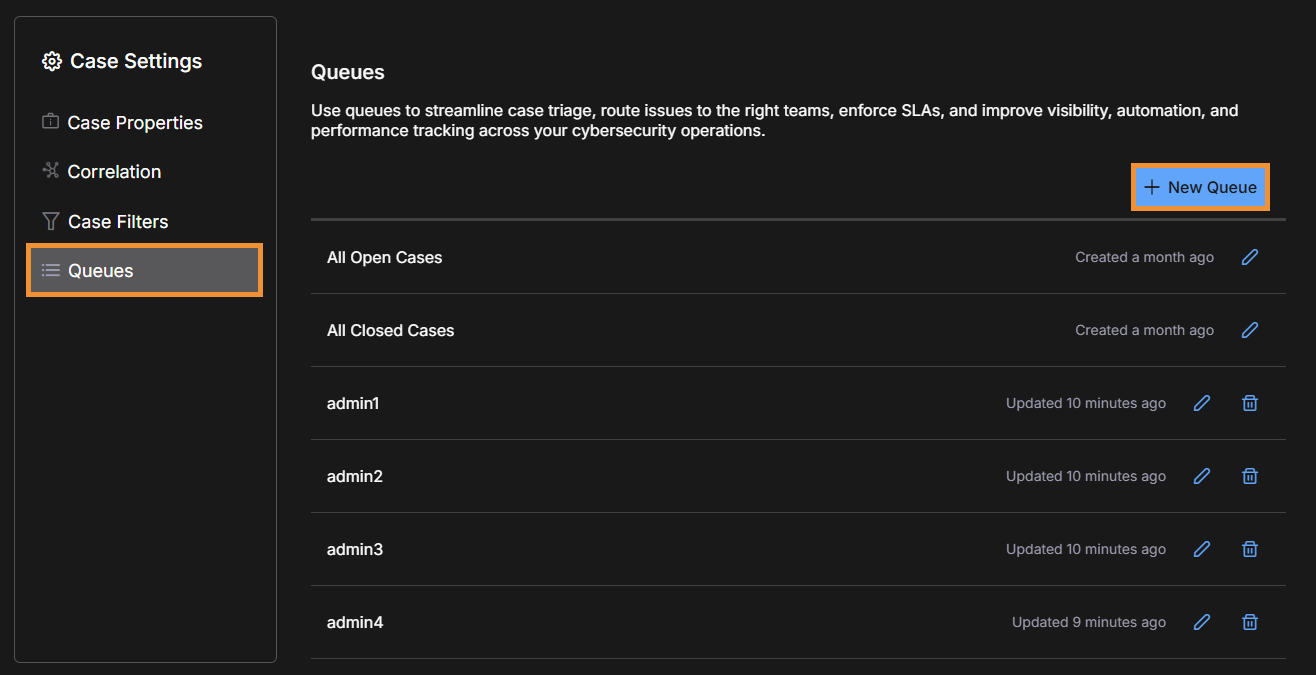

2. In the Case Settings panel that appears, select the Queues tab and then select New Queue to open the queue builder.

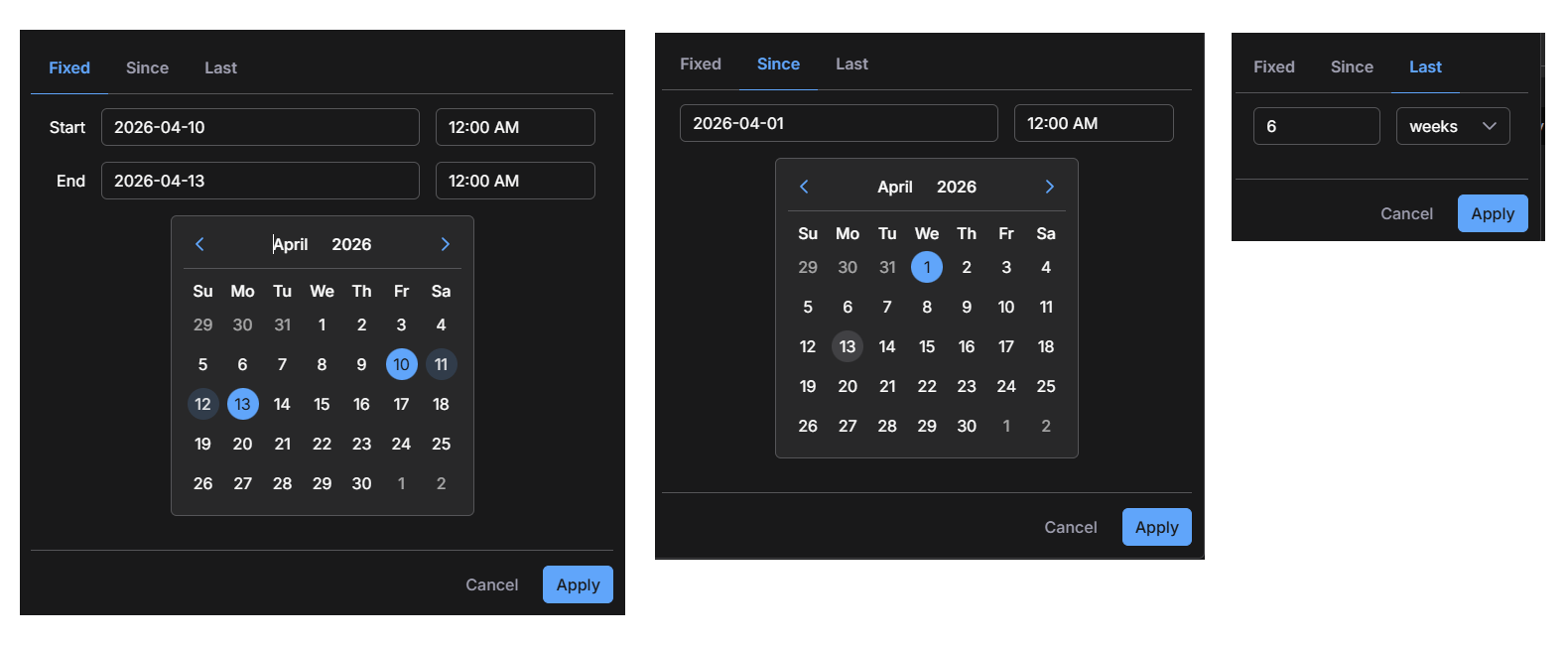

3. Name the queue, choose the tenant scope and date range to define which cases the queue evaluates, and, optionally, enter a description.

   • For custom queues, the standard date range options extend from last 15 minutes through this past month. The default date range is this past week.

     If you require different date ranges than these, contact Stellar Cyber Customer Success.

   • When a queue is created or updated, Stellar Cyber performs re-indexing, which means it re-evaluates all existing cases in the selected time frame to determine which ones match the defined conditions. Selecting a longer time range increases the number of cases that must be re-evaluated, which can result in longer indexing times. When this occurs, a system message appears to notify you that the queue might take additional time to complete.

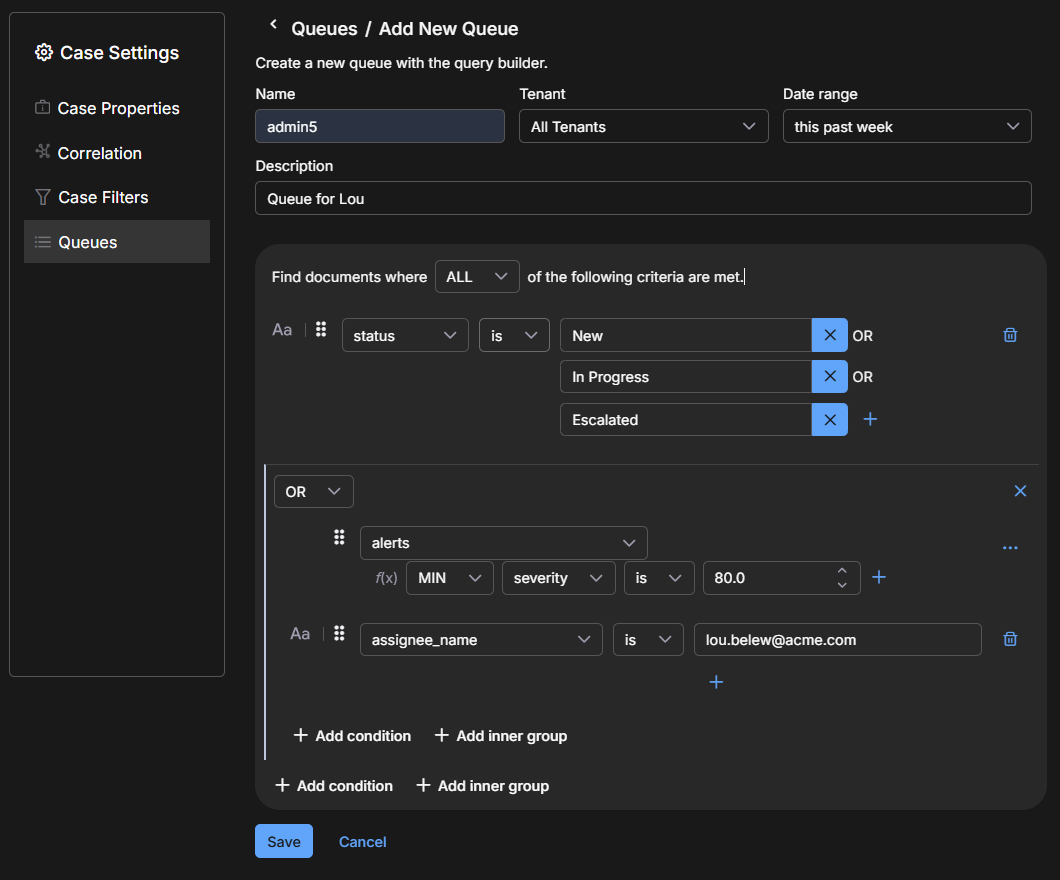

4. Define the queue conditions and then select Save to add the queue:

   • Select Add condition and choose from the same case fields available in case filters.

     When you include an assignee as a condition in a case queue definition, be careful that the field is appropriate for the value you enter. Use assignee_name when you enter the assignee’s display name, such as a name or email address shown in the UI. Use assignee when you enter the assignee’s internal user ID. If you choose assignee_name and then enter a user ID, or if you choose assignee and then enter a display name, the queue will not return any results because the field and value are mismatched.

   • By default, new queues include the condition status is New OR In Progress OR Escalated.

   • You can modify or remove this condition as needed. This default ensures that initial queue results focus on cases that require attention—new, actively investigated, or escalated—so analysts can prioritize triage and response.

   • Use Add inner group to create grouped conditions (inner groups) that act as logical subfilters for more complex matching.

   • You can combine conditions and inner groups with AND/OR/NOT logic.



5. Repeat for additional queues as needed, up to the system limit of 20.

   To increase this limit, contact Stellar Cyber Customer Success.

6. Wait for the indexing process to complete.

   After a queue is created, Stellar Cyber indexes existing cases to identify which ones meet the defined conditions before displaying counts. The indexing process ensures the queue view reflects all eligible cases within the defined time range. When queue conditions are later modified, re-indexing occurs when related case data changes, such as when alerts are added or case attributes are updated. The queue count updates automatically once indexing is finished.

7. Communicate to analysts which queues they should use and their intended purpose.

   This is often done through SOC team briefings, documentation, or messaging.

Using the Cases Table

Cases matching the selected Case Queue and time range are shown in a sortable Cases table with customizable columns. By default, the All Open Cases queue is selected. The name of the Cases table changes to match the selected Case Queue.

You can select any case to drill to its detail page. You can also use the filters at the left of the table to focus your work on cases that meet specified criteria.

The tabular view lists each case on its own row with the following default columns:

• Tenant – The tenant with which this case is associated.

• Case ID – The system-assigned number for the case.

• Case Name – Stellar Cyber automatically assigns a name to each case it reports. You can either accept the default name or supply your own in the Case Detail view.

• Score – Stellar Cyber assigns scores to cases based on how critical they are. A case score updates in real time as events and entities are added to or removed from the case. Scores are color-coded to indicate the seriousness of the case.

• Severity – The severity of a case: Critical (75 and higher), High (50–74), Medium (25–49), or Low (1–24). Severity automatically changes with the case score until it is changed manually in the Case Detail view. Once you manually edit the severity of a case, it no longer updates automatically based on the case score. Severity indicators are color-coded to direct your attention to more serious cases.

• Creator – The user account that created the case. Cases created by Stellar Cyber are listed with a creator of System.

• What – The Tactic or Technique for the alert with the highest severity associated with this case.

• Who – The users and hosts associated with the case. You can find details on the observables for the case in the Analysis tab on the Case Detail page.

• Assignee – The assignee for the case, if any. Cases can be assigned to resources in the Case Detail view or by selecting the check box for a case at the left of the table and using the bulk edit controls that appear at the top of the table.

You can change the columns in the Cases table using the Column selector described in Changing the Columns in the Cases Table.

Searching the Cases Table

The Cases table includes a Search tool at the top of the display that lets you perform a text-based search using Lucene syntax for a specified value. Keep in mind the following when searching Cases:

• The data returned by the search is limited to just those entries that pass the current Case filters.

• The search is performed across all available pages of cases, not just the currently displayed page. For example, if there are three pages of 20 cases available in the Current Cases table, matches can be found on any of the three available pages, regardless of the sort order.

Not All Fields Supported for Searching

Filtering the Cases Table

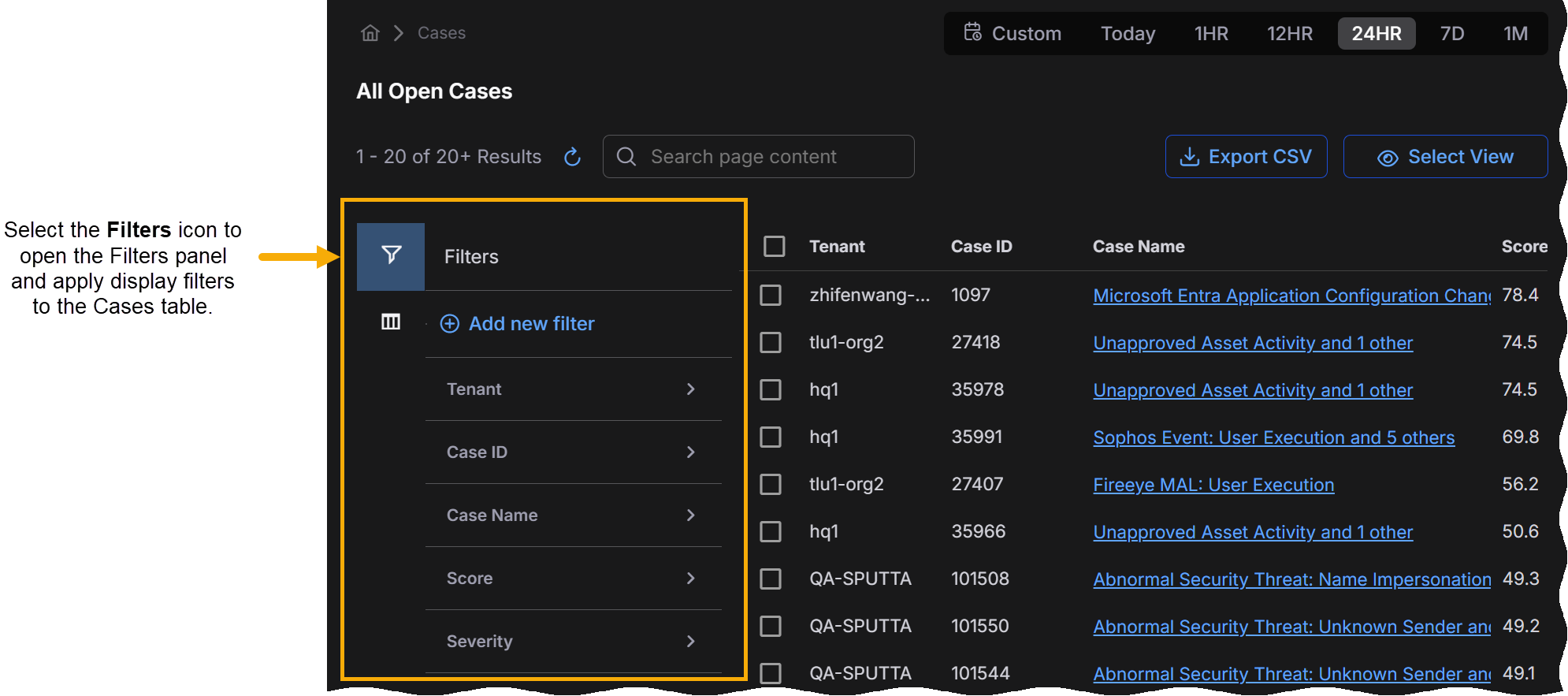

Select the standard Filters icon at the left of the Cases table to open the Filters panel, where you can set display filters that focus the display on just those cases matching the criteria you supply.

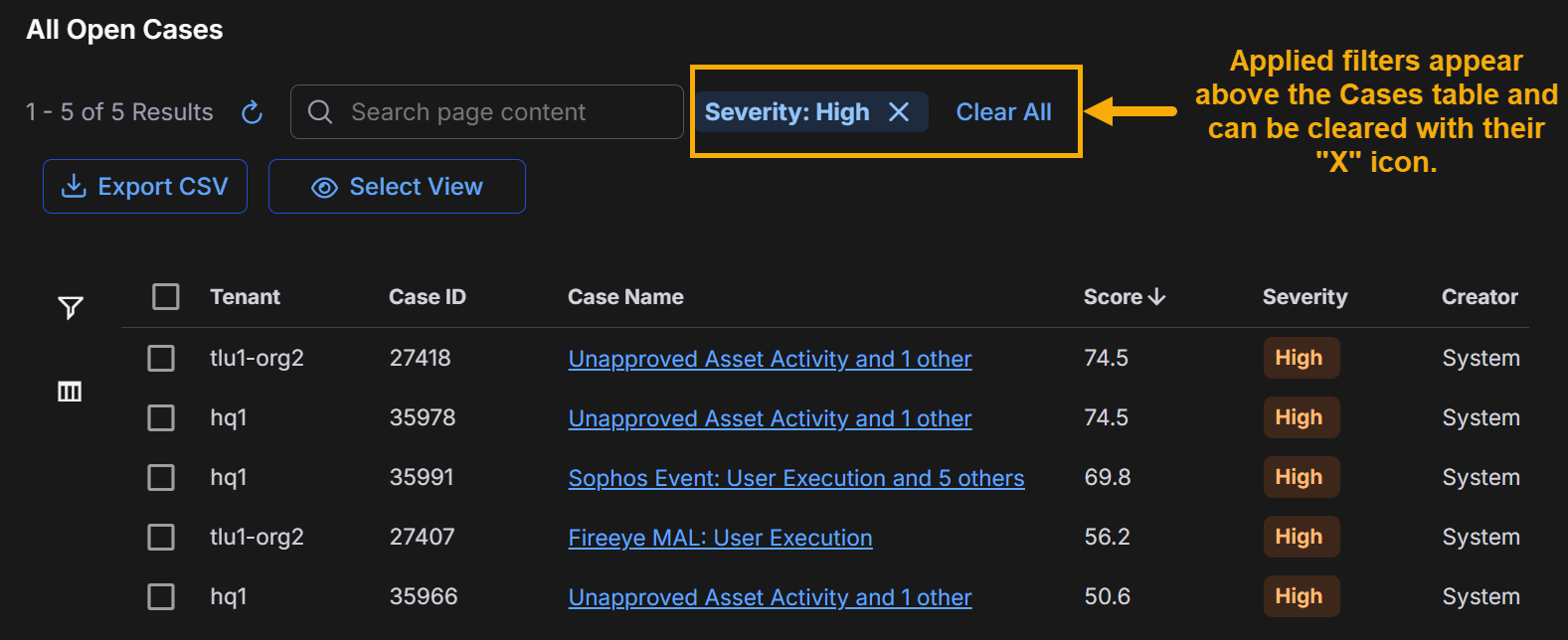

Applied filters are summarized at the top of the Cases table and can be cleared by clicking the X in their entries. You can also use the Clear All button to clear all applied display filters.

Changing the Columns in the Cases Table

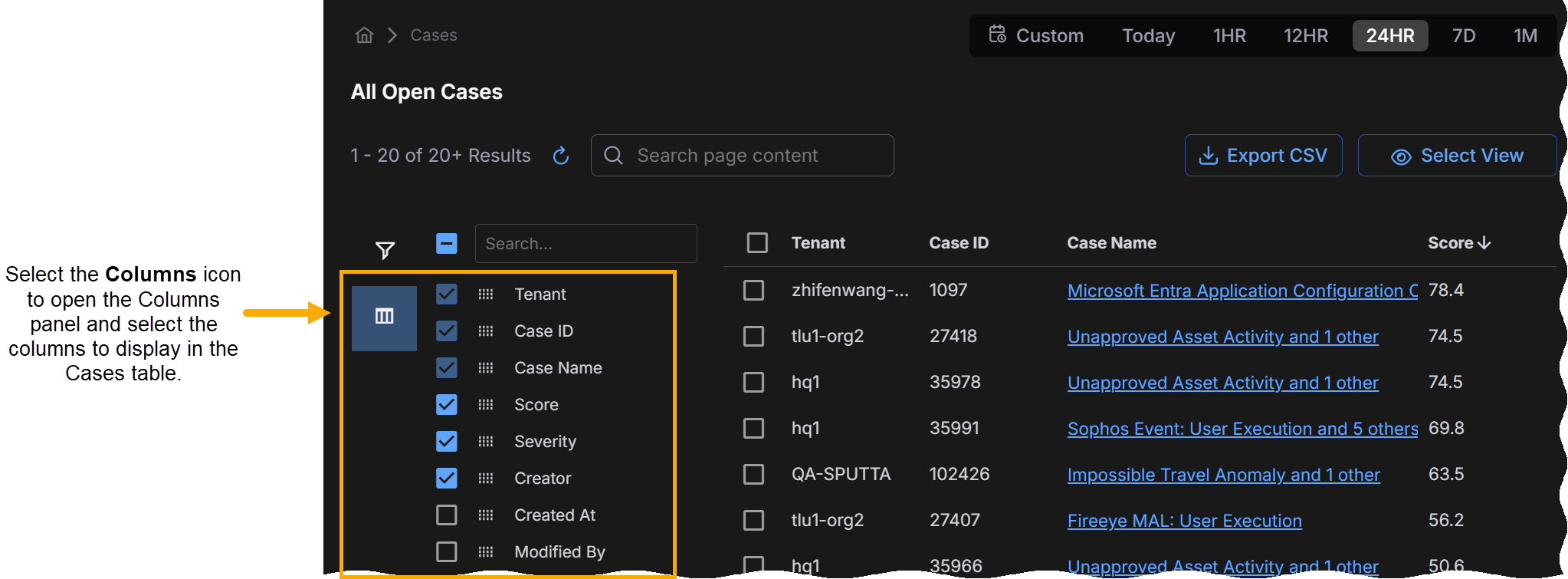

You can change the columns in the Cases table by selecting the Columns button at the left of the table to toggle open a panel where you can choose the columns to display.

The Tenant, Case ID, and Case Name columns always appear in the Cases table. You can check the boxes for any additional columns to include in the table.

Not All Columns Supported for Sorting

Performing Bulk Actions in the Cases Table

The Cases table supports bulk edits to the Status, Tags, or Assignee of multiple cases. Use the following procedure:

1. Select one or more cases in the Cases table by checking their boxes at the left of the table.

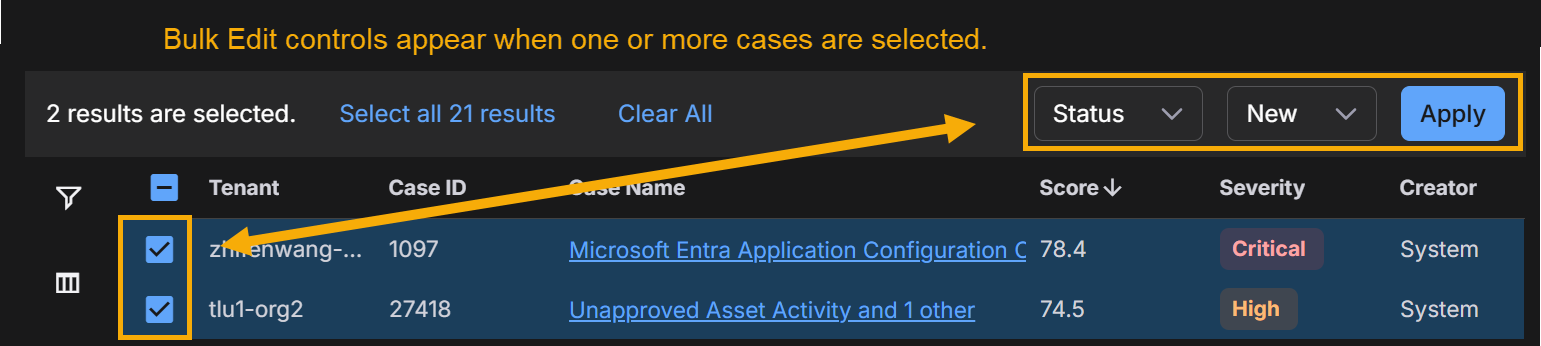

   New Bulk Edit controls appear at the top of the table, as illustrated below:



2. Select the type of Bulk Action want to perform from the dropdown:

   • Status – The adjacent dropdown lets you select any of the standard Case statuses (Escalated, New, In Progress, Resolved, or Cancelled).

     Once the status of a case has been changed to either Resolved or Cancelled, Stellar Cyber no longer associates new alerts with it. Instead, new alerts are either used to create a new case or associated with a different open case.

   • Tags – The adjacent dropdown lets you select from any existing tags. You can also type in a new tag.

   • Assignee – The adjacent dropdown lets you select any existing user available to your tenancy.

3. Select Apply to apply your bulk action to the selected cases.

Keeping Track of Bulk Actions

Once you apply a bulk action to one or more cases, Stellar Cyber displays a success or failure message at the top of the display and keeps track of its progress in the Task List.

Here's an example of a Bulk Action that was successfully applied:

You can display the Task List using its icon at the top of the display, as illustrated below. The Task List keeps track of the progress, success, or failure of any bulk actions performed from the Current Cases table, as well as any other ongoing Stellar Cyber activities. Depending on the number of cases affected by a bulk action, it make take a few seconds for the action to complete. The Task List is useful in these situations, letting you see the progress of the action. Here's how you display the Task List, complete with some successful bulk actions:

You can clear individual tasks from the list using the standard close button at the upper right of their entries in the list. Clear all of the tasks using the Clear all link at the top of the list.

Standard Functionality in the Cases Table

The Cases table offers standard table functionality, including the ability to sort on a column, pin columns, autosize columns, reset column sizes, Export as CSV, or Change Columns.

Configuring Case Settings

Users with a root user scope and RBAC privileges to change user interface settings can select the Settings icon at the top of the Case Queues panel and make global changes that affect all cases. You can set Case Settings in the following tabs:

• Case Properties - Set case visibility and alert closure options.

• Correlation – Configure case correlation behavior.

• Case Filters – Configure case suppression logic to determine which cases are created.

• Queues – Configure customizable case queues that use detailed filter criteria to display cases specific to different roles, departments, workflows.

Refer to Understanding Cases for a detailed discussion of how cases are created and correlated.

Adjusting the Maximum Alerts per Case

Only root users with the privilege to edit Settings can change this value. The change applies globally to all system-created cases.

The Alerts Per Case setting lets you define the maximum number of alerts that can be grouped into a single case. By default, the value is set to 5,000 alerts, but you can adjust the limit anywhere between 1 and 5,000.

When the specified maximum is reached, additional alerts that would normally be added to the case are instead placed in a new case. This prevents individual cases from becoming too large and consuming unnecessary computation resources.

Changing this value can help you balance case manageability with correlation accuracy:

• Lowering the value breaks up large cases into smaller ones, improving performance and making them easier to investigate. This is especially useful in environments with noisy alerts, such as custom ATH detections.

  Be cautious when reducing the maximum. If the value is set too low, related alerts may be split across multiple cases, which can obscure the full context of an incident.

• Raising the value allows more alerts to be grouped together, preserving context across a large attack campaign, but can result in slower performance and more difficult case triage.

When you change the Alerts Per Case setting, the new maximum takes effect immediately. The new alert-per-case maximum only applies to cases going forward, so that any existing cases that exceed the new maximum remain unaffected by the change. For example, if there is an existing case with 4,500 alerts and you change the maximum to 4,000 alerts per case, this case continues to hold 4,500 alerts, even though it exceeds the new maximum. However, any new alerts that would otherwise have gone into this case are placed in a new case instead.

Configuring Case Filters

You can use case filters to control the automatic creation of cases by defining specific conditions under which Stellar Cyber suppresses their creation. Instead of generating a case for every group of related alerts, you can use case filters to prevent the creation of cases that are low risk, expected, or otherwise unimportant. This reduces case volume and helps you focus attention and resources on the alerts that matter most. This targeted suppression allows your team to maintain a streamlined, relevant case queue and reduce alert fatigue.

In the Case Settings section, you can create new filters, edit existing ones, or delete filters that are no longer needed. For detailed information about case filters, see Using Case Filters and the Filter Builder.

Drilling to the Case Detail Page

You can select a case entry in the Cases table to drill to the Case Detail view for the corresponding Case.

Displaying Cases from Event Details

In addition to accessing the Cases table from the Cases menu, you can also display a filtered Cases table from the Cases list in the Event Details view for an alert.

The Cases list shows cases associated with the selected alert in descending order by score, up to a maximum of five. You can select the View All (x) link at the upper right of the list to open a new tab with a filtered view of the Case summary page showing just those cases associated with the selected alert. You can also select the entry for an individual case in the list to open its associated Case details page. The figure below shows the Cases list from the Event Details view of an alert:

About Case Retention

To control the number of stored cases and improve the overall performance of case queries, Stellar Cyber stores a case for a maximum of one year from the time of its last update.
