Configuring Check Point Firewall Connectors

You can connect Stellar Cyber to firewalls so that you can quickly and easily implement firewall rules on those firewalls from within Stellar Cyber, while you are threat hunting.

Checkpoint integration with Stellar Cyber provides real-time visibility into network security events and enables automated incident response workflows to contain and mitigate threats.

You can configure firewall actions or manually trigger the Block IP firewall action from the event display.

Connector Overview: Check Point Firewall

Capabilities

  • Collect: No

  • Respond: Yes

  • Native Alerts Mapped: No

  • Runs on: DP or Sensor

  • Interval: N/A

Collected Data

N/A

Domain

https://<Device IP Address>:<Device Port>

where <Device IP Address> and <Device Port> are variables from the configuration of this connector

Response Actions

Action

Required Fields

Block IP

srcip or dstip

Third Party Native Alert Integration Details

N/A

Required Credentials

  • User Name, Password, Device IP Address, Device Port, Source IP Group, Destination IP Group, Domain, and Policy Package Name

               Let us know if you find the above overview useful.

Adding a Check Point Firewall Connector

To add a Check Point firewall connector:

  1. Configure a Check Point Firewall connector
  2. Verify Check Point Firewall API access
  3. Add the connector in Stellar Cyber
  4. Test the connector

Configuring a Check Point Firewall Connector

To configure Stellar Cyber's Check Point Firewall connector actions requires that you have:

  • Verified your Check Point Firewall has API access enabled

  • Obtained the following data from your Check Point Firewall Configuration:

    • User name and password

    • Device IP address and port number

    • Source IP group

    • Destination IP group

    • Domain

    • Policy package name

Verifying Check Point Firewall API Access

Use the following procedures to configure network groups that will be used by the Stellar Cyber Data Processor when it takes a firewall action. You also need to enable the management API server.

Adding a New Host

To add a new host (for example, StellarCyber_Unused_Address):

  1. Log in as an administrative user to your Check Point Security Management Server with Check Point's SmartConsole application.

  2. From the SmartConsole, open the Object Explorer.

  3. Choose New | Host.

  4. In New Host, enter an IP address that is not normally used in the network.

  5. Click OK.

Adding Network Groups

To configure two network groups containing the new host (for example, StellarCyber_SrcGrp and StellarCyber_DstGrp):

  1. From the SmartConsole, open the Object Explorer.

  2. Choose New | Network Group.

  3. In New Network Group, enter a name for the first group, such as StellarCyber_SrcGrp.

  4. For each Host you want to monitor in this group, click the [+] sign and select it from the displayed list of network objects.

  5. Click OK.

  6. Choose New | Network Group again.

  7. In New Network Group, enter a name for the second group, such as StellarCyber_DstGrp.

  8. For each Host you want to monitor in this group, click the [+] sign and select it from the displayed list of network objects.

  9. Click OK.

Adding Policy Rules

To configure policy rules:

  1. Navigate to SECURITY POLICIES | Access Control | Policy.

  2. Add new policy rules on the top. Also add the management services, such as SSH and HTTPS, to be accepted.

  3. Choose Publish session.

  4. Then choose Install policy.

Enabling the Management API Server

  1. Navigate to MANAGE & SETTINGS | Blades.

  2. Under Management API, choose Advanced Settings.

  3. In the Advanced Settings window:

    • Under Startup Settings, ensure that Automatic start is selected

    • Under Access Settings, click either All IP addresses that can be used for GUI clients or All IP addresses.

  4. Click OK.

  5. To apply the changes, publish and restart the Management API server with api restart.

  6. Click OK.

  7. Log in to the Check Point firewall via SSH and type api restart.

Adding the Connector in Stellar Cyber

To add a new Check Point firewall connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | Integrations | Connectors. The Connector Overview appears.

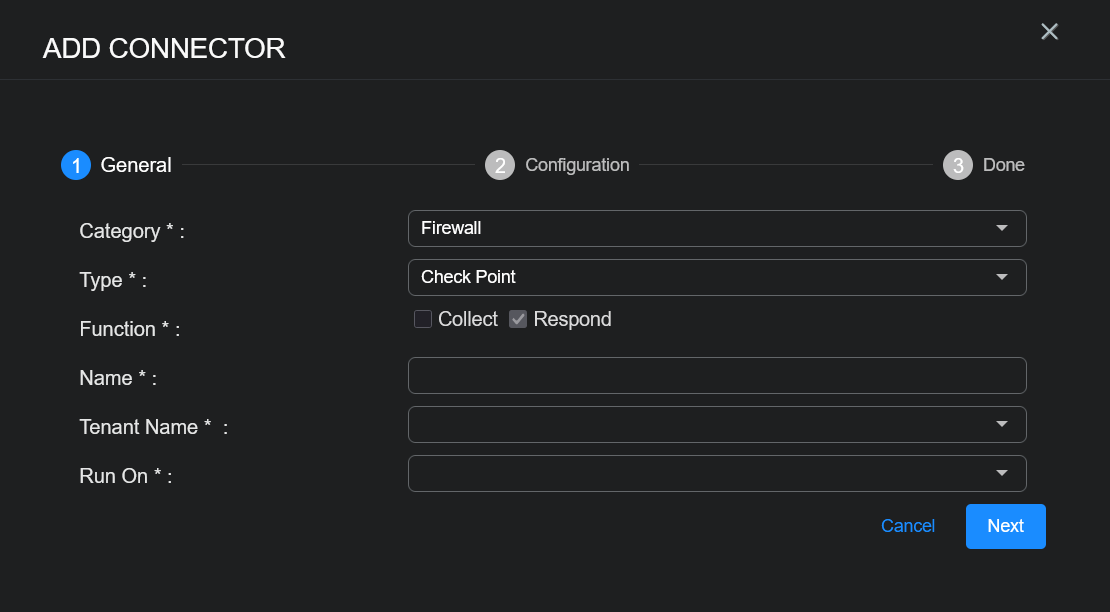

  3. Click Create. The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

  4. Choose Firewall from the Category drop-down.

  5. Choose Checkpoint from the Type drop-down.

  6. For this connector, the supported Function is Respond, which is enabled already.

  7. Enter a Name.

    This field does not accept multibyte characters.

  8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

  9. Choose the device on which to run the connector.

    • Certain connectors can be run on either a Sensor or a Data Processor. The available devices are displayed in the Run On menu. If you want to associate your collector with a sensor, you must have configured that sensor prior to configuring the connector or you will not be able to select it during initial configuration. If you select Data Processor, you will need to associate the connector with a Data Analyzer profile as a separate step. That step is not required for a sensor, which is configured with only one possible profile.

    • If the device you're connecting to is on premises, we recommend you run on the local sensor. If you're connecting to a cloud service, we recommend you run on the DP.

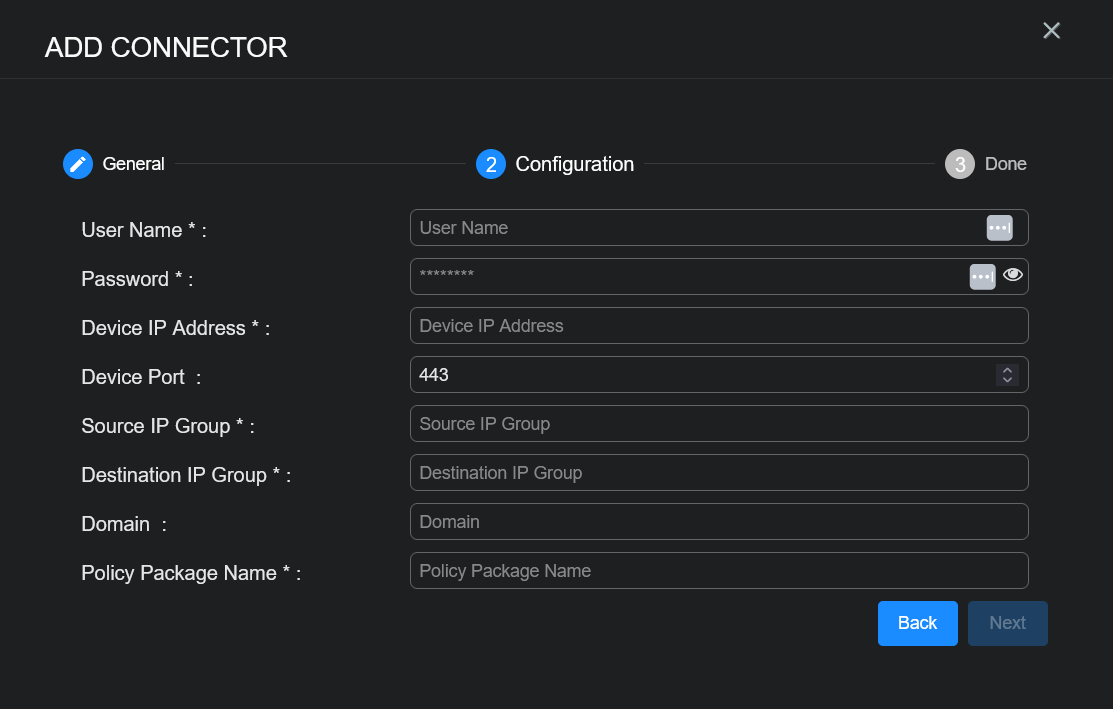

  10. Click Next. The Configuration tab appears.

  11. Enter the User Name to log in to the firewall.

  12. Enter the Password to log in to the firewall.

  13. Enter the Device IP Address of the Check Point firewall instance.

  14. Enter the Device Port, for example 443.

  15. Enter the Source IP Group to which to add the IP address.

  16. Enter the Destination IP Group to which to add the IP address.

  17. Enter the Domain.

  18. Enter the Policy Package Name.

  19. Click Next. The final confirmation tab appears.

  20. Click Submit.

The new firewall connector is immediately active.

Testing the Connector

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates only the authentication / connectivity; it does not validate data flow).

  1. Click System | Integrations | Connectors. The Connector Overview appears.

  2. Locate the connector that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:
