Managing Firewall Actions

The Respond | Actions | Firewall Actions tab displays the firewall actions taken manually from the Event Display or automatically by Automated Threat Hunting. The rules pushed from Stellar Cyber can tell the firewall to block network traffic that is suspected (or proved) to be a security breach. The rules can be temporary or permanent. This page displays the firewall actions taken by Stellar Cyber, and allows you to add and revert actions.

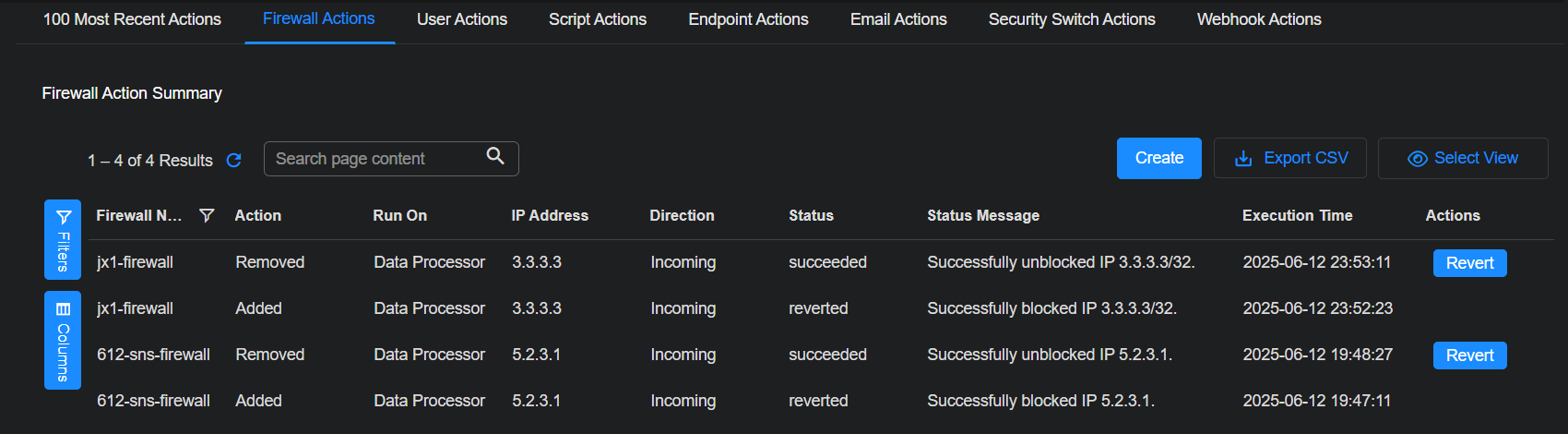

Firewall Actions Table

The Firewall Actions table displays all of the firewall rules enacted by Stellar Cyber.

The Status can be:

• Waiting—The action is queued. This should take less than a minute.
• In Progress—The action is being communicated to the firewall.
• Succeeded—The action was successfully implemented on the firewall.
• Failed—The action failed.
• Expiring—The action is being removed from the firewall.
• Expired—The action is no longer active.

You can view status details in the Status Message.

On the Firewall Actions table you can:

• Click Create to add a new firewall action.
• Click Revert to revert the action.

Stellar Cyber does not automatically delete rules when they expire. Sort the table by execution time to see which rules are in effect and which can be reverted.

See the Tables page for more information on working with tables.

Adding a Firewall Action

To add a firewall action:

1. Click the Create button. The ADD FIREWALL ACTION screen appears.

2. Choose a Firewall Name from the drop-down.The dropdown contains all firewalls configured in your Stellar Cyber system. If you don't see a firewall you need, add the firewall to Stellar Cyber.

3. Choose an Action. We chose Add. You can choose:

   • Add—adds the rule to the firewall

   • Remove—removes the rule from the firewall

4. Enter the IP Address affected by the rule.

5. Choose the Direction.

6. Set the Duration. You can choose any number of Minutes, Hours, Days, or Forever.

7. Click Submit. The action goes into effect immediately and appears in the Firewall Actions table.

You can also add firewall actions from the Event Display.

Reverting a Firewall Action

To disable a firewall action, click the Revert button.

A new row for the rule is added to the table, with the action of Added. The progress of the rule update to the firewall is reported in the Status column. Use the Refresh button to monitor progress. A Status Message of Success is reported when the rule update is completed.

You cannot revert (or edit) a failed action. If the action failed, you must recreate the action.
