Configuring Imperva Incapsula Connectors

This connector allows Stellar Cyber to ingest logs from Imperva Incapsula and add the records to the data lake. It integrates the log files (including security logs and access logs) that are downloaded from the Imperva log repository to the Stellar Cyber Data Processor.

The availability of this feature depends on your subscription. For subscription plans, contact an Imperva sales representative.

Connector Overview: Imperva Incapsula

Capabilities

  • Collect: Yes

  • Respond: No

  • Native Alerts Mapped: No

  • Runs on: DP

  • Interval: Configurable

Collected Data

Content Type

Index

Locating Records

N/A

Syslog

msg_class:

imperva_access_logs

imperva_security_logs

msg_origin.source:

imperva

msg_origin.vendor:

incapsula

msg_origin.category:

waf

Domain

<Log Server URL>

where <Log Server URL> is a variable from the configuration of this connector

Response Actions

N/A

Third Party Native Alert Integration Details

N/A

Required Credentials

  • Log Server URL, API ID and API Key generated by a user with the following permissions: Manage users and permissions, Manage API keys

               Let us know if you find the above overview useful.

Adding a Imperva Incapsula Connector

To add a Imperva Incapsula connector:

  1. Obtain credentials
  2. Add the connector in Stellar Cyber
  3. Test the connector
  4. Verify ingestion

Obtaining Imperva Incapsula Credentials

Before you configure the connector in Stellar Cyber, you must obtain the following Imperva Incapsula credentials:

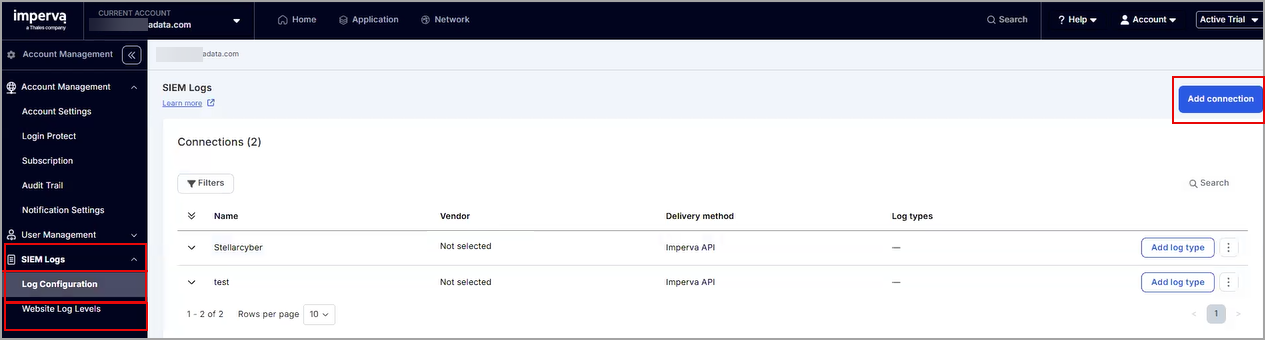

  • Log Server URL. This is the URL of the Imperva log repository in the Imperva cloud. It is displayed in the Imperva Cloud Security Console Log Setup page.

  • API ID and API Key. See the following procedure.

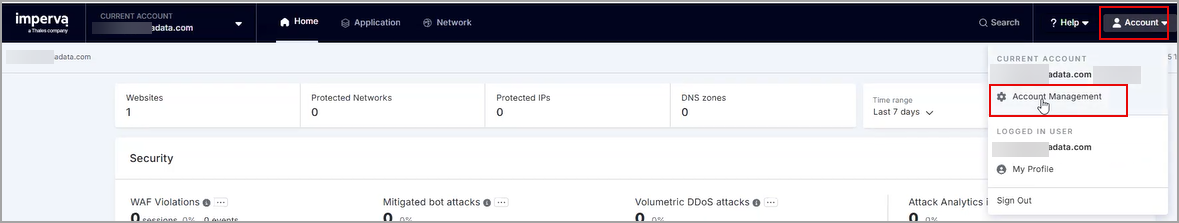

Log in to your my.imperva.com account as an account administrator (or a user with permissions to manage API keys). The permissions are: Manage users and permissions and Manage API keys.

Follow guidance on Imperva documentation to create an API ID and key.

  1. In the Cloud Security Console, open the Account Users page. For details, see Account Users.

  2. Select a user row to open Settings.

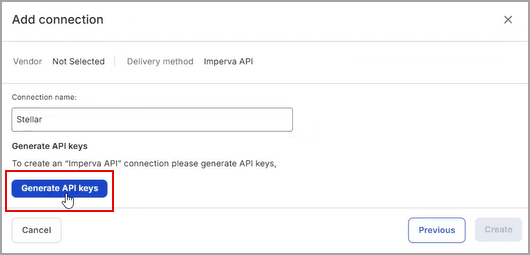

  3. Click Add API Key to generate the API ID and Key.

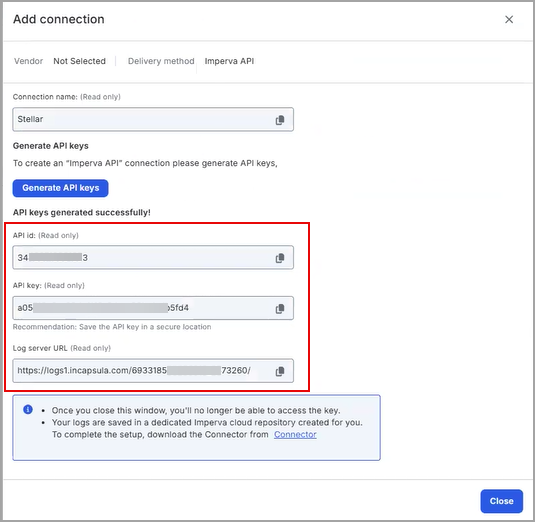

  4. From the popup window, copy the generated API ID and key, which will be used to add the connector in Stellar Cyber.

    Store the API ID and key in a safe location. They cannot be retrieved later although they can be regenerated.

Adding the Connector in Stellar Cyber

To add a Imperva Incapsula connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | Integration | Connectors. The Connector Overview appears.

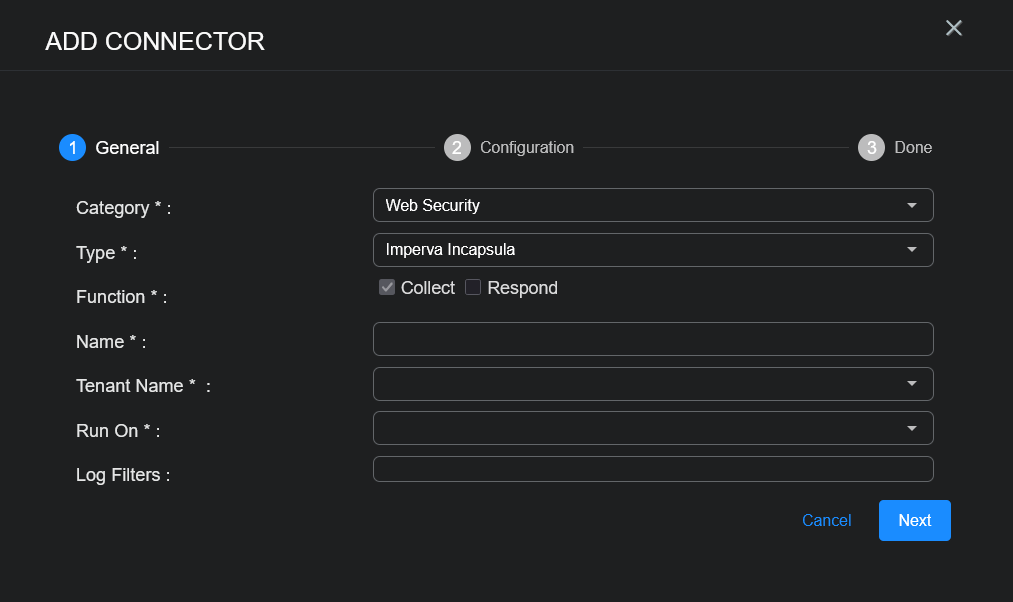

  3. Click Create. The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

  4. Choose Web Security from the Category drop-down.

  5. Choose Imperva Incapsula from the Type drop-down.

  6. For this connector, the supported Function is Collect, which is enabled already.

  7. Enter a Name.

    This field does not accept multibyte characters.

  8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

  9. Choose the device on which to run the connector.

    • Certain connectors can be run on either a Sensor or a Data Processor. The available devices are displayed in the Run On menu. If you want to associate your collector with a sensor, you must have configured that sensor prior to configuring the connector or you will not be able to select it during initial configuration. If you select Data Processor, you will need to associate the connector with a Data Analyzer profile as a separate step. That step is not required for a sensor, which is configured with only one possible profile.

    • If the device you're connecting to is on premises, we recommend you run on the local sensor. If you're connecting to a cloud service, we recommend you run on the DP.

  10. (Optional) When the Function is Collect, you can create Log Filters. For information, see Managing Log Filters.

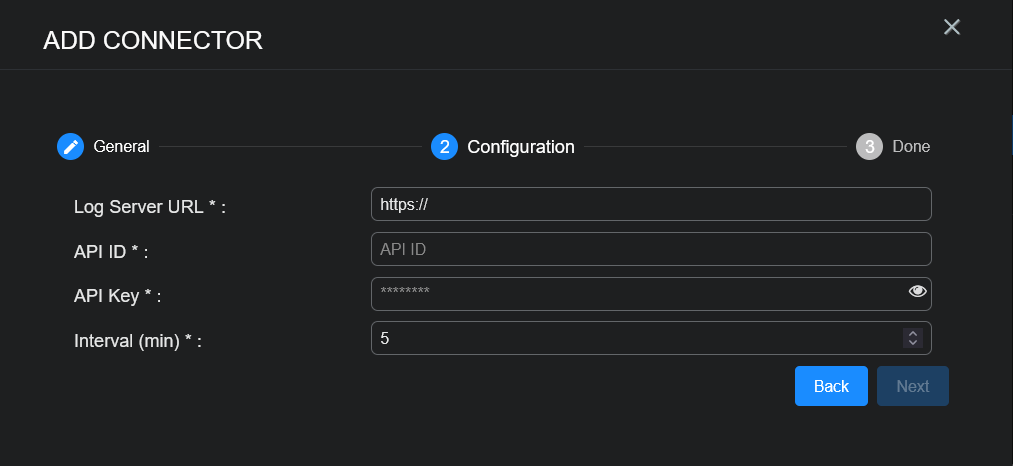

  11. Click Next. The Configuration tab appears.

  12. Enter the Log Server URL.

  13. Enter the API ID you obtained earlier.

  14. Enter the API Key you obtained earlier.

  15. Choose the Interval (min). This is how often Stellar Cyber checks the Imperva log server for new files to download.

  16. Click Next. The final confirmation tab appears.

  17. Click Submit.

    To pull data, a connector must be added to a Data Analyzer profile if it is running on the Data Processor.

  18. If you are adding rather than editing a connector with the Collect function enabled and you specified for it to run on a Data Processor, a dialog box now prompts you to add the connector to the default Data Analyzer profile. Click Cancel to leave it out of the default profile or click OK to add it to the default profile.

    • This prompt only occurs during the initial create connector process when Collect is enabled.

    • Certain connectors can be run on either a Sensor or a Data Processor, and some are best run on one versus the other. In any case, when the connector is run on a Data Processor, that connector must be included in a Data Analyzer profile. If you leave it out of the default profile, you must add it to another profile. You need the Administrator Root scope to add the connector to the Data Analyzer profile. If you do not have privileges to configure Data Analyzer profiles, a dialog displays recommending you ask your administrator to add it for you.

    • The first time you add a Collect connector to a profile, it pulls data immediately and then not again until the scheduled interval has elapsed. If the connector configuration dialog did not offer an option to set a specific interval, it is run every five minutes. Exceptions to this default interval are the Proofpoint on Demand (pulls data every 1 hour) and Azure Event Hub (continuously pulls data) connectors. The intervals for each connector are listed in the Connector Types & Functions topic.

    The Connector Overview appears.

The new connector is immediately active.

Testing the Connector

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates only the authentication / connectivity; it does not validate data flow).

  1. Click System | Integrations | Connectors. The Connector Overview appears.

  2. Locate the connector that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:



Verifying Ingestion

To verify ingestion:

  1. Click Investigate | Threat Hunting. The Interflow Search tab appears.
  2. Change the Indices to Syslog. The table immediately updates to show ingested Interflow records.
