Configuring SonicWall Firewall Connectors

You can connect Stellar Cyber to firewalls so that you can quickly and easily implement firewall rules on those firewalls from within Stellar Cyber, while you are threat hunting. You can configure firewall actions or manually trigger a firewall action from the event display. For either action you must already have your firewall connected.

Connector Overview: SonicWall Firewall

Capabilities

  • Collect: No

  • Respond: Yes

  • Native Alerts Mapped: No

  • Runs on: DP or Sensor

  • Interval: N/A

Collected Data

N/A

Domain

https://<Device IP Address>:<Device Port>

where <Device IP Address> and <Device Port> are variables from the configuration of this connector

Response Actions

Action

Required Fields

Block IP

srcip or dstip

Third Party Native Alert Integration Details

N/A

Required Credentials

  • User Name, Password, Device IP Address, Device Port, Source IP Group, Destination IP Group, and External Zone

               Let us know if you find the above overview useful.

Adding a SonicWall Firewall Connector

To add a new SonicWall firewall connector:

  1. Configure SonicWall:

  2. Enable and test the connector in Stellar Cyber:

    1. Add the connector in Stellar Cyber
    2. Test the connector
    3. Verify ingestion

Configuring SonicWall

Configuration in SonicWall v7.0

ClosedTo enable integration using the v7.0 version of SonicWall:

  1. Log in to your SonicWall firewall.
  2. Navigate to the Device tab from the top of the console.

  3. From the left side navigation, select Firewall > Settings > Administration.

  4. On the pane that displays, select the tab for Audit / SonicOS API.

  5. In the section for SONICOS API, toggle the following options as indicated:

    • SonicOS API: ON

    • CHAP authentication: ON

    • RFC-2617 HTTP Basic Access authentication: ON

    • Session security using RFC-7616 Digest authentication: OFF

  6. Click Accept.

  7. Ensure the following are also configured on the server:

    1. Navigate to Device > Local Users & Groups > Local Groups > Edit User Group.

    2. Ensure that the group for the user you will be configuring has the following setting enabled.

    3. In the event of multiple administrators, when there is preemption by another admin, the user should drop to non-config mode. You can configure this option in the following location: Device > Administration > Login / Multiple Administrators:

      Only one session can run using the provided credentials. If a user logs into the console through the browser, it impacts the connector. So if a user logs into the console, they should drop to non-config mode.

Creating SonicWall Address Object Groups

The address groups must contain only IPv4 addresses.

  1. Log in to your SonicWall firewall.

  2. Navigate to the Object tab on the top of the console.

  3. From the left side navigation, select Match Objects > Addresses.

  4. In the pane that displays, ensure the Address Object sub-tab is displayed, then click Add.

  5. In the Address Object Settings dialog, enter the following:

    1. Name: 0.0.0.0_LAN

    2. Zone Assignment: LAN

    3. Type: Host

    4. IP Address: 0.0.0.0

  6. Click Save.

  7. Click Add again to repeat this and add a WAN configuration:

    1. Name: 0.0.0.0_WAN

    2. Zone Assignment: WAN

    3. Type: Host

    4. IP Address: 0.0.0.0

  8. Click Save.

  9. Click the sub-tab for Address Groups and select the Add button.

  10. In the Add Address Groups dialog, do the following:

    1. Set the Name to Stellar_src_group.

    2. Locate and select the 0.0.0.0_WAN you just configured from the Not In Group list and click the right arrow to add it to the In Group list.

  11. Click Save.

  12. Click Add again. The Add Address Object Group screen appears.

  13. Enter the following:

    1. Set the Name to Stellar_dst_group.

    2. Locate and select the 0.0.0.0_LAN you just configured from the Not In Group list and click the right arrow to add it to the In Group list.

  14. Click Save.

Creating SonicWall Access Rules

To create SonicWall access rules:

  1. Log in to your SonicWall firewall.

  2. Navigate to the Policy tab on the top of the console.

  3. From the left side navigation, select Rules and Policies > Access Rules. The existing rules are displayed in a new pane on the right.

  4. From the bottom of the new pane, click the Add button.

  5. In the Adding Rule dialog, configure the rule as follows:

    • Name : Stellar_dst_rule

    • Action : Deny

    • SOURCE:

      • Zone / Interface: LAN

      • Address: Any

      • Port/Services: Any

    • DESTINATION:

      • Zone / Interface: WAN

      • Address: Stellar_dst_group

      • Port/Services: Any

  6. Click Add.

  7. Click Add again to configure a rule for the source group.

  8. Enter the following:

    • Name : Stellar_src_rule

    • Action :  Deny

    • SOURCE:

      • Zone / Interface: WAN

      • Address: Any

      • Port/Services: Any

    • DESTINATION:

      • Zone / Interface: LAN

      • Address: Stellar_src_group

      • Port/Services: Any

  9. Click Add.

  10. Confirm the rules are entered by searching for Stellar in the search dialog in the Access Rules pane.

Configuration in Sonicwall v6.x:

ClosedTo enable integration using previous releases of SonicOS:

  1. Log in to your SonicWall firewall.

  2. Click Manage. The management dashboard appears.

  3. Under System Settings, click Appliance | Base Settings.

    The firewall settings page appears.

  4. Scroll down to SonicOS API.

  5. Click Enable SonicOS API.

  6. Enable RFC-7616, CHAP, and RFC-2617.

  7. Click Accept.

The API is now enabled.

Creating SonicWall Address Object Groups

The address groups must contain only IPv4 addresses.

To create SonicWall address object groups:

  1. Log in to your SonicWall firewall.

  2. Click Manage. The management dashboard appears.

  3. Under Policies, click Objects | Address Objects.

    The existing address objects appear.

  4. Click Add. The Add Address Object screen appears.

  5. Enter the following:

    1. Name: 0.0.0.0_LAN

    2. Zone Assignment: LAN

    3. Type: Host

    4. IP Address: 0.0.0.0

  6. Click OK.

  7. Click Add again. The Add Address Object screen appears.

  8. Enter the following:

    1. Name: 0.0.0.0_WAN

    2. Zone Assignment: WAN

    3. Type: Host

    4. IP Address: 0.0.0.0

  9. Click OK.

  10. Click Address Groups.

  11. Click Add. The Add Address Object Group screen appears.

  12. Enter the following:

    1. Name: Stellar_src_group

    2. In Group: 0.0.0.0_WAN

  13. Click OK.

  14. Click Add again. The Add Address Object Group screen appears.

  15. Enter the following:

    1. Name: Stellar_dst_group

    2. In Group: 0.0.0.0_LAN

  16. Click OK.

Creating SonicWall Access Rules

To create SonicWall access rules:

  1. Log in to your SonicWall firewall.
  2. Click Manage. The management dashboard appears.

  3. Under Policies, click Rules | Access Rules.

    The existing rules appear.

  4. Click Add. The Add Rule screen appears.

  5. Enter the following:

    1. Policy Name: Stellar_dst_rule

    2. Action: Deny

    3. From: LAN

    4. To: WAN

    5. Source Port: Any

    6. Service: Any

    7. Source: Any

    8. Destination: Stellar_dst_group

  6. Click Add.
  7. Click Add again. The Add Rule screen appears.

  8. Enter the following:
    1. Policy Name: Stellar_src_rule
    2. Action: Deny
    3. From: WAN
    4. To: LAN
    5. Source Port: Any
    6. Service: Any
    7. Source: Stellar_src_group
    8. Destination: Any
  9. Click Add.

Adding the Connector in Stellar Cyber

To add the SonicWall Firewall connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | Integration | Connectors. The Connector Overview appears.

  3. Click Create. The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

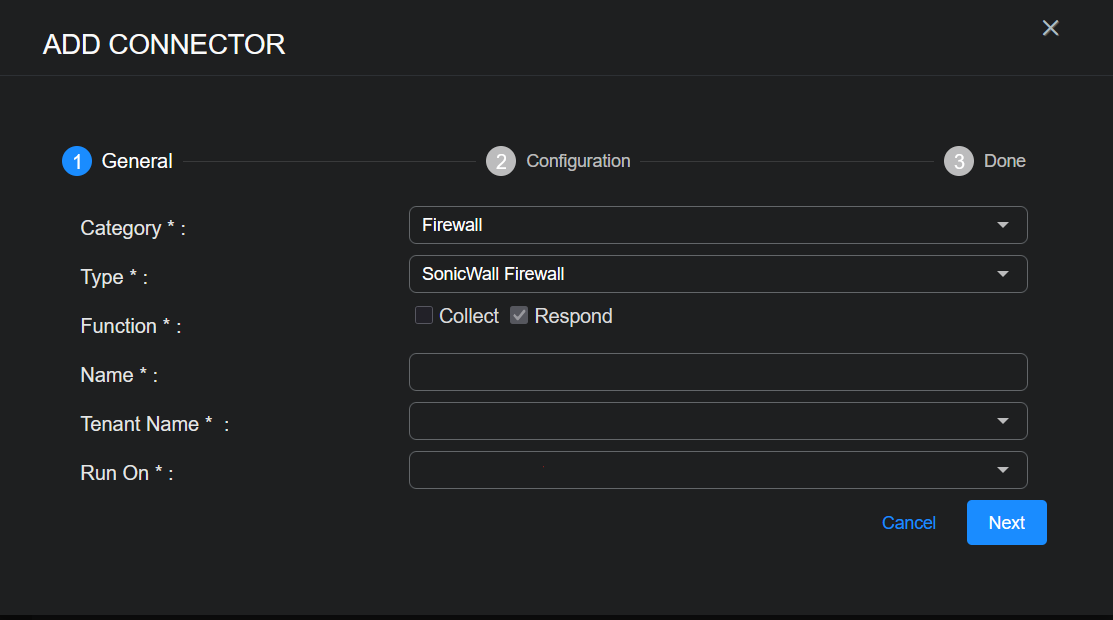

  4. Choose Firewall from the Category drop-down.

  5. Choose SonicWall Firewall from the Type drop-down.

  6. For this connector, the supported Function is Respond, which is enabled already.

  7. Enter a Name.

    This field does not accept multibyte characters.

  8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

  9. Choose the device on which to run the connector.

    • Certain connectors can be run on either a Sensor or a Data Processor. The available devices are displayed in the Run On menu. If you want to associate your collector with a sensor, you must have configured that sensor prior to configuring the connector or you will not be able to select it during initial configuration. If you select Data Processor, you will need to associate the connector with a Data Analyzer profile as a separate step. That step is not required for a sensor, which is configured with only one possible profile.

    • If the device you're connecting to is on premises, we recommend you run on the local sensor. If you're connecting to a cloud service, we recommend you run on the DP.

  10. Click Next. The Configuration tab appears.

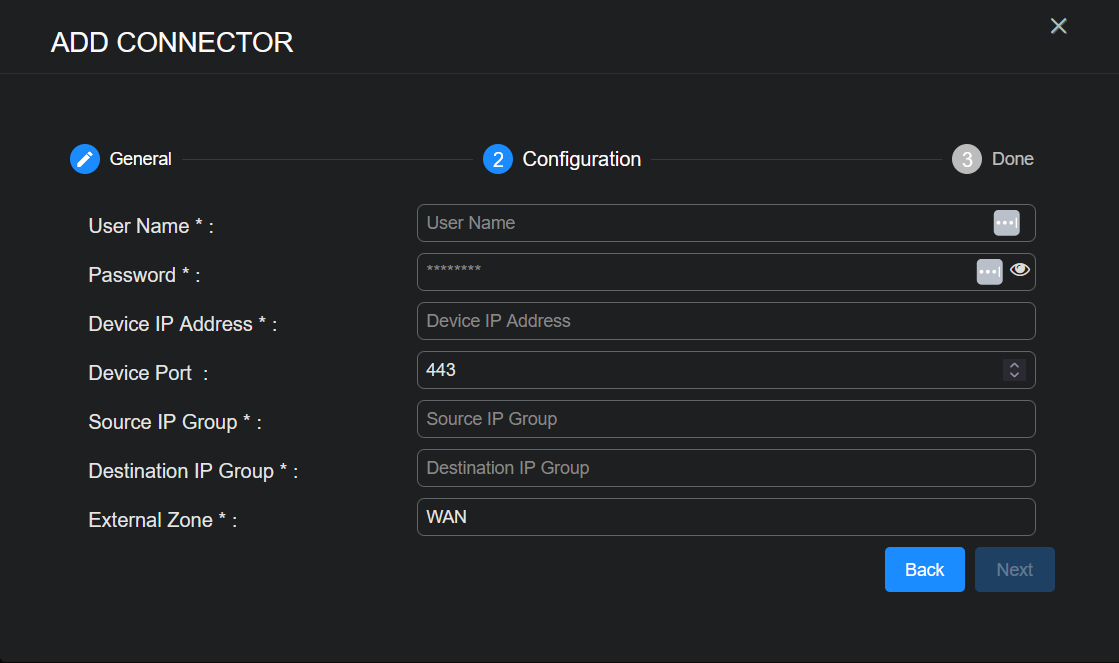

  11. Enter the User Name to log in to the firewall.

  12. Enter the Password to log in to the firewall.

  13. Enter the Device IP Address.

  14. Enter the Device Port. The default is 443.

  15. Enter the Source IP Group that you created earlier. Our example uses Stellar_src_group.

  16. Enter the Destination IP Group that you created earlier. Our example uses Stellar_dst_group.

  17. Enter the External Zone. This example uses WAN.

  18. Click Next. The final confirmation tab appears.

  19. Click Submit.

The new firewall connector is immediately active.

Testing the Connector

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates only the authentication / connectivity; it does not validate data flow).

  1. Click System | Integrations | Connectors. The Connector Overview appears.

  2. Locate the connector that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:



Verifying Ingestion

To verify ingestion:

  1. Click Investigate | Threat Hunting. The Interflow Search tab appears.
  2. Search for msg_origin.source: sonicfw. The table immediately updates to show ingested Interflow records.
