Configuring Trellix (FireEye) Endpoint Security HX Connectors

This connector allows Stellar Cyber to ingest logs from FireEye (Trellix) HX and add the records to the data lake.

Connector Overview: Trellix (FireEye) Endpoint Security HX

Capabilities

  • Collect: Yes

  • Respond: No

  • Native Alerts Mapped: Yes

  • Runs on: DP

  • Interval: Configurable

Collected Data

Content Type

Index

Locating Records

Alerts

Hosts

Hosts Sets

  • All content type goes to Syslog index.

  • Hosts content also goes to Assets index.

  • Alerts content is mapped from Syslog to the Alerts index as noted below.

msg_class:

fireeye_alerts

fireeye_hosts

fireeye_host_sets

msg_origin.source:

fireeye_hx

msg_origin.vendor

fireeye

msg_origin.category:

endpoint

Domain

https://<Hostname>

where <Hostname> is a variable from the configuration of this connector

Response Actions

N/A

Third Party Native Alert Integration Details

Stellar Cyber identifies the FireEye data logged into the Syslog index. Records of the type Alerts are then normalized, enriched, and mapped to the Alerts index. The following fields are included as part of the Stellar Cyber alert description: indicator.name and agent.url. Each relevant Syslog record is compared against existing records in the Alert index and not added to that index if the values in the following fields match those of an existing record logged in the previous 24 hours: org_id, tenantid, user.name, host.ip, event.name, file.path, process.path.

The following four alert types are supported: IOC, MAL, AMSI, and PROCGUARD. Tactic and Technique are based on alert type.

For details, see Integration of Third Party Native Alerts.

Required Credentials

  • Hostname: This is your Trellix (FireEye) Endpoint Security HX host.

  • ID: This is the username with at least api_analyst role.

  • Password: This is the password for the above user.

               Let us know if you find the above overview useful.

Adding a Trellix (FireEye) Endpoint Security HX Connector

To add a Trellix (FireEye) Endpoint Security HX connector:

  1. Obtain credentials
  2. Add the connector in Stellar Cyber
  3. Test the connector
  4. Verify ingestion

Obtaining your Trellix (FireEye) Endpoint Security HX Credentials

Configuring your Stellar Cyber connector requires the following details from your HX deployment:

  • Hostname: This is your HX host. Example: hexbyd438-hx-webui-1.hex01.helix.apps.fireeye.com.

  • ID: This is the username at least api_analyst role. (Refer to: https://fireeye.dev/docs/endpoint/authentication/) for guidance creating this user and password).

  • Password: This is the password for the above user.

Adding the Connector in Stellar Cyber

With the access information handy, you can add the Trellix (FireEye) Endpoint Security HX connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | Integration | Connectors. The Connector Overview appears.

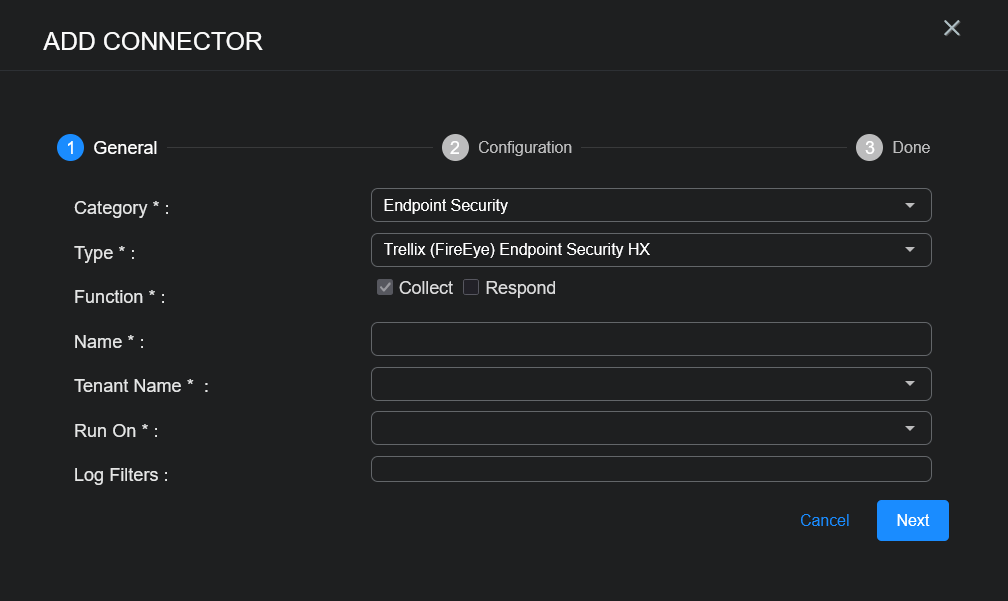

  3. Click Create. The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

  4. Choose Endpoint Security from the Category drop-down.

  5. Choose Trellix (FireEye) Endpoint Security HX from the Type drop-down.

  6. For this connector, the supported Function is Collect, which is enabled already.

  7. Enter a Name.

    This field does not accept multibyte characters.

  8. Choose a Tenant Name. This identifies which tenant is allowed to use the connector.

  9. Choose the device on which to run the connector.

    • Certain connectors can be run on either a Sensor or a Data Processor. The available devices are displayed in the Run On menu. If you want to associate your collector with a sensor, you must have configured that sensor prior to configuring the connector or you will not be able to select it during initial configuration. If you select Data Processor, you will need to associate the connector with a Data Analyzer profile as a separate step. That step is not required for a sensor, which is configured with only one possible profile.

    • If the device you're connecting to is on premises, we recommend you run on the local sensor. If you're connecting to a cloud service, we recommend you run on the DP.

  10. (Optional) When the Function is Collect, you can create Log Filters. For information, see Managing Log Filters.

  11. Click Next. The Configuration tab appears.

  12. Enter the Hostname using the information you noted above.

    Do not include https in the Hostname.

  13. Enter the ID you noted above.

  14. Enter the Password for this ID.

  15. Choose the Interval (min). This is how often the logs are collected.

    Interval configuration applies to the Alerts content type. The data for Hosts and Host Sets are pulled every 24 hours.

  16. Choose the Content Type. The logs for Alerts, Host Sets, and Hosts are supported.

  17. Click Next. The final confirmation tab appears.

  18. Click Submit.

    To pull data, a connector must be added to a Data Analyzer profile if it is running on the Data Processor.

  19. If you are adding rather than editing a connector with the Collect function enabled and you specified for it to run on a Data Processor, a dialog box now prompts you to add the connector to the default Data Analyzer profile. Click Cancel to leave it out of the default profile or click OK to add it to the default profile.

    • This prompt only occurs during the initial create connector process when Collect is enabled.

    • Certain connectors can be run on either a Sensor or a Data Processor, and some are best run on one versus the other. In any case, when the connector is run on a Data Processor, that connector must be included in a Data Analyzer profile. If you leave it out of the default profile, you must add it to another profile. You need the Administrator Root scope to add the connector to the Data Analyzer profile. If you do not have privileges to configure Data Analyzer profiles, a dialog displays recommending you ask your administrator to add it for you.

    • The first time you add a Collect connector to a profile, it pulls data immediately and then not again until the scheduled interval has elapsed. If the connector configuration dialog did not offer an option to set a specific interval, it is run every five minutes. Exceptions to this default interval are the Proofpoint on Demand (pulls data every 1 hour) and Azure Event Hub (continuously pulls data) connectors. The intervals for each connector are listed in the Connector Types & Functions topic.

    The Connector Overview appears.

The new connector is immediately active.

Testing the Connector

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates only the authentication / connectivity; it does not validate data flow).

  1. Click System | Integrations | Connectors. The Connector Overview appears.

  2. Locate the connector that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:



Verifying Ingestion

To verify ingestion:

  1. Click Investigate | Threat Hunting. The Interflow Search tab appears.
  2. Change the Indices to Syslog or Assets. The table immediately updates to show ingested Interflow records.
